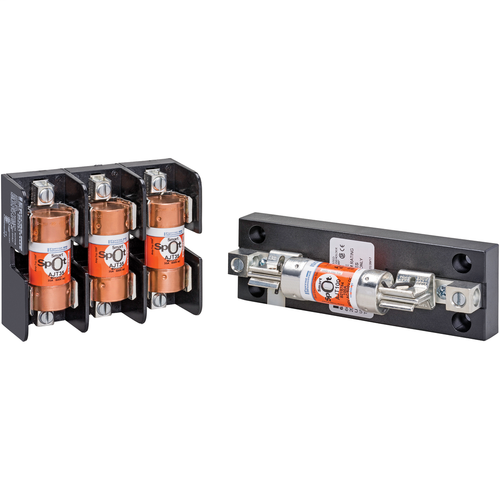

Mersen Class J Fuse Base, 600V 30A Tin-Plated Box Connector

(No reviews yet) Write a Review

Model: 60301J

In Stock (leaves warehouse same day if ordered before 3pm ET)

$51.84
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Mersen Class J Fuse Base, 600V 30A Tin-Plated Box Connector

The Mersen Class J Fuse Base is a 600V, 30A fuseholder engineered for AJT, A4J, and HSJ Class J fuses in industrial and commercial power distribution. Its glass-filled polycarbonate (GFPC) insulating body delivers verified dielectric strength in excess of 2500V, while box-style wire connectors accept a wide range of stranded or solid copper or aluminum conductors. Backed by UL Listing and CSA Certification with a 200kA short-circuit current rating, this fuse base is built for demanding, code-compliant electrical installations.

Key Features

  • Ampere Rating: 30A max fuse rating sized for Class J fuses including AJT, A4J, and HSJ types.
  • Durable Construction: Glass-filled polycarbonate (GFPC) insulating body with dielectric strength exceeding 2500V for reliable isolation.
  • Wire Connections: Box-style connectors accommodate stranded or solid copper or aluminum conductors.
  • Voltage Rating: Rated 600V AC/DC for demanding industrial and commercial circuits.
  • Fuse Installation: Clip-in design with high-conductivity tin-plated copper fuse clips for secure fuse retention.
  • Torque Rating: 35 lb-in specified torque for consistent, code-compliant terminations.
  • Operating Temperature: Rated from -25°C to 80°C for storage and operation.
  • Short-Circuit Current Rating: 200kA SCCR supports high fault-current applications.

Certifications & Compliance

  • UL Listed, Guide IZLT, File E52283
  • Meets UL4248 (formerly UL512) requirements for Class J fuse blocks
  • CSA Certified, Class 6225, File 32169

Technical Specifications

  • Wire Connections: Box
  • Country of Origin: MX
  • Rated Voltage: 600V AC/DC
  • Ampere Rating: 30A
  • Body Insulating Material: GFPC
  • Torque Rating: 35 lb-in
  • Short Circuit Current Rating (SCCR): 200kA
  • Fuse Installation Method: Clip-in

Typical Applications

  • Industrial Power Distribution Panels
  • Motor Control Centers
  • Class J Fuse Protection Circuits
  • Commercial and Industrial Electrical Installations
  • Panelboard and Switchboard Wiring

Why Mersen?

Mersen Class J fuse bases combine a GFPC insulating body, high-conductivity tin-plated copper fuse clips, and a 200kA SCCR to deliver reliable, code-compliant fuse protection. With UL Listing and CSA Certification backing every unit, these fuse bases are built for professional electrical work where dependable short-circuit protection and secure box-style terminations are essential.

Manufacturer Resources

Product Specs

Rated Voltage Dc Ul:
600 V
Torque Rating:
35 lb-in
Ampere Rating:
30 A
Body Insulating Material:
GFPC
Max Operating Temp:
80 °C
Max Storage Temp:
80 °C
Wire Connections:
Box
Product Line:
Class J Fuseholders - Class J
Frequency Hz:
50/60 Hz
Installation Mounting:
Direct Screw Mount
Max Fuse Rating:
30 A
Fuse Installation Method:
Clip-in
Rated Voltage Ac Ul:
600 V
Country Of Origin:
MX
Min Storage Temp:
-25 °C
Short Circuit Current Rating Sccr:
200 kA
Country of Origin:
MEX
Spec Sheet:
https://media.distributordatasolutions.com/xlsx_mersen/2021q1/documents/400a6dae59ea1e8095deffd8a4d9ba6f1a277800.pdf
list_batch:
MERSEN-20260825
Product Type:
Connector
Department:
Electrical
Product Group:
Wiring Devices
