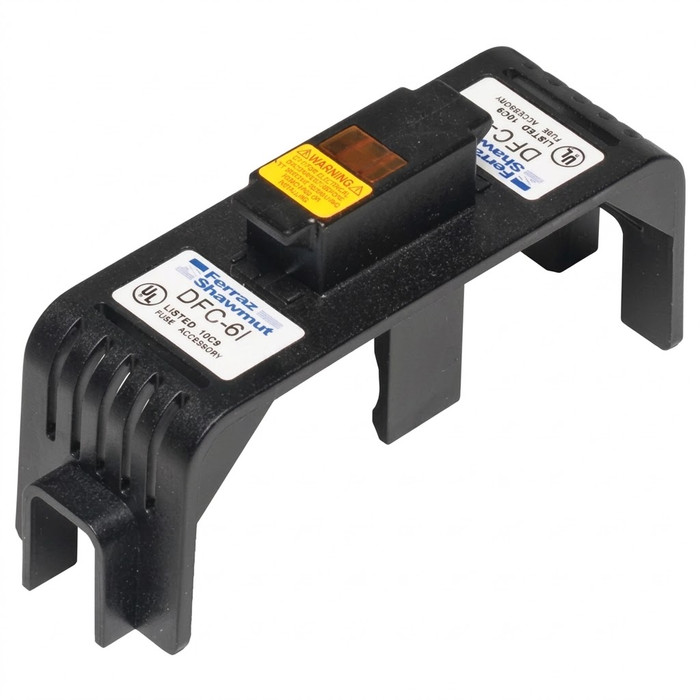

Mersen DFC Series Class J Dead-Front Fuse Cover, 600VAC, 60A, LED Indicator
The Mersen DFC Series dead-front fuse cover snaps directly onto individual fuses installed in fuse blocks, shielding exposed live clips and terminals to reduce the risk of accidental contact by personnel. Rated 600VAC / 600V DC UL and built for 1-Pole, 60A applications, this DFC cover is sized to fit Class G, H, J, K, R, CC, or midget fuses and includes an LED indication system that illuminates orange when the fuse has opened. A blank label is provided with each cover so technicians can record circuit or fuse information at a glance.
Key Features
- Dead-Front Safety Design: Fully covers exposed live fuse clips and terminals to reduce the chance of accidental personnel contact.
- Universal Fuse Fit: Sized to accommodate Class G, H, J, K, R, CC, or midget fuses in standard fuse blocks.
- LED Open-Fuse Indication: Indication System Type is LED; an orange indicator light illuminates to signal an open fuse, speeding fault diagnosis.
- Reusable Construction: Simply detach from an open fuse and reattach to its replacement, eliminating the need to purchase a new cover with every fuse change.
- Field-Trimmable Ends: Cover ends can be cut to accommodate existing wiring, safety switches, or special installation conditions.
- Electrical Rating: 600VAC / 600V DC UL rated voltage with a 60A ampere rating and 1-Pole configuration.
- Labeling Provision: Includes a blank label on each unit for writing in circuit or fuse identification.
Technical Specifications
- Indication System Type: LED
- Indication System: Yes
- Ampere Rating: 60 A
- Rated Voltage DC UL: 600 V
- Rated Voltage AC UL: 600 V
- Number of Poles: 1-Pole
- Packaging: 3 EA
Typical Applications
- Fuse Blocks and Fusible Disconnect Assemblies
- Panelboards and Motor Control Centers
- Industrial and Commercial Electrical Distribution
- Safety Switches Requiring Live-Part Coverage
- Renovation and New Construction Electrical Panels
Why Mersen?
Mersen's DFC Series dead-front fuse covers combine 600VAC / 600V DC UL rated construction with a reusable, field-trimmable design built for real-world panel maintenance. The LED open-fuse indication system helps electrical personnel quickly identify a blown fuse without removing protective covers, supporting safer, more efficient troubleshooting in Class G, H, J, K, R, CC, and midget fuse installations.
Manufacturer Resources
Mersen Product Catalog
Product Specs
- list_batch:
- MERSEN-20260825
- Product Type:
- Dead-Front Fuse Cover
- Voltage Rating:
- 600V
- Amperage Rating:
- 60A
- Configuration:
- 1-Pole
- Department:
- Electrical
- Product Group:
- Wiring Devices
- Product Subgroup:
- Class J Fuses
