Milbank 12x36x36 G90 Galvanize...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$2,333.47
$2,296.90

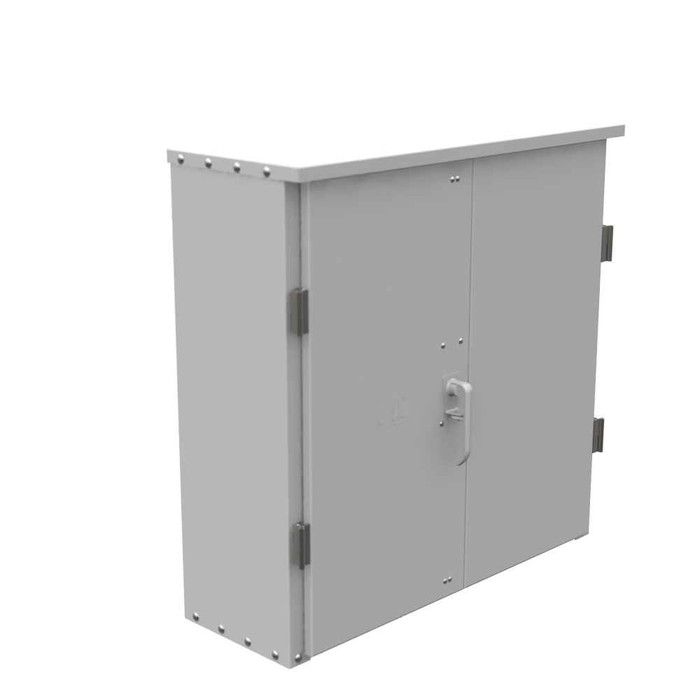

Milbank 12x36x36 G90 Galvanized Steel Hinge Cover, Type 3R, Double Door, Current Transformer Enclosure, ANSI 61 Gray

Milbank 12x36x36 G90 Galvanized Steel Current Transformer Enclosure with Double Door Type 3R NEMA Rating

(No reviews yet) Write a Review

Model: U1855-O-NE

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,333.47
$2,296.90
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 12x36x36 G90 Galvanized Steel Current Transformer Enclosure with Double Door Type 3R NEMA Rating

Professional Current Transformer Protection & Access Solution

The Milbank Current Transformer Enclosure delivers reliable protection for electrical metering equipment with G90 galvanized steel construction and powder coat finish in ANSI 61 Gray. This wall-mounted enclosure features Type 3R NEMA rating for outdoor applications, double door configuration for enhanced access, and integrated current transformer mounting rack with lugs for professional installations.

Professional Features & Benefits

  • 12x36x36 Dimensions: Provides ample space for current transformer installations while maintaining compact wall-mounted profile for versatile placement options.
  • Type 3R NEMA Rating: Ensures reliable protection against rain, sleet, and ice formation for dependable outdoor electrical service applications.
  • G90 Galvanized Steel Construction: Delivers superior corrosion resistance and structural integrity with powder coat finish for long-term durability in demanding environments.
  • Double Door Configuration: Facilitates convenient access for installation, maintenance, and inspection of current transformer equipment and connections.
  • Integrated Mounting Rack: Features current transformer mounting rack with lugs (3 per landing) for secure equipment installation and professional wire management.
  • UL Listed Certification: Meets rigorous safety and performance standards for reliable operation in commercial and utility electrical applications.
  • Lift Off Hinge Cover Design: Provides complete access removal capability for comprehensive maintenance and equipment service procedures.

Technical Specifications

  • Application: Current Transformer Enclosure
  • Back Panel: Ground Stud
  • Brand Name: Milbank
  • Cable Entry: No Knockouts
  • Departent: Electrical
  • Depth: 12
  • Door Or Cover: Double Door
  • Mounting Rack: Current Transformer Mounting Rack Installed with Lugs - 3 per Landing
  • Nema Rating: Type 3R
  • Product Color: ANSI 61 Gray
  • Product Family Code: CTEN
  • Product Height: 36 IN
  • Product Length: 12 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Wall Mount
  • Product Size: 12L x 36Wx 36H
  • Product Type: Hinge Cover
  • Special Features: Lift Off Hinge Cover; Northeast Utilities; Single Mechanical Line Side and Single Mechanical Load S
  • Standard: UL Listed
  • Unspsc Number: 39121319
  • Width: 36 IN

Professional Applications

  • Utility Current Transformer Installations
  • Commercial Electrical Metering Systems
  • Industrial Power Monitoring Applications
  • Multi-Unit Residential Properties
  • Municipal and Government Facilities
  • Educational Institution Power Systems
  • Healthcare Facility Electrical Infrastructure

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and G90 galvanized steel construction with powder coat finish for superior corrosion resistance. The Type 3R NEMA rating ensures dependable outdoor performance, while the integrated mounting rack system provides professional installation capability for demanding current transformer applications.

Manufacturer Resources

Product Specs

Application:
Current Transformer Enclosure
Back Panel:
Ground Stud
Brand Name:
Milbank
Cable Entry:
No Knockouts
Door Or Cover:
Double Door
Nema Rating:
Type 3R
Product Family Code:
CTEN
Product Height:
36 IN
Product Length:
12 IN
Product Size:
12L x 36Wx 36H
Product Type:
Hinge Cover
Standards:
UL Listed
Unspsc Number:
39121319
Product Color:
ANSI 61 Grey
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Wall Mount
Product Width:
36 IN
Product Depth:
12
Department:
Electrical
Product Subgroup:
Electrical
Product Group:
Metering & Service Entrance

Milbank U1855-O-NE – Frequently Asked Questions

1) Will the Milbank U1855-O-NE CT enclosure work outdoors on an exterior wall?
Yes. The U1855-O-NE current transformer enclosure carries a Type 3R NEMA rating, which covers outdoor service against rain, sleet and ice formation, and it is built for wall mounting. The shell is G90 galvanized steel with a powder coat finish in ANSI 61 grey, which is the standard exterior-grade combination for utility metering gear on a building wall.
2) How much wall space do I need for a Milbank 12x36x36 current transformer enclosure?
Plan for a 36 by 36 inch footprint on the wall with 12 inches of projection off it. The catalogued size is 12L x 36W x 36H inches, so the box stands 36 inches tall, spans 36 inches across, and comes 12 inches out from the mounting surface. Give yourself working clearance in front of that 12 inch depth, because both doors swing out.
3) Does the Milbank U1855-O-NE come with knockouts for conduit entry?
No knockouts. The U1855-O-NE ships as a blank box, so the installing electrician punches or hole-saws the conduit entries where the run actually lands. That is deliberate on a CT can: line and load conduit positions vary by service, and the utility usually dictates where they enter. Budget for hole punching tools and the right sealing fittings to keep the Type 3R rating intact after you cut.
4) Do I have to buy a separate mounting rack for the current transformers?
No, the rack is already in the box. The U1855-O-NE comes with the current transformer mounting rack installed, complete with lugs at three per landing. There is also a ground stud on the back panel. What you are buying separately is the CTs themselves, the conduit fittings, and the wall mounting anchors.
5) Is this Milbank CT cabinet approved for a Northeast Utilities service?
Yes, the U1855-O-NE is built to the Northeast Utilities specification, which is why the O-NE suffix is on the model number. If your service falls under a different utility's metering requirements, order the enclosure built to that utility's spec instead, because CT can approvals are utility by utility and an unapproved cabinet gets rejected at inspection.
6) What kind of line and load connections does this Milbank CT enclosure have?
Single mechanical line side and single mechanical load side. That means one mechanical lug landing per phase on each side, so it suits a single set of conductors in and a single set out. If your service brings in parallel conductor sets per phase, this configuration will not land them and you need a cabinet with multiple lugs per phase.
7) How do the doors open on the Milbank U1855-O-NE, and can I take the cover off completely?
It is a double door design with a lift off hinge cover, so both doors swing open for wiring and either can be lifted straight off the hinge pins for full, unobstructed access to the CT rack. That matters when you are setting transformers and dressing large line conductors in a 12 inch deep box, where a fixed door in the way costs you real time.
8) Is the Milbank current transformer enclosure UL Listed?
Yes, the U1855-O-NE is UL Listed. Between that and the Type 3R rating, it satisfies the two things an inspector and a facility electrical standard normally ask of an outdoor CT cabinet on a commercial service.
9) Will a galvanized CT enclosure hold up in a coastal or wash-down environment?
The U1855-O-NE uses G90 galvanized steel with a powder coat finish, which is the standard corrosion package for outdoor service equipment and handles ordinary weather exposure well. It is not stainless. For salt spray, chemical exposure, or regular hose-down, a Type 4X stainless or non-metallic enclosure is the right call rather than a painted galvanized 3R box, and note that Type 3R is a rain and ice rating, not a hose-directed-water rating.
10) What is the exact part number to order this Milbank CT enclosure on a purchase order?
Order Milbank U1855-O-NE. That is the full manufacturer part number for the 12 x 36 x 36 inch Type 3R current transformer enclosure with the double door and the Northeast Utilities configuration. The O-NE portion is the piece that identifies the utility build, so dropping it off the PO risks the wrong cabinet arriving.
11) Do I have to paint the Milbank CT cabinet to match the rest of the switchgear?
No paint needed in most cases. The enclosure arrives powder coated in ANSI 61 grey, the standard gear grey used across utility metering and switchboard equipment, so it lines up with existing service equipment on the wall without field finishing.
