Milbank 4 Terminal Ringless Meter Socket 150A 1 Phase 2 Position with Large Closing Plate

Professional dual-position metering solution for residential and commercial applications

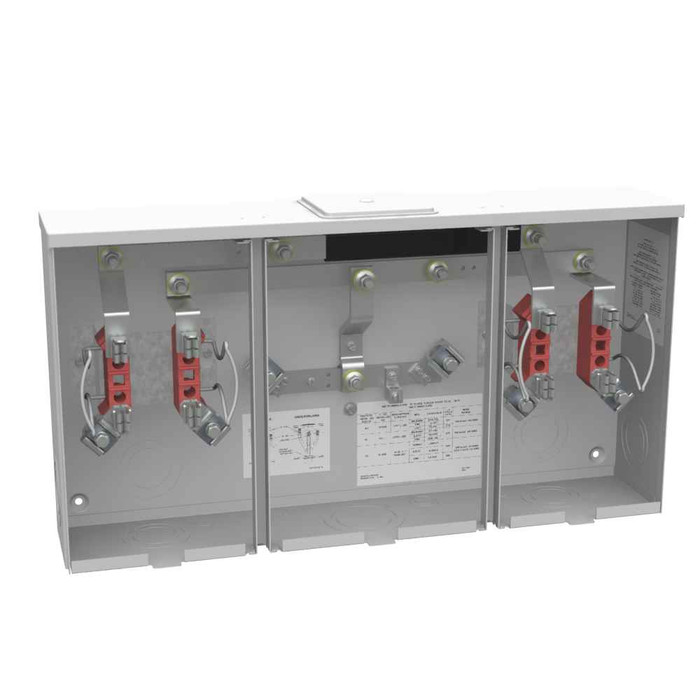

The Milbank 4 Terminal Ringless Meter Socket delivers reliable 150 ampere continuous service in a durable 2-position configuration. Featuring G90 galvanized steel construction with powder coat finish and Type 3R enclosure rating, this UL Listed meter socket provides professional-grade performance for both overhead and underground cable entry applications. The glass polyester insulation and surface mount design ensure dependable operation at 300 volts alternating current, 60 hertz, 1 phase service.

Professional Features & Benefits

  • 150 Ampere Continuous Rating: Handles substantial electrical loads with reliable capacity for residential and commercial metering applications.
  • 2 Position Configuration: Accommodates dual metering requirements for multi-unit properties or separate service monitoring needs.
  • Type 3R Enclosure Rating: Weather-resistant construction protects internal components from rain, sleet, and ice formation in outdoor installations.
  • G90 Galvanized Steel with Powder Coat: Superior corrosion resistance and durability for long-term performance in harsh environmental conditions.
  • Overhead or Underground Cable Entry: Versatile installation options accommodate various service entrance configurations and utility requirements.
  • Glass Polyester Insulation: High-quality insulation material provides excellent electrical isolation and thermal stability.
  • UL Listed Certification: Meets rigorous safety and performance standards for professional electrical installations.

Technical Specifications

  • Amperage Rating: 150 Continuous Ampere
  • Application: Meter Socket
  • Brand Name: Milbank
  • Bypass Provision: No Bypass
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Equipment Ground: Ground Lug
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Large Closing Plate
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Load Side Wire Range: 6 AWG - 350 kcmil
  • Main Breaker Size: No Main Breaker
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 2 Positions
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: G150
  • Product Height: 14 IN
  • Product Length: 5.125 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 5.125L x 26.5W x14H
  • Product Type: Ringless Meter Socket
  • Standard: UL Listed;Type 3R
  • Unspsc Number: 39121102
  • Voltage Rating: 300 Volts Alternating Current
  • Width: 26.5 IN

Professional Applications

  • Multi-Unit Residential Properties requiring separate metering for individual units
  • Commercial Buildings with dual service monitoring requirements
  • Mixed-Use Developments needing separate utility tracking
  • Duplex and Townhome Installations with individual service needs
  • Professional Office Buildings with tenant-specific metering
  • Retail Strip Centers requiring separate utility billing
  • Light Industrial Facilities with multiple service points

Why Choose Milbank Quality?

Milbank delivers proven reliability through UL Listed certification and Type 3R weather-resistant construction. The G90 galvanized steel with powder coat finish ensures long-term durability, while the professional 2-position design accommodates diverse metering requirements. With comprehensive wire range compatibility from 6 AWG to 350 kcmil and robust 150 ampere continuous rating, this meter socket provides the dependable performance professionals demand.

Manufacturer Resources

Product Specs

Amperage Rating:
150 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
No Bypass
Cable Entry:
Overhead or Underground
Equipment Ground:
Ground Lug
Frequency Rating:
60 Hertz
Hub Closing Plate:
Large Closing Plate
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Load Side Wire Range:
6 AWG - 350 kcmil
Main Breaker Size:
No Main Breaker
Number Of Main Breakers:
0
Number Of Meter Positions:
2 Positions
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
G150
Product Height:
14 IN
Product Length:
5.125 IN
Product Size:
5.125L x 26.5W x14H
Product Type:
Ringless Meter Socket
Standards:
UL Listed;Type 3R
Unspsc Number:
39121102
Voltage Rating:
300 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
150
Product Width:
26.5 IN
Department:
Electrical
Product Subgroup:
Electrical
Insulation Type:
Glass Polyester
Hub Style:
Large Closing Plate
Installation Category:
Surface Mount
Number of Phases:
1
Frequency:
60 hertz
Product Details:
Ringless Meter Socket
Product Group:
Metering & Service Entrance

Milbank U1232-X-HSP – Frequently Asked Questions

1) Does the Milbank U1232-X meter socket come with a main breaker or bypass?
No on both counts. The U1232-X is a straight 2-position ringless meter socket with no main breaker and no bypass provision, so any overcurrent protection has to sit downstream in a separate disconnect or panel. Equipment grounding is handled by a ground lug in the socket. If your utility requires a lever bypass for hot meter pulls, this is not the socket for that job.
2) Is the 150 amp rating per meter position or for the whole Milbank 2-gang socket?
The U1232-X carries a 150 continuous ampere rating at 300 volts AC, 60 hertz, single phase. It is a 4-terminal single-phase socket with two meter positions, and the line and load lugs on both sides take 6 AWG through 350 kcmil, which is what lets it land service conductors sized for that 150A class.
3) Will 4/0 aluminum service entrance cable land in this Milbank meter socket?
Yes. Both line side and load side terminals on the U1232-X accept 6 AWG up to 350 kcmil, so 4/0 falls comfortably inside that range. If you need to land two conductors per terminal, order the U1232-X-5T-K1 version, which ships with double connectors rated for the same 6 to 350 kcmil range.
4) Can this Milbank ringless socket be fed from an overhead drop, or is it underground only?
Either. The U1232-X is built for overhead or underground cable entry and ships with a large closing plate over the hub opening, so you can leave the plate in place and bring conduit in from below for an underground lateral, or remove it and fit the hub your utility specifies for an overhead service mast.
5) What is the difference between the three Milbank U1232-X versions?
Three build options share the same 150A 2-position ringless body. U1232-X is the standard unit. U1232-X-5T-K1 adds double connectors rated 6 AWG to 350 kcmil for landing two conductors per terminal. U1232-X-HSP adds a stainless steel hasp for padlocking the cover, which is what most property managers and institutional buyers want on an accessible exterior wall.
6) Can I use this Milbank socket on a 3-phase service?
No. The U1232-X is a 4-terminal, single phase, 3-wire socket rated 300 volts AC. Three-phase metering needs a 7-terminal socket instead. Trying to meter a 3-phase service through this one is not an option.
7) What wall space do I need for a Milbank U1232-X 2-position meter socket?
Plan for a surface-mounted enclosure measuring 5.125 inches long by 26.5 inches wide by 14 inches high. The 26.5 inch width is the number that catches people out on a 2-gang socket, so check your stud spacing and any clearance the utility requires around the meters before you set it.
8) Is this Milbank meter socket rated for outdoor mounting on a duplex?
Type 3R rated and UL Listed, so it is intended for outdoor use where rain, sleet and ice are the exposure. The enclosure is G90 galvanized steel with a powder coat finish, and internal insulation is glass polyester. That combination is the usual specification for an exterior wall on a duplex or small multi-unit building.
9) Ringless versus ring type meter socket, which one does my utility want?
That is a utility call, not a product call. The U1232-X is ringless, meaning the cover itself locks over the meter and is sealed by the utility rather than using a separate sealing ring. Many utilities specify one or the other exclusively, so confirm with the serving utility before ordering. If ringless is approved, this one covers two single-phase meter positions at 150A on a single enclosure.
10) What else do I have to buy to finish a Milbank U1232-X installation?
The socket has no receptacles and no integral disconnect, so each tenant position needs its own downstream service disconnect and panel. For an overhead feed you supply the hub sized to your conduit, since the unit ships with the large closing plate over that opening rather than a hub. Mounting hardware for the surface-mount enclosure, grounding electrode conductor to the ground lug, and utility seals round out the job.
