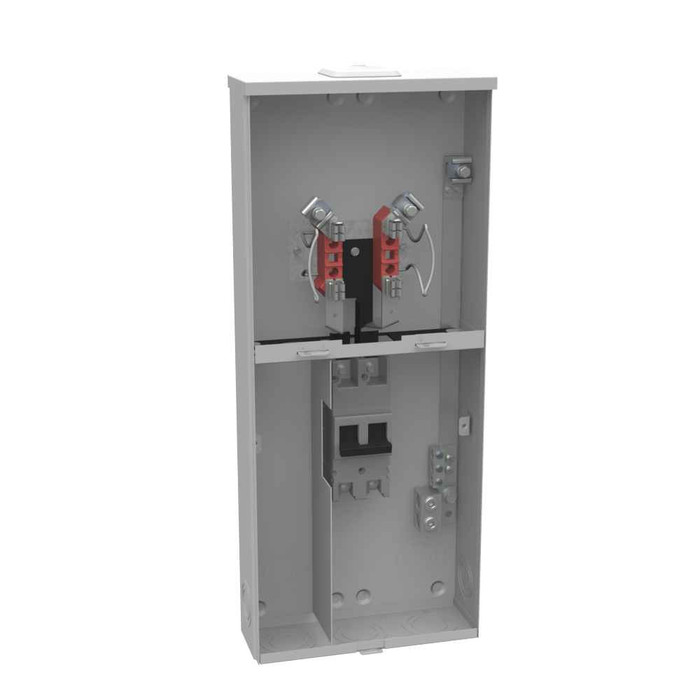

Milbank 4 Terminal Ringless Small Closing Plate with Main Breaker, 1 Position

Milbank 1-Position Ringless Meter Socket with Main Breaker 4-Terminal 240V 1-Phase Surface Mount

(No reviews yet) Write a Review

Model: U3491-XL-200

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,390.71
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 1-Position Ringless Meter Socket with Main Breaker

Professional electrical metering solution with integrated main breaker protection

The Milbank 1-Position Ringless Meter Socket with Main Breaker delivers reliable electrical metering and main circuit protection in a single unit. Featuring 4-terminal configuration with up to 240V AC rating and 1-phase operation, this surface-mount meter socket provides professional-grade service entrance capabilities with G90 galvanized steel construction and powder coat finish for lasting durability.

Professional Features & Benefits

  • 240V AC Rating: Supports residential and light commercial voltage requirements with reliable 1-phase operation
  • 4-Terminal Configuration: Provides proper line and load connections with lay-in terminal design for secure wire management
  • Integrated Main Breaker: Single-position design combines metering and main circuit protection for streamlined installation
  • G90 Galvanized Steel Construction: Powder coat finish over galvanized steel provides superior corrosion resistance and long-term durability
  • Type 3R Rating: UL Listed enclosure withstands outdoor weather conditions including rain, sleet, and ice formation
  • Flexible Cable Entry: Accommodates both overhead and underground service connections for versatile installation options
  • 6 AWG - 350 kcmil Wire Range: Handles wide range of conductor sizes for various service entrance applications

Technical Specifications

  • Application: Meter Socket With Main
  • Brand Name: Milbank
  • Bypass Provision: No Bypass
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Equipment Ground: 3 Barrel Ground Lug
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Small Closing Plate
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Number Of Jaws: 4 Terminal
  • Number Of Main Breakers: 1
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: MTMN
  • Product Height: 29 IN
  • Product Length: 4.125 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 4.125L x 12W x29H
  • Product Type: Ringless Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: Lay in
  • Unspsc Number: 39121102
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Width: 12 IN

Professional Applications

  • Residential Service Entrance
  • Small Commercial Buildings
  • Multi-Unit Properties
  • Professional Offices
  • Retail Establishments
  • Light Industrial Facilities
  • Utility Metering Applications

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather-resistant construction. The G90 galvanized steel with powder coat finish ensures long-term performance in demanding outdoor environments, while glass polyester insulation and 3-barrel ground lug provide enhanced safety and electrical integrity for professional installations.

Manufacturer Resources

Product Specs

Application:
Meter Socket With Main
Brand Name:
Milbank
Bypass Provision:
No Bypass
Cable Entry:
Overhead or Underground
Equipment Ground:
3 Barrel Ground Lug
Frequency Rating:
60 Hertz
Hub Closing Plate:
Small Closing Plate
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Number Of Jaws:
4 Terminal
Number Of Main Breakers:
1
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
MTMN
Product Height:
29 IN
Product Length:
4.125 IN
Product Size:
4.125L x 12W x29H
Product Type:
Ringless Meter Socket
Standards:
UL Listed;Type 3R
Terminal:
Lay in
Unspsc Number:
39121102
Voltage Rating:
Up to 240 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Product Width:
12 IN
Department:
Electrical
Product Subgroup:
Electrical
Insulation Type:
Glass Polyester
Hub Style:
Small Closing Plate
Installation Category:
Surface Mount
Terminal Type:
Lay In
Number of Phases:
1
Frequency:
60 hertz
Product Details:
Ringless Meter Socket
Number of Terminations:
4
Product Group:
Metering & Service Entrance

Milbank U3491-XL-200 – Frequently Asked Questions

1) What amp ratings does the Milbank U3491-XL meter socket with main breaker come in?
Two main breaker sizes: 150 amp (U3491-XL-150) and 200 amp (U3491-XL-200). Everything else is the same between them, 4 terminal, single position, 1 phase, up to 240V AC at 60 Hz. Pick the breaker to match the service size the utility is feeding.
2) Can this Milbank meter socket be mounted outside on the exterior wall of a house?
Yes. The U3491-XL is a Type 3R UL Listed enclosure, which is the outdoor rainproof rating used for service entrance equipment on an exterior wall. Body is G90 galvanized steel with a powder coat finish, and it surface mounts flat to the wall.
3) Will this Milbank socket work for an underground service lateral, or is it overhead only?
Either one. Cable entry is rated for overhead or underground service, so the same can handles a weatherhead drop from above or a lateral coming up from below. It ships with a small closing plate at the hub opening, so if you are running overhead you remove the plate and install the appropriate hub.
4) Is this a combination meter main, or do I still need a separate disconnect?
It is a meter main. One meter position and one integrated main breaker in the same enclosure, so the service disconnect is built in and you do not need a separate disconnect between the meter and the panel. There are no branch breaker spaces and no receptacles, so all branch circuits still feed from a downstream load center.
5) Can I use this Milbank socket on a 3-phase or 208V service?
No. This is a single phase unit with 4 terminals rated up to 240 volts AC, which suits standard 120/240V single phase residential and light commercial service. A three phase service needs a 7-jaw socket and a three phase rated can, not this one.
6) What are the dimensions of the Milbank U3491-XL meter socket enclosure?
The can measures 4.125 inches deep by 12 inches wide by 29 inches high. The 29 inch height is worth checking against your wall space, because the meter has to sit within the utility's required height window off finished grade and there needs to be room below for the main breaker section and conduit.
7) What does ringless mean on a Milbank meter socket, and does it change what I order?
Ringless means the cover slides down over the meter and is secured by the utility, instead of a separate sealing ring clamping the meter to the socket. Utilities specify one or the other and they are not interchangeable in the field, so if your utility is a ring-type territory, a ringless can will get red tagged at inspection. The U3491-XL is ringless.
8) How well does this meter socket hold up in coastal or high-humidity conditions?
Construction is G90 galvanized steel with a powder coat over it, so there are two layers of corrosion protection on the enclosure, and the Type 3R rating covers rain, sleet and ice. Internally the jaw assembly is insulated with glass polyester, which handles heat and moisture better than a phenolic base. For property managers standardizing on exterior service gear across a portfolio, that is the durability spec to compare on.
