Milbank 200A 1-Phase Ringless ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$2,362.85

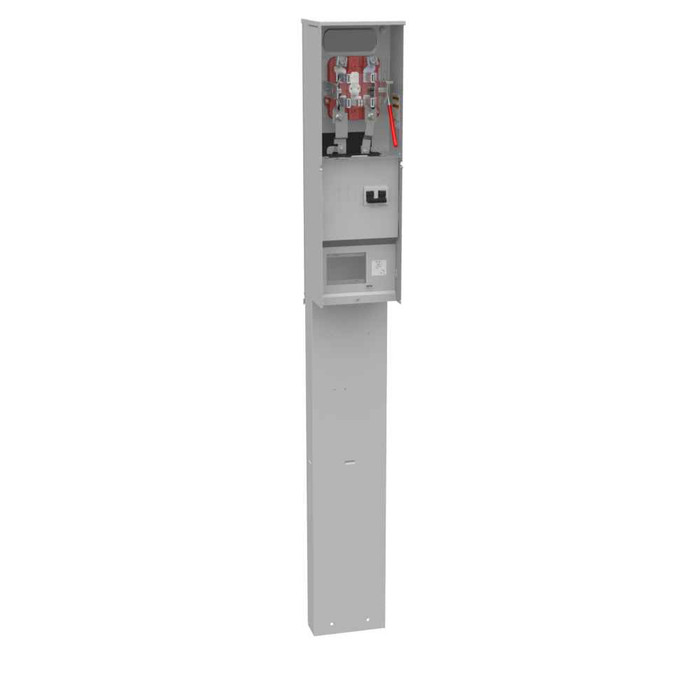

Milbank 5 Terminal Ringless Plain Top Lever Bypass 100-200 Ampere Main Breaker 5th Terminal 6 o'clock Position Single Pedestal Direct Bury

Milbank 200A 1-Phase Ringless Meter Socket with Main Breaker and Lever Bypass Direct Bury Pedestal

(No reviews yet) Write a Review

Model: U5701-O-100S-5T6

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,362.85
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 200A 1-Phase Ringless Meter Socket with Main Breaker and Lever Bypass Direct Bury Pedestal

Professional electrical metering and distribution solution for underground service applications

The Milbank 200A ringless meter socket with main breaker delivers reliable electrical metering and distribution for residential and commercial underground service installations. This single-phase pedestal unit features a 5-terminal ringless design with lever bypass provision, 200 continuous ampere rating, and G90 galvanized steel construction with powder coat finish for long-lasting durability in outdoor environments.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Provides substantial electrical capacity for demanding residential and light commercial applications with reliable current handling.
  • 5-Terminal Ringless Design: Eliminates the need for meter rings while ensuring secure electrical connections and simplified installation procedures.
  • Lever Bypass Provision: Enables safe meter removal and replacement without interrupting electrical service to critical loads and systems.
  • G90 Galvanized Steel with Powder Coat: Delivers superior corrosion resistance and weather protection for extended service life in outdoor installations.
  • Type 3R Enclosure Rating: Provides protection against rain, sleet, and ice formation while maintaining safe operation in outdoor environments.
  • UL Listed Certification: Ensures compliance with national electrical safety standards and meets code requirements for professional installations.
  • Underground Cable Entry: Designed specifically for direct bury applications with proper sealing and protection for underground service connections.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket With Main And Load Center
  • Brand Name: Milbank
  • Bypass Provision: Lever Bypass
  • Cable Entry: Underground
  • Departent: Electrical
  • Equipment Ground: 4 Barrel Ground Lug
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Plain Top
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Load Side Wire Range: 1 AWG - 300 kcmil
  • Number Branch Circuits: 4
  • Number Of Jaws: 5 Terminal
  • Number Of Main Breakers: 1
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: PHDO
  • Product Height: 80 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Pedestal
  • Product Type: Ringless Meter Socket
  • Special Features: Ameren Energy
  • Standard: UL Listed;Type 3R
  • Terminal: Double Mechanical
  • Unspsc Number: 39121102
  • Voltage Rating: Up to 240 Volts Alternating Current

Professional Applications

  • Residential Underground Service Installations
  • Commercial Building Electrical Distribution
  • Multi-Unit Residential Properties
  • Light Industrial Facilities
  • Retail and Office Buildings
  • Municipal and Institutional Projects
  • Utility Company Service Connections

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather protection. The G90 galvanized steel construction with powder coat finish ensures long-term durability in demanding outdoor environments, while the 80-inch pedestal height and 4 barrel ground lug provide professional installation flexibility and safety compliance.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket With Main And Load Center
Brand Name:
Milbank
Bypass Provision:
Lever Bypass
Cable Entry:
Underground
Equipment Ground:
4 Barrel Ground Lug
Frequency Rating:
60 Hertz
Hub Closing Plate:
Plain Top
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Load Side Wire Range:
1 AWG - 300 kcmil
Number Branch Circuits:
4
Number Of Jaws:
5 Terminal
Number Of Main Breakers:
1
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
PHDO
Product Height:
80 IN
Product Type:
Ringless Meter Socket
Special Features:
Ameren Energy
Standards:
UL Listed;Type 3R
Terminal:
Double Mechanical
Unspsc Number:
39121102
Voltage Rating:
Up to 240 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Pedestal
Amps:
200
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Insulation Type:
Glass Polyester
Hub Style:
Plain Top
Installation Category:
Pedestal
Terminal Type:
Double Mechanical
Number of Phases:
1
Product Details:
Ringless Meter Socket
Frequency:
60 hertz
Number of Terminations:
5
Product Group:
Power Distribution

Milbank U5701-O-100S-5T6 – Frequently Asked Questions

1) Will this Milbank U5701-O pedestal work for an underground service feed?
That is exactly what the U5701-O pedestal is built for. Cable entry is underground, and the unit is a direct bury pedestal that stands 80 inches tall so the meter and breaker sit at working height above grade. It is a Type 3R enclosure in G90 galvanized steel with a powder coat finish, so it is rated for rain, sleet and ice outdoors. Overhead service drops need a different socket with a hub or service entrance fitting; the top on this one is a plain top with no hub opening.
2) What size service conductors can I land in the Milbank U5701-O meter pedestal?
Line side terminals take 6 AWG through 350 kcmil, and the load side takes 1 AWG through 300 kcmil. Terminals are double mechanical type, so parallel or dual conductor landings are accommodated within those ranges. Equipment grounding is a 4 barrel ground lug.
3) Do I need the Ameren approved version of the Milbank U5701-O?
If the utility serving the site is Ameren, order the AMS suffix version: U5701-O-200S-5T6-AMS at 200A or U5701-O-100S-5T6-AMS at 100A. Outside Ameren territory the standard U5701-O-200S-5T6 or U5701-O-100S-5T6 is the one to take. Meter equipment has to be on the serving utility's approved list before they will set a meter, so check the utility's list before you buy either way.
4) Can the meter be pulled on this Milbank pedestal without killing power to the building?
Yes. The U5701-O carries a lever bypass provision, so the lineman throws the bypass lever to shunt current around the meter socket and the meter can be removed or swapped while the load stays energized. Some utilities specify lever bypass on all new sockets for exactly this reason; horn bypass and no-bypass sockets do not allow it.
5) How many circuits can I run out of the Milbank U5701-O pedestal?
The integral load center carries 4 branch circuit spaces behind a single main breaker. That is enough for a well pump, a small outbuilding, an RV or trailer feed, or a handful of site loads. If you need a full panel of circuits, use this as a meter main and feed a separate load center downstream from the load side lugs, which accept 1 AWG through 300 kcmil.
6) Should I order the 100A or the 200A version of the Milbank U5701-O?
Both amperages share the same pedestal, the same 5 terminal ringless socket and the same lever bypass. The difference is the main breaker: 100A for a small cabin, shop, or well service, 200A where the calculated load is a full house or light commercial. The 200A unit is the 200 continuous ampere rating. Sizing follows your service load calculation and the utility's minimum, so match the breaker to the feeder you are pulling.
7) Will the Milbank U5701-O hold up in a wet or coastal outdoor location?
The enclosure is G90 galvanized steel with a powder coat finish and carries a Type 3R rating, which covers rain, sleet and ice for an outdoor unattended install. Internal insulation is glass polyester. It is not a Type 4X washdown or corrosion rated enclosure, so in a heavy salt or chemical environment expect the finish to be the limiting factor and plan on periodic inspection of the enclosure and lugs.
8) Is there a receptacle on the Milbank U5701-O pedestal for temporary power?
No. The U5701-O has zero receptacles built in. It is a meter socket with main breaker and a 4 space load center, nothing more. If you need a job site or RV pedestal with GFCI receptacles and a twist lock, that is a different Milbank configuration; here you would have to feed a receptacle enclosure from one of the 4 branch circuits.
9) Can I add a conduit hub to the top of this Milbank meter pedestal?
The U5701-O ships plain top, meaning there is no hub opening and no closing plate cutout in the top of the enclosure. It is configured for underground entry from below, not an overhead riser. If your install needs a hub through the top, specify a hub top socket instead rather than field cutting this enclosure, which would compromise the Type 3R rating.
10) Is the Milbank U5701-O UL Listed for a permanent service installation?
Yes, it is UL Listed and Type 3R rated. For a permanent outdoor service entrance that is the pairing an inspector looks for on a meter main pedestal. The UNSPSC classification is 39121102 if your procurement system needs it for a submittal package.
