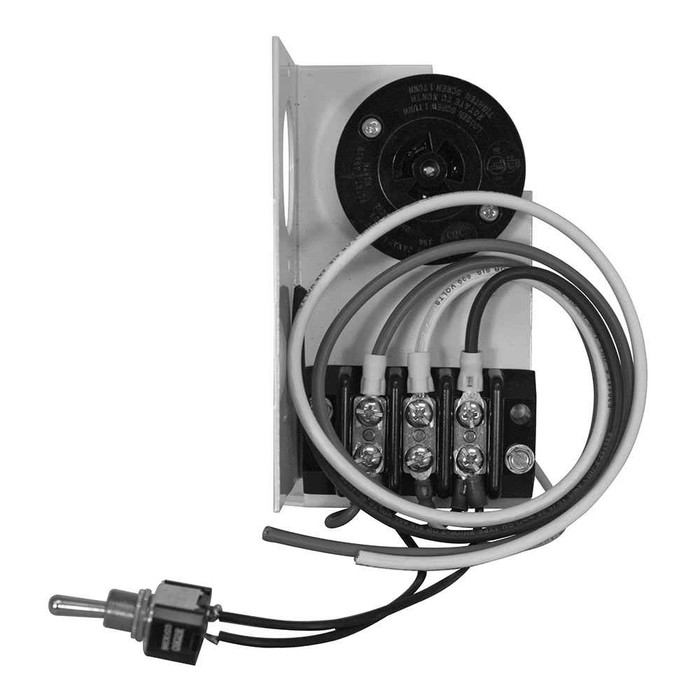

Milbank CP-PE-TYP5-2POS Photo Control Kit 1-HOA Switch 2 Position

Milbank Photo Control Kit with HOA Switch 2-Position 24/7 Load Control System

(No reviews yet) Write a Review

Model: CP-PE-TYP5-2POS

In Stock (leaves warehouse same day if ordered before 3pm ET)

$388.45
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank Photo Control Kit with HOA Switch 2-Position 24/7 Load Control System

Professional pedestal accessory for automated lighting and load control

The Milbank Photo Control Kit delivers reliable 24/7 control for most loads with professional 2-position HOA switch functionality. This hard-wired control system features normally open contact configuration with multi-voltage compatibility across 24V, 120V, and 240V AC applications. The internal surface mount design with male 4-pin connector ensures secure installation in pedestal applications requiring automated lighting control.

Professional Features & Benefits

  • 24/7 Load Control: Provides continuous automated control for most electrical loads, ensuring reliable operation around the clock.
  • Multi-Voltage Compatibility: Supports 24V, 120V, and 240V AC systems for versatile installation across different electrical configurations.
  • 2-Position HOA Switch: Hand-Off-Auto functionality allows manual override and automatic operation for flexible control options.
  • Normally Open Contact: Reliable contact configuration ensures proper switching operation and load management.
  • Wide Operating Range: Functions reliably from -20°F to 131°F for dependable performance in various environmental conditions.
  • UL Listed: Meets rigorous safety standards for professional electrical installations and code compliance.
  • Male 4-Pin Connector: Secure connection system with 4-pin configuration ensures reliable electrical connections.

Technical Specifications

  • Action: Provides 24/7 Control for Most Loads
  • Application: Pedestal Accessory
  • Brand Name: Milbank
  • Connection: Hard Wired
  • Contact Configuration: Normally Open
  • Contact Rating: 24 Volts Alternating Current;120 Volts Alternating Current;240 Volts Alternating Current
  • Departent: Electrical
  • Enclosure: No Enclosure
  • Number Of Pins: 4
  • Number Of Poles: 2
  • Operating Temperature: Negative 20 Degrees Fahrenheit to 131 Degrees Fahrenheit
  • Phase: 1 Phase
  • Product Family Code: CPAC
  • Product Height: 6 IN
  • Product Length: 2 IN
  • Product Mounting: Internal Surface Mount
  • Product Size: 4.75 Inches x 3.25 Inches x 3.25 Inches
  • Product Type: PE Control Kit
  • Special Features: Male 4 Pin Connector
  • Standard: UL Listed
  • Timing Range: 24/7 Day
  • Unspsc Number: 39121523
  • Width: 5 IN

Professional Applications

  • Pedestal Lighting Control Systems
  • Outdoor Area Lighting Management
  • Commercial Facility Automation
  • Parking Lot Lighting Control
  • Security Lighting Applications
  • Municipal Lighting Systems
  • Industrial Load Control

Why Choose Milbank Quality?

Milbank delivers professional-grade electrical control solutions with UL Listed safety certification and robust construction designed for reliable long-term performance. The wide operating temperature range and multi-voltage compatibility ensure dependable operation across diverse installation environments and electrical systems.

Manufacturer Resources

Product Specs

Action:
Provides 24/7 Control for Most Loads
Application:
Pedestal Accessory
Brand Name:
Milbank
Connection:
Hard Wired
Contact Configuration:
Normally Open
Configuration:
No Enclosure
Number Of Pins:
4
Number Of Poles:
2
Operating Temperature:
Negative 20 Degrees Fahrenheit to 131 Degrees Fahrenheit
Phase:
1 Phase
Product Family Code:
CPAC
Product Height:
6 IN
Product Length:
2 IN
Product Size:
4.75 Inches x 3.25 Inches x 3.25 Inches
Product Type:
PE Control Kit
Special Features:
Male 4 Pin Connector
Standards:
UL Listed
Timing Range:
24/7 Day
Unspsc Number:
39121523
Product Mounting:
Internal Surface Mount
Product Width:
5 IN
Department:
Electrical
Product Subgroup:
Lighting Controls & Sensors
Product Group:
Wiring Devices

Milbank CP-PE-TYP5-2POS – Frequently Asked Questions

1) Will the Milbank CP-PE-TYP5-2POS photo control kit work on a 120V lighting circuit, and can it also run at 240V?
The Milbank CP-PE-TYP5-2POS photo control kit is rated for 24, 120 and 240 volts AC, single phase, so it drops onto a standard 120V pedestal lighting circuit and onto 240V area lighting without changing parts. Contacts are normally open, meaning the load is off until the control closes them.
2) Does the Milbank photo control kit come with its own enclosure, or does it mount inside an existing pedestal?
No enclosure is supplied. This is an internal surface mount kit, built to be installed inside a pedestal or other existing enclosure that you already have on the job. If your install point is exposed, you need a separate housing for it.
3) Is this photo control kit a plug-in twist-lock type or does it have to be hard wired?
It is a hard-wired kit with a male 4-pin connector for the photocell side. It is not a standard twist-lock receptacle assembly, so budget for an electrician to land conductors rather than a snap-in swap.
4) What does the 2-position HOA switch on this Milbank photo control kit actually let an operator do?
The hand-off-auto switch gives a maintenance tech a manual override: force the lights on by hand, or leave the switch in auto and let the photo control run the load on its own around the clock. That is useful for parking lot and security lighting where you occasionally need the lights on in daylight for service work. The kit provides 24/7 control for most loads.
5) How much room do I need inside the pedestal to fit the Milbank CP-PE photo control kit?
Plan for a footprint of 4.75 x 3.25 x 3.25 inches for the control itself. The kit as catalogued is 6 in by 5 in by 2 in overall, so leave clear surface area on the pedestal interior plus room to land the hard-wired leads.
6) Can the Milbank photo control kit handle outdoor winter temperatures in a northern parking lot?
Operating range runs from -20 F to 131 F, which covers most North American outdoor pedestal installs. Below -20 F ambient you are outside the rated range.
7) Is the Milbank CP-PE-TYP5-2POS UL Listed for a commercial lighting job?
Yes, it carries a UL Listed marking, which is typically what an inspector or a municipal spec asks for on pedestal lighting control.
8) How many poles does the Milbank photo control kit switch?
Two poles, single phase. That lets it break both legs of a 240V load rather than just one, which matters if your fixture circuit is two-wire 240 rather than 120 to neutral.
9) What part number do I give my distributor for the Milbank 2-position HOA photo control kit?
Order Milbank CP-PE-TYP5-2POS. It is the 2-position HOA version of the CPAC family photo control kit.
