Milbank Type 1 Steel Electrica...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$56.81
Milbank Hinge Cover Type 1 Steel Knockouts No Paint Flush Pull Ring

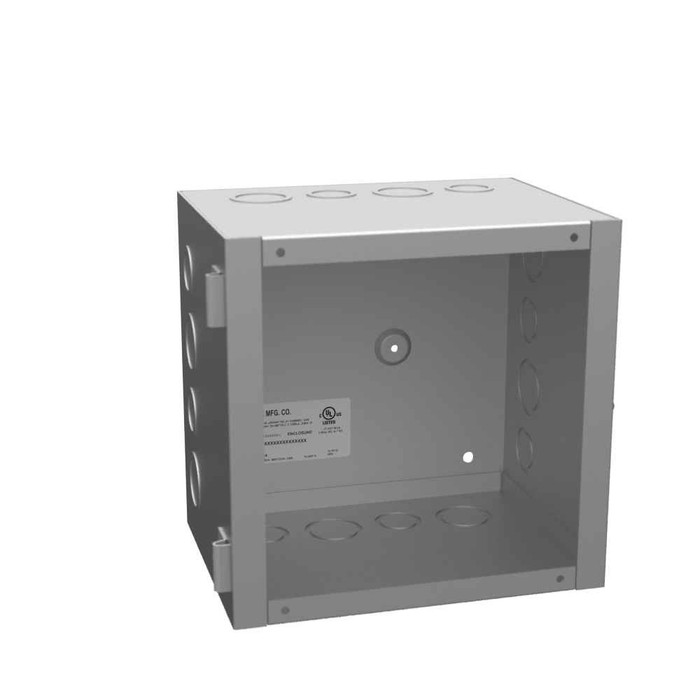

Milbank Type 1 Steel Electrical Enclosure with Hinge Cover 8" x 8" Wall Mount

(No reviews yet) Write a Review

Model: 884-HC1-NP

In Stock (leaves warehouse same day if ordered before 3pm ET)

$56.81
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank Type 1 Steel Electrical Enclosure with Hinge Cover 8" x 8" Wall Mount

Professional quality enclosure for versatile electrical equipment mounting applications

Milbank Type 1 Steel Electrical Enclosure with Hinge Cover delivers reliable protection for electrical equipment mounting with G90 galvanized steel construction and NEMA Type 1 rating. This wall-mounted enclosure features welded construction with formed stainless hinges, flush pull ring latch, and knockouts for versatile installation options in indoor applications.

Professional Features & Benefits

  • NEMA Type 1 Rating: Provides protection against incidental contact with enclosed equipment and falling dirt in indoor environments.
  • G90 Galvanized Steel Construction: Delivers superior corrosion resistance and long-lasting durability for reliable equipment protection.
  • 8" x 8" Compact Design: Offers optimal space utilization while providing adequate room for electrical equipment mounting and connections.
  • Formed Stainless Hinges: Ensure smooth operation and extended service life with corrosion-resistant hinge construction.
  • Flush Pull Ring Latch: Provides secure closure with easy access for maintenance and equipment servicing.
  • Welded Construction: Delivers robust structural integrity with formed and spot welded support for demanding applications.
  • UL Listed: Meets rigorous safety standards for professional electrical installations and code compliance.

Technical Specifications

  • Application: Enclosure for Mounting Electrical Equipment
  • Brand Name: Milbank
  • Construction: Welded
  • Departent: Electrical
  • Door: 1 Door
  • Hinge Type: Formed Stainless Hinges
  • Knockouts: Knockouts
  • Latch Specification: Flush Pull Ring for Opening
  • Nema Rating: Type 1
  • Number Of Outlet: 0
  • Product Color: Unpainted
  • Product Family Code: HC1C
  • Product Height: 8 IN
  • Product Material: G90 Galvanized Steel
  • Product Mounting: Wall Mount
  • Product Type: Hinge Cover
  • Standard: UL Listed
  • Support: Formed and Spot Welded
  • Top: Plain Top
  • Unspsc Number: 39121324
  • Width: 8 IN

Professional Applications

  • Residential Electrical Equipment Protection
  • Commercial Building Electrical Systems
  • Industrial Control Panel Housing
  • Professional Office Electrical Installations
  • Retail Establishment Equipment Mounting
  • Light Industrial Electrical Applications
  • Maintenance and Service Facilities

Why Choose Milbank Quality?

Milbank delivers professional-grade electrical enclosures with UL Listed certification and G90 galvanized steel construction for reliable performance. The NEMA Type 1 rating and welded construction ensure dependable protection for your electrical equipment in demanding applications.

Manufacturer Resources

Product Specs

Application:
Enclosure for Mounting Electrical Equipment
Brand Name:
Milbank
Construction:
Welded
Door:
1 Door
Hinge Type:
Formed Stainless Hinges
Knockouts:
Knockouts
Nema Rating:
Type 1
Number Of Outlet:
0
Product Family Code:
HC1C
Product Height:
8 IN
Product Type:
Hinge Cover
Standard:
UL Listed
Support:
Formed and Spot Welded
Top:
Plain Top
Unspsc Number:
39121324
Latch Specification:
Flush Pull Ring for Opening
Product Color:
Unpainted
Product Material:
G90 Galvanized Steel
Product Mounting:
Wall Mount
Product Width:
8 IN
Department:
Electrical

Milbank 884-HC1-NP – Frequently Asked Questions

1) Can a Milbank HC1 Type 1 enclosure be installed outdoors or in a wet location?
No. The Milbank hinge cover enclosure carries a NEMA Type 1 rating, which is an indoor-only rating covering incidental contact with the enclosed equipment and falling dirt. It offers no protection against rain, hose-down, or windblown dust, so anything exposed to weather needs a Type 3R or better enclosure instead.
2) What is the difference between the 884-HC1-NP and 886-HC1-NP Milbank enclosures?
Depth. Both are 8 inches high by 8 inches wide; the 884-HC1-NP is the 8x4x8 box and the 886-HC1-NP is the 8x6x8, giving you 4 inches versus 6 inches of interior depth. Pick the 6 inch depth if you are stacking a device on a mounting panel or turning larger conductors behind the cover.
3) Is this Milbank enclosure UL Listed for a commercial inspection?
Yes, it is UL Listed. Combined with the Type 1 rating, that covers it for indoor commercial and light industrial work where the inspector wants a listed enclosure. Its UNSPSC code is 39121324 if your procurement system needs it for a requisition.
4) Does the Milbank 8x8 hinge cover enclosure come with knockouts or do I have to punch my own?
Knockouts are provided in the box, so standard conduit entries can be made without a punch set on site. The top is plain, meaning there is no hub or bolt-on top fitting; it is a flat top panel.
5) Is the Milbank HC1 enclosure painted, and will the finish hold up in a damp basement or garage?
It ships unpainted. The steel is G90 galvanized, which is the zinc coating doing the corrosion work rather than paint, so it holds up fine in dry to damp indoor spaces. It is still a Type 1 box, so it is not for anything that sees direct water. If your job requires a painted gray finish to match other gear, this is not that box.
6) How does the cover on this Milbank enclosure open and latch, and can it be padlocked?
Single door on formed stainless steel hinges, closing to a flush pull ring that you use to open it. That is a latch for quick access, not a locking provision. If the installation calls for a locked or sealable cover, specify an enclosure with a hasp or lockable latch instead.
7) Can I use a Milbank HC1 hinge cover box as a junction or pull box for a control circuit?
That is what it is built for: an enclosure for mounting electrical equipment, wall mounted, with a hinged cover for access. Body is welded, with formed and spot welded support, so it holds its shape when you bolt devices to it. Note there are no factory outlets or receptacles in it, and no mounting panel is called out, so plan on providing your own back panel or device mounting.
8) I need to standardize on one enclosure family across a building. What ties these Milbank boxes together?
They share the HC1C product family, so the 8x4x8 and 8x6x8 sizes carry the same G90 galvanized construction, stainless hinge, flush pull ring, and Type 1 rating. Ordering both depths off the same family keeps look and access identical across openings while letting you match depth to what goes in each box.
