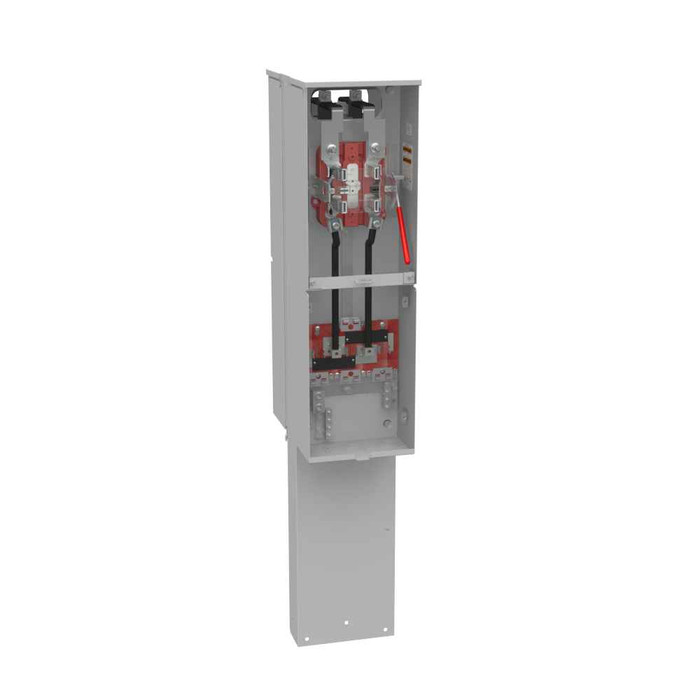

Milbank U4323-O 4 Terminal Ringless Meter Socket With Main And Load Center Plain Top Lever Bypass 2 Main Breaker Provision Double Pedestal Direct Bury

Milbank 200A Single Phase Ringless Meter Socket with Load Center and Lever Bypass Pedestal Mount System

(No reviews yet) Write a Review

Model: U4323-O-BL

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,808.43
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 200A Single Phase Ringless Meter Socket with Load Center and Lever Bypass Pedestal Mount System

Professional electrical metering and distribution solution for underground service applications

The Milbank 200A Single Phase Ringless Meter Socket with Load Center delivers reliable electrical metering and distribution in a robust pedestal-mounted configuration. This professional-grade unit features G90 galvanized steel construction with powder coat finish, Type 3R enclosure rating for outdoor durability, and lever bypass provision for safe maintenance operations. Designed for underground cable entry with 6-circuit load center capacity and direct bury pedestal mounting for versatile installation applications.

Professional Features & Benefits

  • 200 Continuous Ampere Rating: Provides substantial electrical capacity for residential and light commercial applications with reliable current handling.
  • Single Phase 240V AC Operation: Compatible with standard residential electrical systems for seamless integration and optimal performance.
  • G90 Galvanized Steel with Powder Coat: Delivers superior corrosion resistance and long-term durability in outdoor environments.
  • Type 3R Enclosure Rating: Ensures protection against rain, sleet, and ice formation for reliable outdoor operation.
  • Lever Bypass Provision: Enables safe maintenance and service operations with convenient manual bypass capability.
  • 6-Circuit Load Center: Accommodates multiple branch circuits for comprehensive electrical distribution and load management.
  • UL Listed Certification: Meets rigorous safety and performance standards for professional electrical installations.

Technical Specifications

  • Amperage Rating: 200 Continuous Ampere
  • Application: Meter Socket With Main And Load Center
  • Barrel Lock Provision: 9/16 Inch Knockout and Angle Bracket for Barrel Lock Provision
  • Brand Name: Milbank
  • Bypass Provision: Lever Bypass
  • Cable Entry: Underground
  • Departent: Electrical
  • Equipment Ground: 4 Barrel Ground Lug
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Plain Top
  • Insulation: Glass Polyester
  • Line Side Wire Range: 6 AWG - 350 kcmil
  • Main Breaker Size: No Main Breaker
  • Number Branch Circuits: 6
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: PHDO
  • Product Height: 55 IN
  • Product Length: 15.125 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Pedestal
  • Product Size: 15.125L x 9.875W x55H
  • Product Type: Ringless Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: Double Mechanical
  • Unspsc Number: 39121102
  • Voltage Rating: Up to 240 Volts Alternating Current
  • Width: 9.875 IN

Professional Applications

  • Residential electrical service installations requiring metering and distribution
  • Multi-unit residential properties with individual metering requirements
  • Light commercial facilities needing reliable electrical service entry
  • Outdoor electrical installations requiring weatherproof metering solutions
  • Underground service applications with pedestal mounting requirements
  • Electrical upgrade projects requiring combined meter socket and load center functionality

Why Choose Milbank Quality?

Milbank delivers proven reliability through UL Listed certification and Type 3R enclosure protection, ensuring dependable performance in demanding outdoor environments. The robust G90 galvanized steel construction with powder coat finish provides long-term durability and corrosion resistance for professional electrical installations that stand the test of time.

Manufacturer Resources

Product Specs

Amperage Rating:
200 Continuous Ampere
Application:
Meter Socket With Main And Load Center
Brand Name:
Milbank
Bypass Provision:
Lever Bypass
Cable Entry:
Underground
Equipment Ground:
4 Barrel Ground Lug
Frequency Rating:
60 Hertz
Hub Closing Plate:
Plain Top
Insulation:
Glass Polyester
Line Side Wire Range:
6 AWG - 350 kcmil
Main Breaker Size:
No Main Breaker
Number Branch Circuits:
6
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
PHDO
Product Height:
55 IN
Product Length:
15.125 IN
Product Size:
15.125L x 9.875W x55H
Product Type:
Ringless Meter Socket
Standards:
UL Listed;Type 3R
Terminal:
Double Mechanical
Unspsc Number:
39121102
Voltage Rating:
Up to 240 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Pedestal
Amps:
200
Product Width:
9.875 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Insulation Type:
Glass Polyester
Hub Style:
Plain Top
Installation Category:
Pedestal
Terminal Type:
Double Mechanical
Number of Phases:
1
Product Details:
Ringless Meter Socket
Frequency:
60 hertz
Product Group:
Power Distribution

Milbank U4323-O-BL – Frequently Asked Questions

1) Does the Milbank U4323-O meter socket pedestal come with a main breaker installed?
No main breaker ships in the U4323-O. The unit carries a main breaker provision but zero breakers installed, so the main and the six branch breakers are a separate order. Plan the load center fill around 6 branch circuits at 200 continuous amps, single phase, up to 240 volts AC.
2) Can I use this Milbank pedestal meter socket for an overhead service drop?
No. The U4323-O is built for underground cable entry and mounts on a direct bury pedestal, and the top is a plain top with no hub opening for a riser. For an overhead drop you want an overhead-fed socket with a hub or hub opening in the top, wall mounted rather than pedestal.
3) What is the difference between the U4323-O-BL and the U4323-O-5T9 versions?
Two build options on the U4323-O. The BL adds a 9/16 inch knockout and angle bracket for a barrel lock, which is what most utilities require to lock the cover. The 5T9 adds a 5th terminal in the 9 o'clock position with a stabilizer foot, which is the neutral terminal arrangement some utilities specify. Your utility's meter spec dictates which one you order, and ordering the wrong terminal count means the meter does not get set.
4) Will one Milbank U4323-O pedestal meter a duplex or two units?
No. It is a single meter position socket, one tenant. For a duplex or a small multi-family building where each unit is separately billed you need a multi-position meter pack or a second pedestal, one per meter.
5) Is the Milbank U4323-O a ringless socket, and does that matter for my utility?
Ringless, yes. A ringless socket uses a cover that fastens over the meter rather than a sealing ring around it, and utilities specify one style or the other, not both. If your utility's spec calls for a ring type socket, a ringless unit will be rejected at inspection. Confirm the style on the utility service handbook before ordering.
6) Is the Milbank U4323-O rated for outdoor use and will it hold up in a wet climate?
Type 3R and UL Listed, so it is built for outdoor service against rain, sleet and ice. The shell is G90 galvanized steel with a powder coat finish, and the internal insulation is glass polyester. Type 3R is not dust tight or submersible, so do not set it where it will be under standing water.
7) Can I power a well pump, RV site or outbuilding from the U4323-O pedestal directly?
You can feed them from the six branch circuit load center, but nothing is pre-wired for it. The unit has zero receptacles, so there is no RV receptacle or GFCI outlet in the door. If you need an RV pedestal with receptacles, this is not that part. For a well or an outbuilding, the six branch spaces plus a field supplied main is the working arrangement, at 200 amps, single phase, 60 hertz.
8) Will the U4323-O work on a 208Y/120 three phase service?
No. It is a single phase unit rated up to 240 volts AC at 60 hertz. Fed from a three phase system you would be limited to a single phase tap off it, and the socket's meter terminals will not meter a three phase load. A three phase service needs a three phase socket with the matching terminal arrangement.
9) Does the Milbank pedestal accept a utility barrel lock for sealing?
On the barrel lock version, yes. It ships with a 9/16 inch knockout and an angle bracket sized for a standard utility barrel lock. The lock itself comes from the utility, not with the socket.
