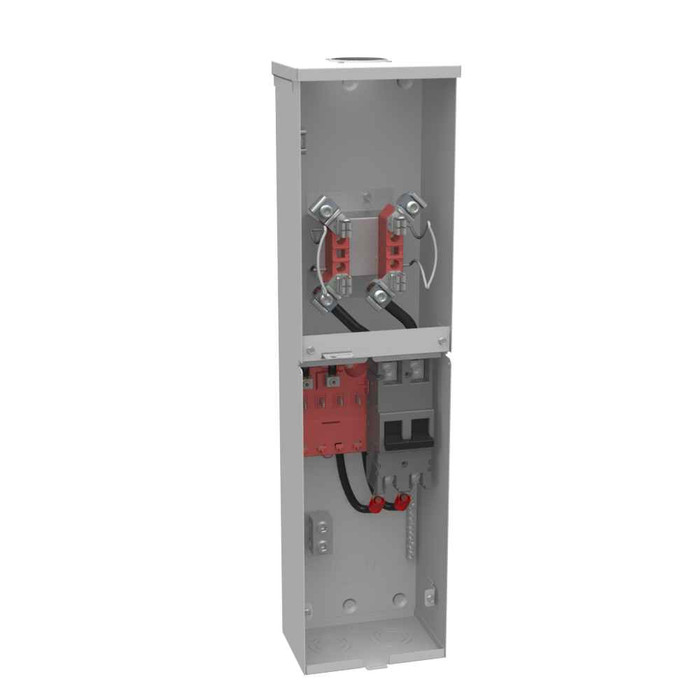

Milbank 200A 1-Phase Ringless Meter Socket with Main Breaker and 4 Branch Circuits

Milbank 200A 1-Phase Ringless Meter Socket with Main Breaker and 4 Branch Circuits

Professional electrical metering and distribution solution

The Milbank 200A 1-Phase Ringless Meter Socket delivers reliable electrical metering and distribution with integrated main breaker protection and 4 branch circuits. Constructed with G90 galvanized steel and powder coat finish for durability, this UL Listed Type 3R unit provides professional-grade performance for residential and commercial applications requiring up to 240V AC service.

Professional Features & Benefits

• 200 Continuous Ampere Rating: Handles substantial electrical loads with reliable capacity for demanding applications
• Integrated Main Breaker: One 200 ampere main breaker provides essential overcurrent protection and service disconnect capability
• 4 Terminal Ringless Design: Simplifies installation with lay-in terminals accommodating 6 AWG to 350 kcmil wire range
• Type 3R Enclosure: Weather-resistant construction suitable for outdoor installations with protection against rain and sleet
• G90 Galvanized Steel Construction: Powder coat finish over galvanized steel provides superior corrosion resistance and long-term durability
• UL Listed Compliance: Meets rigorous safety standards ensuring reliable performance and code compliance
• Glass Polyester Insulation: High-quality insulation materials provide excellent electrical isolation and safety

Technical Specifications

• Amperage Rating: 200 Continuous Ampere
• Application: Meter Socket With Main And Load Center
• Brand Name: Milbank
• Bypass Provision: No Bypass
• Cable Entry: Overhead
• Departent: Electrical
• Equipment Ground: Ground Bar
• Frequency Rating: 60 Hertz
• Hub Closing Plate: Small Hub Opening
• Insulation: Glass Polyester
• Line Side Wire Range: 6 AWG - 350 kcmil
• Main Breaker Size: One 200 Ampere Main Breaker
• Number Of Jaws: 4 Terminal
• Number Of Main Breakers: 1
• Number Of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Family Code: MTMN
• Product Height: 32 IN
• Product Length: 5.5 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Size: 5.5L x 8W x32H
• Product Type: Ringless Meter Socket
• Standard: UL Listed;Type 3R
• Terminal: Lay in
• Unspsc Number: 39121102
• Voltage Rating: Up to 240 Volts Alternating Current
• Width: 8 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential electrical service entrance installations
• Small commercial and retail facilities
• Multi-unit residential properties
• Professional office buildings
• Light industrial applications
• Electrical contractor and utility installations

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather-resistant construction. The G90 galvanized steel with powder coat finish ensures long-term durability and corrosion resistance, while the professional-grade design provides dependable electrical metering and distribution performance for demanding applications.
