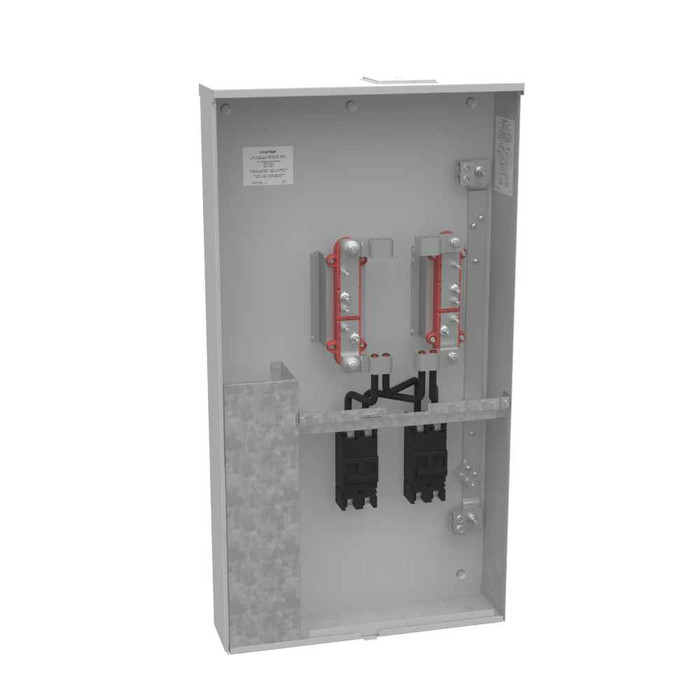

Milbank U5067-X-2/200 4 Terminal Bolt-in Large Closing Plate Link Bypass 2-double Connector 6-350 2-200 Ampere Main Breaker

Milbank 480A 1-Phase Meter Socket with Dual 200A Main Breakers and Link Bypass

(No reviews yet) Write a Review

Model: U5067-X-2/200

In Stock (leaves warehouse same day if ordered before 3pm ET)

$6,445.54
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 480A 1-Phase Meter Socket with Dual 200A Main Breakers and Link Bypass

Professional electrical metering solution with dual main breaker protection

The Milbank 480A continuous ampere meter socket delivers reliable single-phase electrical service with dual 200A main breaker protection and link bypass capability. This surface-mount unit features G90 galvanized steel construction with powder coat finish, UL Listed Type 3R rating for outdoor applications, and accommodates overhead or underground cable entry for versatile installation requirements.

Professional Features & Benefits

  • 480 Continuous Ampere Rating: Handles high-capacity electrical loads for demanding residential and commercial applications
  • Dual 200A Main Breakers: Provides redundant overcurrent protection and flexible load distribution options
  • Link Bypass Provision: Enables temporary power continuity during maintenance or meter replacement procedures
  • Type 3R Enclosure Rating: Weather-resistant construction suitable for outdoor installations and harsh environmental conditions
  • G90 Galvanized Steel Construction: Superior corrosion resistance and long-term durability with powder coat finish
  • 4 Terminal Bolt-in Design: Secure electrical connections with professional-grade terminal configuration
  • UL Listed Certification: Meets rigorous safety standards for code compliance and professional installation confidence

Technical Specifications

  • Amperage Rating: 480 Continuous Ampere
  • Application: Meter Socket With Main
  • Brand Name: Milbank
  • Bypass Provision: Link Bypass
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Equipment Ground: 3 Barrel Ground Lug
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Large Closing Plate
  • Insulation: Glass Polyester
  • Line Side Wire Range: Two 6 AWG - 350 kcmil
  • Load Side Wire Range: 1 AWG - 300 kcmil
  • Main Breaker Size: Two 200 Ampere Main Breakers
  • Number Of Jaws: 4 Terminal
  • Number Of Main Breakers: 2
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 1 Phase
  • Product Family Code: KSER
  • Product Height: 45 IN
  • Product Length: 6 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 6L x 24W x45H
  • Product Type: Bolt On Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: 1/2 Inch Stud Line Side
  • Unspsc Number: 39121102
  • Voltage Rating: 240 Volts Alternating Current
  • Width: 24 IN

Professional Applications

  • High-capacity residential electrical service installations
  • Commercial building main electrical distribution
  • Multi-unit residential properties requiring dual breaker protection
  • Industrial facilities with overhead or underground utility connections
  • Outdoor electrical service applications requiring weather-resistant enclosures
  • Electrical upgrade projects requiring link bypass capability

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather-resistant construction. The G90 galvanized steel with powder coat finish ensures long-term durability, while the professional 4-terminal bolt-in design and glass polyester insulation provide dependable electrical service for demanding applications.

Manufacturer Resources

Product Specs

Amperage Rating:
480 Continuous Ampere
Application:
Meter Socket With Main
Brand Name:
Milbank
Bypass Provision:
Link Bypass
Cable Entry:
Overhead or Underground
Equipment Ground:
3 Barrel Ground Lug
Frequency Rating:
60 Hertz
Hub Closing Plate:
Large Closing Plate
Insulation:
Glass Polyester
Line Side Wire Range:
Two 6 AWG - 350 kcmil
Load Side Wire Range:
1 AWG - 300 kcmil
Main Breaker Size:
Two 200 Ampere Main Breakers
Number Of Jaws:
4 Terminal
Number Of Main Breakers:
2
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
1 Phase
Product Family Code:
KSER
Product Height:
45 IN
Product Length:
6 IN
Product Size:
6L x 24W x45H
Product Type:
Bolt On Meter Socket
Standards:
UL Listed;Type 3R
Terminal:
1/2 Inch Stud Line Side
Unspsc Number:
39121102
Voltage Rating:
240 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
480
Product Width:
24 IN
Department:
Electrical
Product Subgroup:
Metering & Meter Sockets
Product Group:
Power Distribution

Milbank U5067-X-2/200 – Frequently Asked Questions

1) Will the Milbank U5067-X-2/200 meter socket work on a 3-phase service?
No. The U5067-X-2/200 is a single-phase unit, 4 terminal (4 jaw), rated 240 volts AC at 60 Hz. For a 3-phase service you need a 7-jaw socket instead. The 4 jaw count is the giveaway: single-phase 3-wire metering only.
2) Does 480 amps on this Milbank meter socket mean I get 480A of breaker protection?
No, and this trips people up. The 480 continuous ampere figure is the socket and bus rating. Overcurrent protection comes from two 200 ampere main breakers, so each load side feeds a maximum of 200A. It is a 480A socket feeding 2 x 200A distribution, not a single 480A main.
3) What size conductors can I land on the line and load side of the U5067-X-2/200?
Line side takes two conductors per phase, 6 AWG through 350 kcmil, onto 1/2 inch studs. Each load side breaker terminal accepts 1 AWG through 300 kcmil. Equipment grounding is a 3 barrel ground lug. If your service lateral is parallel 250 or 350 kcmil, the double line side connectors handle it without splicing.
4) Can this Milbank meter socket be mounted outdoors on an exterior wall?
Yes. It is a UL Listed Type 3R enclosure, built for outdoor use, in G90 galvanized steel with a powder coat finish. Mounting is surface mount, so it goes flat against the wall or a rack rather than flush into it.
5) Will this socket accept an overhead service drop, or do I need a different unit for underground?
Either works. The U5067-X-2/200 is built for overhead or underground cable entry and ships with a large hub closing plate on top, so you knock it out and fit a service entrance hub for a mast, or leave it closed and bring the lateral in from below.
6) How much wall space do I need for the Milbank U5067-X-2/200?
The enclosure measures 6L x 24W x 45H inches, so plan on a 24 inch wide by 45 inch tall footprint with 6 inches of projection off the wall. Add NEC working clearance in front of it on top of that.
7) What does the link bypass on this meter socket actually do for me?
Link bypass lets you maintain power through the socket while the meter is pulled. On a multi-unit or commercial service where you cannot drop the load to swap or test a meter, the utility closes the bypass links and the service keeps running. Many utilities require bypass on sockets above a certain amperage, so check your local utility's approved equipment list before ordering.
8) Is this a combination meter main, or do I still need a separate panel?
It is a meter socket with main: one meter position plus the two 200A mains in the same can. It has no branch breaker spaces and no receptacles, so downstream distribution still needs a panelboard or load center fed from each 200A main.
9) Why would I pick a dual 200A meter main over a single large main?
Two 200A mains give you two separately protected feeds off one metered service, which suits a duplex, a house plus a shop or ADU, or a building where you want to split load between two panels without a separate distribution section. If all the load belongs on one panel, a single-main socket is simpler. The bolt-in 4 terminal design and 1/2 inch line side studs handle the full 480 ampere continuous rating feeding both.
10) Is the meter socket a bolt-in or a ringless clip type?
Bolt-in. The U5067-X-2/200 uses 4 bolt-in terminals rather than spring jaws, with glass polyester insulation behind them. Utilities that specify bolt-in metering for higher amperage services will accept this construction; if your utility requires a ringless socket with clip jaws, this is not the match.
11) What is the exact Milbank part number to order for the 480A dual 200A breaker meter socket?
Order Milbank U5067-X-2/200. It is part of Milbank's KSER product family, single-phase, 480 continuous ampere, with two 200A mains and link bypass.
