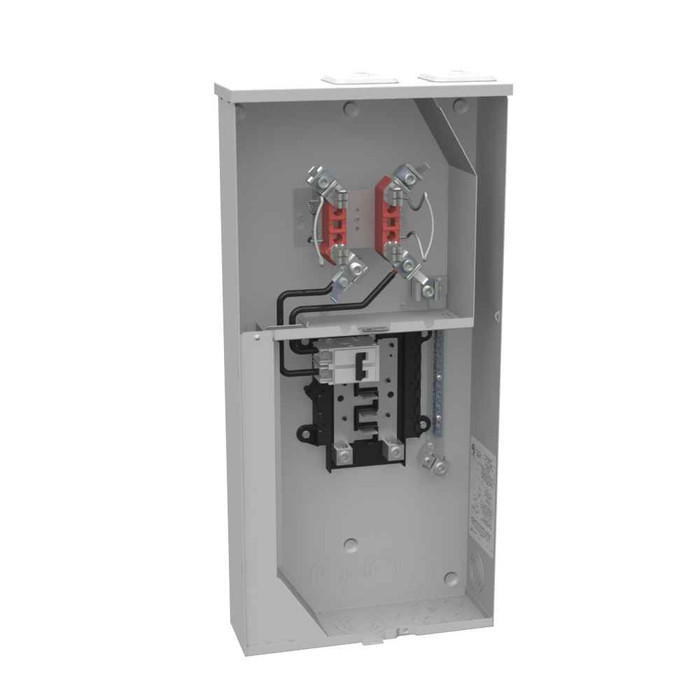

Milbank Ringless Meter Main with Load Center Combo - 100A, 1-Phase, Horn Bypass, 8-Circuit

Milbank Ringless Meter Main with Load Center Combo

Professional 100-Amp Single-Phase Electrical Service Solution

The Milbank Ringless Meter Main with Load Center Combo delivers reliable electrical service distribution with integrated metering and load management in a single unit. This 100-amp, 1-phase system features horn bypass provision and accommodates 8 branch circuits, constructed with G90 galvanized steel and powder coat finish for durability in Type 3R outdoor applications.

Professional Features & Benefits

• 100-Amp Main Breaker: Provides reliable overcurrent protection and service disconnect capability for residential and light commercial applications.
• 8-Circuit Load Center: Integrated branch circuit distribution eliminates need for separate load center installation, reducing material and labor costs.
• Horn Bypass Provision: Enables utility meter testing and service without interrupting customer power, supporting professional maintenance practices.
• Type 3R Enclosure Rating: Weather-resistant construction suitable for outdoor installation with protection against rain, sleet, and ice formation.
• G90 Galvanized Steel Construction: Superior corrosion resistance with powder coat finish ensures long-term durability in harsh environmental conditions.
• Ringless Meter Socket Design: Modern meter connection system provides secure utility interface with 4-terminal jaw configuration.
• UL Listed Certification: Meets rigorous safety standards for electrical equipment, ensuring code compliance and professional installation confidence.

Technical Specifications

• Application: Meter Socket With Main And Load Center
• Brand Name: Milbank
• Bypass Provision: Horn Bypass
• Cable Entry: Overhead or Underground
• Departent: Electrical
• Equipment Ground: Ground Bar
• Frequency Rating: 60 Hertz
• Hub Closing Plate: Twin Small Closing Plates
• Insulation: Glass Polyester
• Line Side Wire Range: 6 AWG - 350 kcmil
• Load Side Wire Range: 6 AWG - 350 kcmil
• Main Breaker Size: One 100 Ampere Main Breaker
• Number Branch Circuits: 8
• Number Of Jaws: 4 Terminal
• Number Of Main Breakers: 1
• Number Of Meter Positions: 1 Position
• Number Of Receptacles: 0
• Phase: 1 Phase
• Product Family Code: MTMN
• Product Height: 30 IN
• Product Length: 4.5 IN
• Product Material: G90 Galvanized Steel with Powder Coat Finish
• Product Mounting: Surface Mount
• Product Size: 4.5L x 14.125W x30H
• Product Type: Ringless Meter Socket
• Standard: UL Listed;Type 3R
• Terminal: Lay in
• Unspsc Number: 39121102
• Voltage Rating: Up to 240 Volts Alternating Current
• Width: 14.125 IN

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential Service Entrance Applications
• Small Commercial Buildings
• Multi-Unit Properties
• Mobile Home Parks
• Light Industrial Facilities
• Retail Establishments
• Professional Offices

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather-resistant construction. The G90 galvanized steel with powder coat finish provides superior corrosion protection, while the integrated design reduces installation complexity and ensures long-term performance in demanding electrical service applications.
