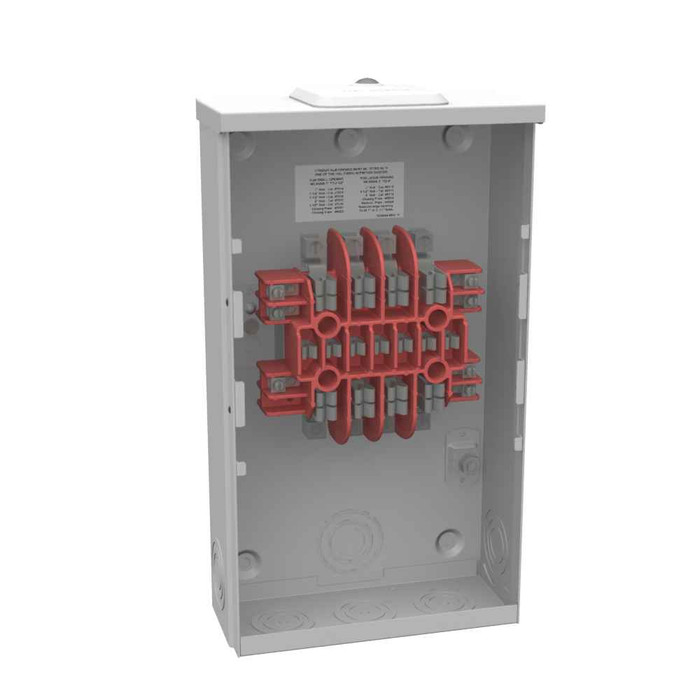

Milbank UC5732-XL 15 Terminal Ring Type Small Closing Plate

Milbank 15 Terminal Ringless Meter Socket 3 Phase 20A 600V with Small Closing Plate

(No reviews yet) Write a Review

Model: UC5732-XL

In Stock (leaves warehouse same day if ordered before 3pm ET)

$686.43
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Milbank 15 Terminal Ringless Meter Socket 3 Phase 20A 600V with Small Closing Plate

Professional 3-Phase Metering Solution with Durable Construction

The Milbank 15 Terminal Ringless Meter Socket delivers reliable 3-phase electrical metering for commercial and industrial applications. Engineered with G90 galvanized steel construction and powder coat finish, this UL Listed Type 3R rated meter socket provides 20 continuous ampere capacity at 600 volts AC. The surface mount design accommodates both overhead and underground cable entry with 12-10 AWG wire range compatibility and includes a small closing plate for complete installation flexibility.

Professional Features & Benefits

  • 20 Continuous Ampere Rating: Provides reliable current handling capacity for demanding 3-phase electrical metering applications.
  • 600V AC 3-Phase Configuration: Supports high-voltage commercial and industrial electrical systems with professional-grade voltage handling.
  • 15 Terminal Design: Offers comprehensive connection points for complex 3-phase metering installations and load distribution.
  • G90 Galvanized Steel with Powder Coat: Delivers superior corrosion resistance and long-term durability in harsh environmental conditions.
  • UL Listed Type 3R Rating: Ensures compliance with safety standards and weather-resistant performance for outdoor installations.
  • Overhead/Underground Cable Entry: Provides installation versatility for various electrical service configurations and site requirements.
  • Glass Polyester Insulation: Maintains electrical isolation and safety with high-performance insulating materials.

Technical Specifications

  • Amperage Rating: 20 Continuous Ampere
  • Application: Meter Socket
  • Brand Name: Milbank
  • Bypass Provision: No Bypass
  • Cable Entry: Overhead or Underground
  • Departent: Electrical
  • Equipment Ground: Ground Lug
  • Frequency Rating: 60 Hertz
  • Hub Closing Plate: Small Closing Plate
  • Insulation: Glass Polyester
  • Line Side Wire Range: 12 - 10 AWG
  • Load Side Wire Range: 12 - 10 AWG
  • Main Breaker Size: No Main Breaker
  • Number Of Jaws: 15 Terminal
  • Number Of Main Breakers: 0
  • Number Of Meter Positions: 1 Position
  • Number Of Receptacles: 0
  • Phase: 3 Phase
  • Product Family Code: CT20
  • Product Height: 14 IN
  • Product Length: 3.313 IN
  • Product Material: G90 Galvanized Steel with Powder Coat Finish
  • Product Mounting: Surface Mount
  • Product Size: 3.313L x 8W x14H
  • Product Type: Ringless Meter Socket
  • Standard: UL Listed;Type 3R
  • Terminal: Single Mechanical
  • Unspsc Number: 39121102
  • Voltage Rating: 600 Volts Alternating Current
  • Width: 8 IN

Professional Applications

  • Commercial Building Electrical Metering
  • Industrial Facility Power Distribution
  • Multi-Tenant Property Metering
  • Manufacturing Plant Electrical Systems
  • Warehouse and Distribution Centers
  • Professional Office Buildings
  • Retail and Commercial Establishments

Why Choose Milbank Quality?

Milbank delivers proven reliability with UL Listed certification and Type 3R weather-resistant rating for dependable outdoor performance. The G90 galvanized steel construction with powder coat finish ensures long-term durability and corrosion resistance, while the glass polyester insulation maintains electrical safety standards for professional electrical installations.

Manufacturer Resources

Product Specs

Amperage Rating:
20 Continuous Ampere
Application:
Meter Socket
Brand Name:
Milbank
Bypass Provision:
No Bypass
Cable Entry:
Overhead or Underground
Equipment Ground:
Ground Lug
Frequency Rating:
60 Hertz
Hub Closing Plate:
Small Closing Plate
Insulation:
Glass Polyester
Line Side Wire Range:
12 - 10 AWG
Load Side Wire Range:
12 - 10 AWG
Main Breaker Size:
No Main Breaker
Number Of Jaws:
15 Terminal
Number Of Main Breakers:
0
Number Of Meter Positions:
1 Position
Number Of Receptacles:
0
Phase:
3 Phase
Product Family Code:
CT20
Product Height:
14 IN
Product Length:
3.313 IN
Product Size:
3.313L x 8W x14H
Product Type:
Ringless Meter Socket
Standards:
UL Listed;Type 3R
Terminal:
Single Mechanical
Unspsc Number:
39121102
Voltage Rating:
600 Volts Alternating Current
Product Material:
G90 Galvanized Steel with Powder Coat Finish
Product Mounting:
Surface Mount
Amps:
20
Product Width:
8 IN
Department:
Electrical
Product Subgroup:
Electrical
Product Group:
Metering & Service Entrance

Milbank UC5732-XL – Frequently Asked Questions

1) Will a Milbank UC5732-XL 15 terminal meter socket work on a 3 phase 600V service?
That's exactly what the UC5732-XL is built for. It's rated 600 volts AC, 3 phase, 60 Hertz, with 15 jaws and a single meter position. The 20 continuous ampere rating is the socket's own continuous current rating, which is why this is a CT-family device (product family code CT20): it's metered through current transformers rather than carrying full service current across the jaws. If you're looking for a socket that carries the full load directly, this is not it.
2) What wire size lands in the Milbank UC5732-XL meter socket terminals?
12 to 10 AWG, on both the line side and the load side, into single mechanical terminals. That is CT secondary wiring size, not service conductor size, so don't plan on landing service entrance cable here. Equipment grounding is a ground lug.
3) Can the UC5732-XL ringless meter socket be mounted outdoors?
Yes. It's UL Listed and carries a Type 3R rating, which covers outdoor use against rain and falling debris. The enclosure is G90 galvanized steel with a powder coat finish, and it surface mounts to a wall or backboard.
4) Does the Milbank UC5732-XL have a meter bypass or a main breaker?
Neither. The UC5732-XL is a no-bypass socket with no main breaker and no receptacles, so pulling the meter interrupts metering with no lever bypass to hold service. If your utility requires a bypass provision, or you need overcurrent protection integral to the socket, you need a different Milbank socket, not this one.
5) What does ringless mean on a meter socket, and does my utility allow it?
Ringless means the cover itself seals over the meter instead of a separate sealing ring clamping the meter to the socket. The UC5732-XL is a ringless design, and whether that is accepted is decided by the serving utility, not the code book. Utilities publish a service handbook that specifies ring type or ringless for their territory. Check that before ordering, because the two are not interchangeable in the field.
6) Can I bring conduit in overhead or does the UC5732-XL require underground service?
Either works. Cable entry is rated for overhead or underground, and the socket ships with a small closing plate for the hub opening. That closing plate is what you leave in place for underground entry from the bottom; for an overhead feed you swap it for the correct hub for your conduit size and utility spec. The hub is a separate item.
7) Is a 15 jaw socket the same as a 7 jaw or 13 jaw meter socket?
No, and they are not interchangeable. Jaw count follows the meter form the utility assigns. The UC5732-XL is a 15 terminal socket for a single meter position on a 3 phase 600V system, wired as a CT installation with 12-10 AWG conductors. A 7 jaw socket takes a different meter entirely. Confirm the meter form your utility is setting before you buy the socket, because the meter has to match the jaw configuration.
8) How much wall space does the Milbank UC5732-XL meter socket need?
Plan on 3.313 x 8 x 14 inches (L x W x H) for the enclosure itself. It surface mounts, so you also need working clearance in front per your local code and enough room above or below for the service entry, depending on whether you're coming in overhead or underground.
9) Which Milbank part number do I order for a 15 jaw ringless CT rated socket with a small closing plate?
Milbank UC5732-XL. That's the 15 terminal ringless socket, 3 phase, 600V, 20 continuous amp, Type 3R, with the small closing plate. The closing plate size matters when you're matching an existing installation, because a large closing plate socket takes a different hub range.
10) Will the UC5732-XL hold up in a coastal or wash-down environment?
The enclosure is G90 galvanized steel with a powder coat finish, rated Type 3R. Type 3R covers rain, sleet and falling dirt for outdoor use, but it is not a wash-down or hosedown rating and it is not sealed against windblown dust. For a corrosive coastal exposure or a plant area that gets pressure washed, look at a stainless or Type 4X socket instead.
11) What keeps the meter jaws isolated inside the Milbank UC5732-XL socket?
Glass polyester. The jaw block is molded glass polyester, which is what holds the 600V rating and the phase to phase separation on a 3 phase socket. It's the standard insulating material for commercial metering enclosures and it will not track or carbonize the way a lower grade phenolic can in a damp outdoor cabinet.
