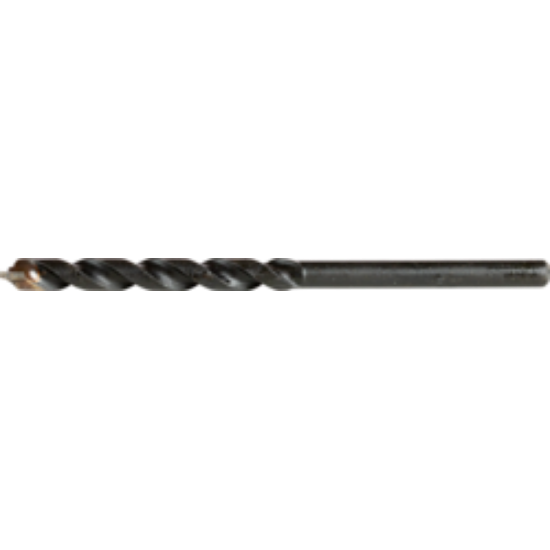

Minerallac Tungsten Carbide Masonry Drill Bit, Straight Shank

Minerallac Tungsten Carbide Masonry Drill Bit, Straight Shank

(No reviews yet) Write a Review

Model: 59914

In Stock (leaves warehouse same day if ordered before 3pm ET)

$7.73
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Minerallac 3/8" x 6" Tungsten Carbide Masonry Drill Bit with Straight Shank for Rotary Applications

Professional carbide masonry drilling for versatile rotary applications

The Minerallac 3/8" x 6" Tungsten Carbide Masonry Drill Bit delivers reliable performance for professional masonry drilling applications. This rotary-only carbide drill bit features a straight shank design compatible with portable rotary drills and drill presses up to 1000 RPM. Constructed with steel and finished with black oxide and gold head coating, this single-piece drill bit provides durability and precision for demanding masonry work.

Professional Features & Benefits

  • 3/8" Diameter: Optimal size for standard masonry drilling applications requiring precise hole dimensions
  • 6" Overall Length: Extended reach capability for deeper drilling requirements in masonry materials
  • Tungsten Carbide Point: Superior hardness and wear resistance for extended tool life in abrasive masonry materials
  • Straight Shank Design: Universal compatibility with standard rotary drill chucks and drill press applications
  • 1000 RPM Rating: Engineered for safe operation at high speeds with portable rotary drills and drill presses
  • Black Oxide & Gold Head Finish: Corrosion resistance and enhanced visibility for professional identification and longevity
  • Steel Construction: Robust material foundation providing strength and durability under drilling stress

Technical Specifications

  • Country Of Origin: Taiwan
  • Drill Point: 8-Mar
  • Number Of Pieces: 1
  • Overall Length: 6
  • Point Type: Tungsten Carbide
  • Product Finish: Black Oxide, Gold Head
  • Product Material: Steel
  • Product Type: Rotary Only Carbide Drill Bit
  • Shank Diameter: 8-Mar

Installation & Operation

  1. Mount the drill bit securely in the chuck of a compatible rotary drill or drill press with proper tightening.
  2. Connect power to the drill and verify proper rotation direction for the intended drilling operation.
  3. Position the drill bit perpendicular to the masonry surface and mark the drilling location as needed.
  4. Configure drill speed to appropriate RPM setting, not exceeding 1000 RPM maximum rating for safe operation.
  5. Test drilling operation with steady pressure and verify proper cutting performance before full-depth drilling.
  6. Complete drilling operation and inspect bit condition for ongoing maintenance and replacement planning.

Professional Applications

  • Residential masonry and concrete drilling projects
  • Commercial construction and renovation work
  • Professional contractor drilling operations
  • Industrial maintenance and repair applications
  • Electrical and plumbing installation drilling
  • General construction and building trades

Why Choose Minerallac Quality?

Minerallac delivers professional-grade drilling tools engineered for reliability and performance. This tungsten carbide masonry drill bit combines durable steel construction with advanced carbide point technology and protective black oxide finish, ensuring consistent results in demanding masonry drilling applications. Trust Minerallac quality for your professional drilling needs.

Manufacturer Resources

Product Specs

Product Type:
Masonry Drill Bit
Department:
Electrical
Product Subgroup:
Drill & Driver Bits
Product Finish:
Black Oxide, Gold Head
Product Material:
Steel
Product Group:
Power Tools & Accessories

Minerallac 59914 – Frequently Asked Questions

1) Can the Minerallac tungsten carbide masonry bit be used in a hammer drill or rotary hammer?
No. The Minerallac tungsten carbide masonry bit is a rotary-only carbide drill bit, meant for portable rotary drills and drill presses at speeds up to 1000 RPM. Running it in hammer mode or an SDS rotary hammer is outside what it is built for. If you need hammer action for concrete, you want an SDS-plus shank hammer bit instead, which this straight shank will not accept.
2) What sizes does the Minerallac 3/8 inch masonry drill bit come in?
Two lengths, both 3/8 inch diameter: 3/8 x 4 inch (part 59914) and 3/8 x 6 inch (part 59916). Same tungsten carbide point and straight shank on both; pick the 6 inch for deeper holes or where you need the extra reach past a stud or box, and the 4 inch where you want less flex and better control.
3) Is this bit good for drilling anchor holes in brick and block for electrical mounting?
That's the work it's made for. The tungsten carbide point handles brick, block, and masonry, and 3/8 inch is a common anchor hole size for strut, straps, and box mounting. Keep the drill at or below 1000 RPM, run it perpendicular to the surface, and use steady pressure rather than speed. For hard poured concrete with aggregate, a hammer drill with an SDS bit will cut faster.
4) Why is my carbide masonry bit burning up, and am I running it too fast?
Most likely yes. This bit is rated to a 1000 RPM maximum; most cordless drills on high gear spin well past that, which overheats the carbide and dulls it. Drop into low gear or dial the speed down, let the carbide scrape rather than spin, and pull out periodically to clear dust from the hole. Heat, not pressure, is what kills these points.
5) What is the Minerallac masonry bit made of, and does the carbide tip come as a separate insert?
The body is steel with a black oxide finish and a gold head, and the cutting point is tungsten carbide. It ships as a single-piece bit, one per pack, so there is nothing to assemble or braze on. The black oxide helps with corrosion resistance on a bit that lives in a damp gang box.
6) Where is the Minerallac masonry drill bit made?
Taiwan. That matters to anyone running a job with country-of-origin reporting or buy-American style procurement rules, so it is worth checking against your spec before you standardize on it for a public project.
