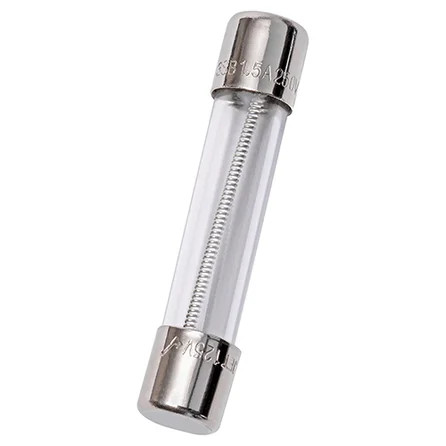

Mersen GDL Time-Delay Miniature Fuse 20A 32VAC 6.3x32mm Glass Body with Ferrule Terminals

Mersen GDL Time-Delay Miniature Fuse 20A 32VAC 6.3x32mm Glass Body with Ferrule Terminals

(No reviews yet) Write a Review

Model: GDL20

In Stock (leaves warehouse same day if ordered before 3pm ET)

$56.04
$30.20
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Mersen GDL Time-Delay Miniature Fuse 20A 32VAC 6.3x32mm Glass Body with Ferrule Terminals

Professional Time-Delay Circuit Protection for Low-Voltage Applications

The Mersen GDL Time-Delay Miniature Fuse delivers reliable 20A circuit protection at 32VAC with professional time-delay characteristics. Featuring a durable glass body construction and ferrule terminal connections, this supplemental class fuse provides precise overcurrent protection in a compact 6.3x32mm form factor. The clip mounting method ensures secure installation while the time-delay speed characteristic prevents nuisance tripping from temporary overloads.

Professional Features & Benefits

  • 20A Current Rating: Provides robust overcurrent protection for medium-load circuits and equipment applications.
  • Time-Delay Characteristic: Prevents nuisance tripping from motor starting currents and temporary overloads while maintaining fast fault clearing.
  • Glass Body Construction: Offers excellent insulation properties and visual indication of fuse status for easy maintenance.
  • Ferrule Terminal Design: Ensures reliable electrical connections and simplified installation in compatible fuse holders.
  • 6.3x32mm Size Format: Compact dimensions allow installation in space-constrained panels and equipment enclosures.
  • Supplemental Class Rating: Designed for branch circuit protection and equipment-specific overcurrent applications.
  • RoHS Compliant: Meets environmental standards for lead-free construction and responsible manufacturing practices.

Technical Specifications

  • Ac Or Dc: AC
  • Ampere Rating: 20 A
  • Body Insulating Material: Glass
  • Connection Terminal Type: Ferrule
  • Fuse Class: Supplemental
  • Fuse Size: 6.3x32
  • Mounting Method: Clip
  • Product Length: 1.25 in
  • Product Weight: 0.01 lb
  • Rated Voltage Ac Ul: 32 V
  • Rohs Compliant: Yes
  • Speed Characteristic: Time Delay

Installation & Operation

  1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
  2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
  3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
  4. Configure any available load management or control features as supported by the provided specifications.
  5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
  6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

  • Control Panel Circuit Protection
  • Electronic Equipment Overcurrent Protection
  • Motor Control Center Applications
  • Industrial Automation Systems
  • Low-Voltage Distribution Panels
  • Instrumentation and Control Circuits
  • Commercial Equipment Protection

Why Choose Mersen Quality?

Mersen delivers proven reliability in circuit protection with RoHS compliant construction and professional-grade glass body insulation. The supplemental class rating and time-delay characteristics provide dependable overcurrent protection while the lightweight 0.01 lb design and clip mounting method ensure efficient installation and maintenance in demanding applications.

Manufacturer Resources

Product Specs

Ac Or Dc:
AC
Ampere Rating:
20 A
Body Insulating Material:
Glass
Connection Terminal Type:
Ferrule
Fuse Class:
Supplemental
Fuse Size:
6.3x32
Mounting Method:
Clip
Product Length:
1.25 in
Product Weight:
0.01 lb
Rated Voltage Ac Ul:
32 V
Rohs Compliant:
Yes
Speed Characteristic:
Time Delay
