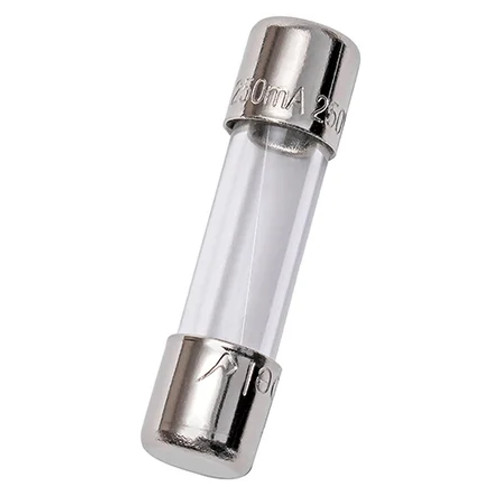

Mersen GGM Fast-Acting Miniature Glass Fuse 5A 125VAC 5x20mm Ferrule Terminal

Mersen GGM Fast-Acting Miniature Glass Fuse 5A 125VAC 5x20mm Ferrule Terminal

Professional Fast-Acting Circuit Protection for Electronic Applications

The Mersen GGM fast-acting miniature glass fuse delivers reliable 5A circuit protection at 125VAC in a compact 5x20mm form factor. This supplemental class fuse features glass body construction with ferrule terminals for secure clip mounting, providing professional-grade overcurrent protection for electronic circuits and equipment applications.

Professional Features & Benefits

• 5A Current Rating: Provides precise overcurrent protection for sensitive electronic circuits and components.
• Fast-Acting Response: Quickly interrupts fault currents to minimize damage to downstream equipment and circuits.
• 125VAC Voltage Rating: Suitable for standard AC voltage applications with reliable performance and safety compliance.
• Glass Body Construction: Offers visual indication of fuse status while providing excellent insulation properties.
• 5x20mm Compact Size: Space-efficient design fits standard miniature fuse holders and clips.
• Ferrule Terminal Design: Ensures secure electrical connections and reliable contact in clip-mounted applications.
• RoHS Compliant: Meets environmental standards for lead-free construction and responsible manufacturing.

Technical Specifications

• Ac Or Dc: AC
• Ampere Rating: 5:00 AM
• Body Insulating Material: Glass
• Connection Terminal Type: Ferrule
• Fuse Class: Supplemental
• Fuse Size: 5x20
• Mounting Method: Clip
• Product Length: 0.79 in
• Product Weight: 0.01 lb
• Rated Voltage Ac Ul: 125 V
• Rohs Compliant: Yes
• Speed Characteristic: Fast-Acting

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Electronic Equipment Protection
• Control Panel Circuits
• Instrumentation Systems
• Small Appliance Protection
• Power Supply Circuits
• Test Equipment Applications
• Industrial Control Systems

Why Choose Mersen Quality?

Mersen delivers proven reliability in circuit protection with RoHS compliant construction and supplemental class performance. The glass body design provides visual fuse status indication while maintaining excellent insulation properties, ensuring dependable protection for critical electronic applications.
