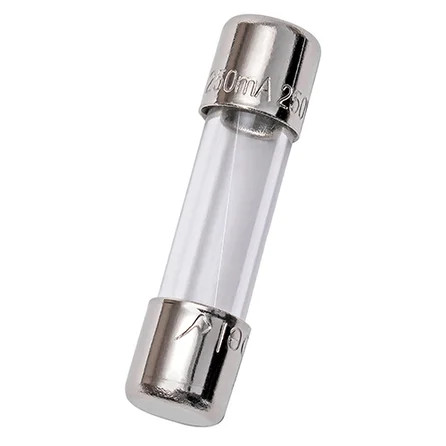

Mersen GGM1 Fast-Acting Glass Fuse 1A 250VAC 5x20mm Ferrule Terminal

Mersen GGM1 Fast-Acting Glass Fuse 1A 250VAC 5x20mm Ferrule Terminal

Professional miniature fuse protection for electrical circuits

The Mersen GGM1 delivers reliable fast-acting circuit protection with 1A current rating and 250VAC voltage capacity. This supplemental class miniature fuse features durable glass body construction with ferrule terminal connections in the standard 5x20mm size format. Designed for clip mounting applications, this professional-grade fuse provides dependable overcurrent protection for sensitive electrical equipment and control circuits.

Professional Features & Benefits

• 1A Current Rating: Provides precise overcurrent protection for low-amperage circuits and sensitive equipment applications.
• 250VAC Voltage Rating: Handles standard AC voltage applications with reliable performance and safety compliance.
• Fast-Acting Response: Quickly interrupts fault currents to protect downstream components from damage.
• Glass Body Construction: Offers visual inspection capability and reliable insulation properties for professional installations.
• 5x20mm Standard Size: Ensures compatibility with standard fuse holders and mounting systems.
• Ferrule Terminal Design: Provides secure electrical connections and easy installation in clip-mount applications.
• RoHS Compliant: Meets environmental standards for professional and commercial use.

Technical Specifications

• Ac Or Dc: AC
• Ampere Rating: 1:00 AM
• Body Insulating Material: Glass
• Connection Terminal Type: Ferrule
• Fuse Class: Supplemental
• Fuse Size: 5x20
• Mounting Method: Clip
• Product Length: 0.79 in
• Product Weight: 0.01 lb
• Rated Voltage Ac Ul: 250 V
• Rohs Compliant: Yes
• Speed Characteristic: Fast-Acting

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Control Panel Protection
• Electronic Equipment Circuits
• Instrumentation Systems
• Low-Voltage Control Applications
• Supplemental Circuit Protection
• Industrial Automation Equipment
• Commercial Building Systems

Why Choose Mersen Quality?

Mersen delivers professional-grade circuit protection with RoHS compliant construction and supplemental class performance. The glass body design enables visual inspection while providing reliable insulation, ensuring dependable protection for critical electrical systems and equipment.
