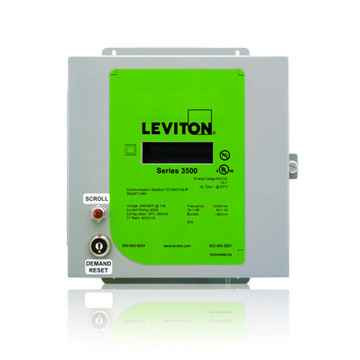

Leviton 3NUMT-50M Modbus TCP/BACnet IP - IndoorSeries 3500 Multi-Function Universal Voltage (208-480VAC) 3 PHASE 3W/4W 5000A

Leviton 3NUMT-50M Modbus TCP/BACnet IP - IndoorSeries 3500 Multi-Function Universal Voltage (208-480VAC) 3 PHASE 3W/4W 5000A

(No reviews yet) Write a Review

Model: LEV-3NUMT-50M
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,394.74
$2,344.74
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Modbus TCP/BACnet IP - IndoorSeries 3500 Multi-Function Universal Voltage (208-480VAC) 3 PHASE 3W/4W 5000A

  • Features

    • 208/480V 2PH 2W, 120/208V 2PH 3W, 240/480V 3PH 3W, 120/208V, 277/480V 3PH 4W, 240/480V 3PH 4W DELTA
    • Certified to all applicable standards of ANSI C12.1
    • 100-5000 Amps
    • Up to three sets of CTs per phase can be paralleled per meter
    • Isolated pulse output
    • Utilizes split and solid core current transformers (CTs) that are certified to all revenue grade accuracy standards
    • Series 3500: Enabled by Ethernet, uses Modbus TCP/IP and BACnet IP
    • Integrates easily with building management systems
    • Highly accurate 0.5% accuracy class
    • Delivers universal voltage performance
    • Outputs kWh, Demand - Instant & Peak, Per Phase & Total kWh, kW, kVAR, VAR, AMPS Interval Data

Manufacturer Resources

Product Specs

Amperage:
5000 A
Communication:
Pulse Output, Ethernet, ModBus TCP/IP, BACnet IP
Cts Included:
No Meter Only
Enclosure:
Indoor (NEMA 1)
Meter Configuration:
Single Meter
Product Line:
Series 3500
Voltage:
Universal
Product Group:
Electrical
!
