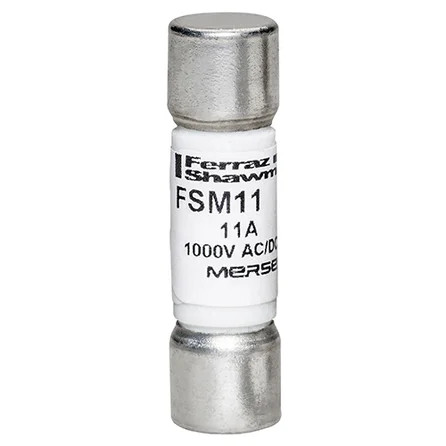

Mersen FSM11 Multi-Meter Fuse 11A 1000VAC/1000VDC Fast-Acting Ferrule Terminal

Mersen FSM11 Multi-Meter Fuse 11A 1000VAC/1000VDC Fast-Acting Ferrule Terminal

Professional Fast-Acting Protection for Multi-Meter Applications

The Mersen FSM11 multi-meter fuse delivers reliable fast-acting protection with 11A rating and dual voltage capability of 1000VAC/1000VDC. This midget class fuse features tin-plated copper ferrule terminals and GMG body insulating material for dependable performance in professional measurement and testing applications. With 20kA breaking capacity and clip mounting method, this fuse provides essential overcurrent protection for sensitive multi-meter circuits.

Professional Features & Benefits

• 11A Current Rating: Provides precise overcurrent protection for multi-meter applications requiring moderate current handling capacity.
• 1000VAC/1000VDC Dual Voltage: Versatile voltage compatibility supports both AC and DC measurement circuits in professional testing environments.
• 20kA Breaking Capacity: High interrupting rating ensures reliable fault current interruption and circuit protection under demanding conditions.
• Fast-Acting Response: Quick response characteristic provides immediate protection against overcurrent conditions to safeguard sensitive measurement equipment.
• Tin-Plated Copper Ferrule Terminals: Corrosion-resistant terminal construction ensures reliable electrical connections and long-term performance.
• GMG Body Insulating Material: Professional-grade insulating material provides excellent electrical isolation and mechanical durability.
• Midget Class Design: Compact 1.5-inch length and 0.016 lb weight enables space-efficient installation in multi-meter applications.

Technical Specifications

• Ac Max I R Breaking Capacity I1: 20 kA
• Ac Or Dc: AC/DC
• Ampere Rating: 11:00 AM
• Body Insulating Material: GMG
• Connection Terminal Material: Tin-Plated Copper
• Connection Terminal Type: Ferrule
• Frequency Hz : 50/60 Hz
• Fuse Class: Midget
• Mounting Method: Clip
• Product Length: 1.5 in
• Product Weight: 0.016 lb
• Rated Voltage Ac Ul: 1000 V
• Rated Voltage Dc Ul: 1000 V
• Speed Characteristic: Fast-Acting

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Multi-Meter Protection Circuits
• Electronic Test Equipment
• Laboratory Measurement Systems
• Industrial Testing Applications
• Professional Service Equipment
• Calibration Laboratory Instruments
• Quality Control Testing Stations

Why Choose Mersen Quality?

Mersen FSM11 multi-meter fuses combine fast-acting protection with professional-grade construction featuring tin-plated copper terminals and GMG insulating material. The midget class design with clip mounting provides reliable overcurrent protection in compact measurement applications, delivering the dependable performance professionals expect from Mersen electrical protection solutions.
