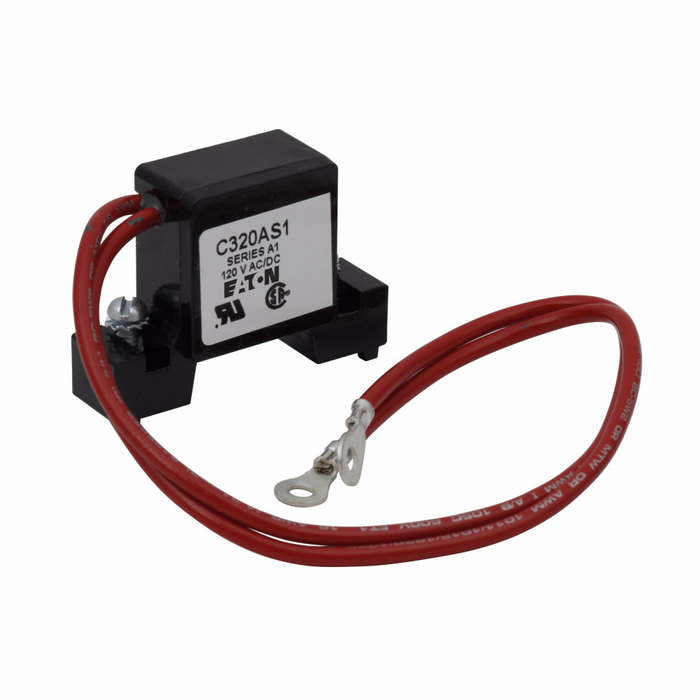

Eaton NEMA Freedom Transient Suppressor Accessory

Eaton NEMA Freedom Transient Suppressor Accessory

(No reviews yet) Write a Review

Model: C320AS1

In Stock (leaves warehouse same day if ordered before 3pm ET)

$338.59
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton NEMA Freedom Transient Suppressor Accessory

The Eaton NEMA Freedom Transient Suppressor Accessory is a compact, UL Listed component engineered for use with NEMA Freedom starters and contactors. Measuring 1.2 in wide, 1.9 in long/deep, and 2.3 in high, this transient suppressor mounts on top of any side-mounted auxiliary contact and connects across the coil to help manage transient voltage conditions in motor control circuits. As part of Eaton's NEMA Freedom Accessories line, it is built to integrate cleanly with existing Eaton starter and contactor assemblies for reliable, code-compliant motor control performance.

Key Features

  • Compact Footprint: Product dimensions of 1.2 in (width) x 1.9 in (length/depth) x 2.3 in (height) allow the suppressor to mount without adding significant bulk to the assembly.
  • Auxiliary Contact Mounting: Mounts on top of any side-mounted auxiliary contact for a streamlined, space-saving installation.
  • Coil Connection: Connects across the coil, positioning the suppressor directly where transient suppression is needed most.
  • Purpose-Built Type: Classified as a NEMA Freedom Accessories Transient Suppressor, designed specifically for this Eaton product family.
  • Compatibility: Used with Eaton Starters and Contactors, supporting consistent performance across compatible assemblies.
  • Special Features: Intended for use with Starters and Contactors as a dedicated accessory component.

Certifications & Compliance

  • UL Listed

Technical Specifications

  • Product Type: Electrical Component
  • Department: Electrical
  • Product Width: 1.2 in
  • Product Length/Depth: 1.9 in
  • Product Height: 2.3 in
  • Type: NEMA Freedom Accessories
  • Product Category: Transient Suppressor
  • Used with: Used with Starters and Contactors
  • Certifications: UL Listed
  • Warranty: Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.

Typical Applications

  • Motor Control and Protection Assemblies
  • Starter and Contactor Coil Circuits
  • Industrial Motor Control Panels
  • Commercial and Industrial Electrical Installations
  • Retrofit and Upgrade of Existing Eaton Starter/Contactor Setups

Why Eaton?

Eaton engineers this NEMA Freedom Transient Suppressor Accessory as a UL Listed component built to work seamlessly with its Starters and Contactors, giving electrical professionals a dependable way to add coil-level transient suppression without complicating an installation. The straightforward auxiliary-contact mounting and coil connection reflect Eaton's focus on practical, code-compliant solutions for motor control applications.

Manufacturer Resources

Product Specs

Product Width:
1.2 in
Used with:
Used with Starters and Contactors
Product Category:
Transient Suppressor
Product Length/Depth:
1.9 in
Special features:
Used with Starters and Contactors
Product Height:
2.3 in
Product Type:
Transient Suppressor
Certifications:
UL Listed
Department:
Electrical
Listing:
UL Listed
Product Group:
Circuit Protection
Product Subgroup:
Surge Protection

Eaton C320AS1 – Frequently Asked Questions

1) What does the Eaton C320AS1 transient suppressor do in a motor starter circuit?
The C320AS1 is a transient suppressor for Eaton NEMA Freedom starters and contactors. It wires across the contactor coil, so it deals with the voltage transient generated when the coil de-energizes, right at the source. That matters when the same control circuit feeds PLC inputs or other solid-state devices that are sensitive to coil kickback.
2) How does the C320AS1 suppressor mount on an Eaton Freedom starter?
It mounts on top of any side-mounted auxiliary contact on the starter or contactor, then lands across the coil. No separate bracket or panel space is needed, which is the point of the design: you give up the top of an aux contact position rather than DIN rail real estate.
3) Do I need a side-mounted auxiliary contact already installed to use this suppressor?
Yes. The C320AS1 mounts on top of a side-mounted auxiliary contact, so that auxiliary contact has to be on the starter or contactor first. If the unit has no side aux contact fitted, order one along with the suppressor.
4) Will this Eaton suppressor work on another brand of contactor?
No. The C320AS1 is a NEMA Freedom accessory, dimensioned and keyed for Eaton Freedom starters and contactors and their side-mounted auxiliary contacts. For a different manufacturer's contactor, use that manufacturer's own coil surge suppressor module.
5) Will the Eaton C320AS1 fit in my existing enclosure without adding depth?
Footprint is 1.2 in wide by 1.9 in long/deep by 2.3 in high. Because it stacks on top of an aux contact rather than beside the contactor, the number to watch is the 2.3 in height above the aux contact position, not the panel width.
6) Is the Eaton NEMA Freedom transient suppressor UL Listed?
Yes, the C320AS1 is UL Listed, which is what a plan reviewer or facility inspector will look for on an accessory added inside a motor control panel.
7) Can I add the C320AS1 to starters that are already installed and running?
Yes, it is built for retrofit as well as new builds. Since it clips onto an existing side-mounted auxiliary contact and ties across the coil, adding coil suppression to an in-service Eaton Freedom starter does not mean rebuilding the assembly. Work de-energized.
8) How many suppressors do I need for a panel full of starters?
One per coil. The C320AS1 connects across a single contactor coil, so a panel with six Freedom starters that all need suppression takes six units, each on its own side-mounted aux contact.
