NGP 1013 Saddle Threshold 1/4"...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$327.17

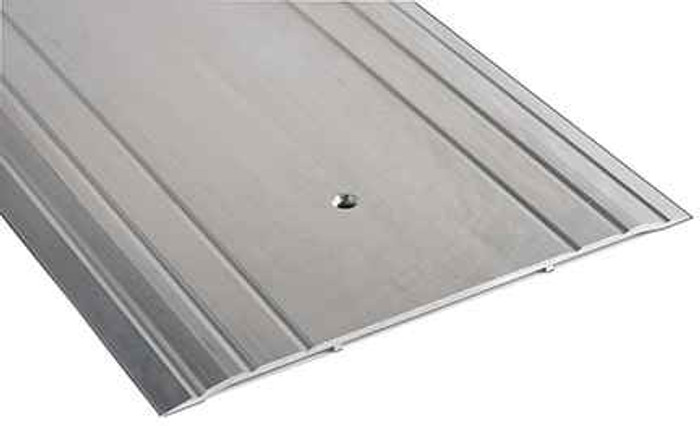

NGP 1013 Saddle Threshold 1/4" x 10" Mill Aluminum with BHMA Certification

NGP 1013 Saddle Threshold 1/4" x 10" Mill Aluminum with BHMA Certification

(No reviews yet) Write a Review

Model: 1013-72
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$327.17
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP Saddle Threshold 1/4" x 10" Mill Aluminum with BHMA Certification

Professional Door Threshold Solution

The NGP Saddle Threshold delivers commercial-grade performance with precision-engineered aluminum alloy 6063 construction in T5 temper. This 10" wide x 1/4" tall threshold features a fluted top design for enhanced traction and is BHMA certified to ANSI/BHMA A156.21 with 1,000 lb. load test rating. The mill aluminum finish provides durability for high-traffic applications, with typical wall thickness of .125" and weight of 1.63 lbs./ft.

Professional Features & Benefits

  • Precision Dimensions: 10" wide x 1/4" tall profile designed for standard door applications with optimal clearance and performance.
  • Heavy-Duty Load Rating: BHMA certified to ANSI/BHMA A156.21 with 1,000 lb. load test for reliable performance in commercial environments.
  • Premium Construction: Aluminum alloy 6063 with T5 temper provides exceptional strength-to-weight ratio and corrosion resistance.
  • Enhanced Safety Design: Fluted top surface provides improved traction and slip resistance for pedestrian safety.
  • Professional Installation: Includes #10 x 1-1/2" FH zinc plated wood screws for secure mounting and long-term reliability.
  • Lightweight Efficiency: At 1.63 lbs./ft., provides structural performance without excessive weight burden on door systems.
  • Optional Slip-Resistant Finish: SIA slip-resistant finish available for hazardous conditions where safety is a priority.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Door Thresholds
  • Product Type: Thresholds - Saddle
  • Series: Saddle Threshold Series
  • Subcategory: Thresholds

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose NGP Quality?

NGP Saddle Threshold products deliver professional-grade reliability with aluminum alloy 6063 construction and T5 temper rated for 1,000 lb. load capacity per BHMA certification. The precision-engineered design with .125" typical wall thickness ensures consistent performance in demanding commercial applications where dependable threshold performance is essential.

Manufacturer Resources

NGP Threshold Catalog

Product Specs

Product Group:
Door Trim and Accessories
Series:
Saddle Threshold Series
Product Subgroup:
Door Thresholds
Product Type:
Thresholds - Saddle
Subcategory:
Thresholds
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 1013-72 – Frequently Asked Questions

1) Will the NGP 1013 saddle threshold work under a door that needs ADA-compliant clearance?
The 1013 stands 1/4 inch tall, so it sits well under the 1/2 inch maximum change in level that governs accessible openings, and the top is flat and fluted rather than ramped. If you need a wider landing across the sill, the 10 inch width covers a lot of subfloor transition; a 6 inch profile like the Pemko 272 Series flat saddle covers less floor if your frame depth is tight.
2) What lengths does the NGP 1013 threshold come in, and which one do I need for a standard 3-0 door?
Five lengths: 36, 48, 72, 74 and 84 inches. A single 3-0 opening takes the 36 inch piece. The 72 and 74 inch pieces are for pairs of doors, and 84 inch covers a pair with a mullion or wider frame throat. Both mill aluminum and dark bronze are stocked in all five lengths.
3) Does the NGP 1013 saddle threshold come with fasteners or do I need to buy anchors separately?
#10 x 1-1/2 inch flat head zinc plated wood screws ship with the threshold. Those are wood screws, so they land in a wood subfloor or a wood buck as supplied. Going into concrete or into a slab, you supply your own anchors and drill the saddle to suit.
4) Is the Pemko 272 threshold a drop-in replacement for an NGP 1013?
Not on width. Both are 1/4 inch high aluminum flat saddle thresholds, so the height above the finished floor and the door undercut work out the same. But the Pemko 272 Series is 6 inches wide against the 10 inches of the NGP 1013, so it will not cover the same footprint at the sill, and any anchor pattern or existing screw holes laid out for a 10 inch saddle will not line up. If you are replacing 1013s across a fleet of doors and want the sill to look and sit the same, stay at the 10 inch width.
5) Can I get the NGP 1013 threshold with a non-slip surface for an entrance that gets wet?
Two levels of traction here. The standard 1013 has a fluted top, which is the ribbed extruded surface that breaks up a wet footfall. For genuinely hazardous conditions, NGP offers the SIA slip-resistant finish as an option on the saddle. Building lobbies and back-of-house doors that see rain or washdown are where that option is worth specifying.
6) I'm replacing thresholds across a building. Will the NGP 1013 match the dark bronze on my existing doors?
Dark bronze and mill aluminum are the two finishes, and both run the full 36 to 84 inch length range, so a mixed building of single and pair openings can be standardized on one finish. Mill aluminum is the raw uncoated extrusion, silver and unfinished; dark bronze is the darker anodized look that pairs with bronze frames and hardware. Order one of each length in the finish you already have and every opening reads the same.
7) I need a dark bronze saddle threshold to match my other door hardware - which one do I order?
The NGP 1013 is made in dark bronze as well as mill aluminum, in 36, 48, 72, 74 and 84 inch lengths in either finish, so a bronze sill can be matched across a run of doors from one part number. The peer saddle thresholds - the Cal-Royal CR 2000 Series and CR 3700 Series and the Pemko 272 Series - are the parts to look at when the rating or the width drives the choice rather than the finish.
