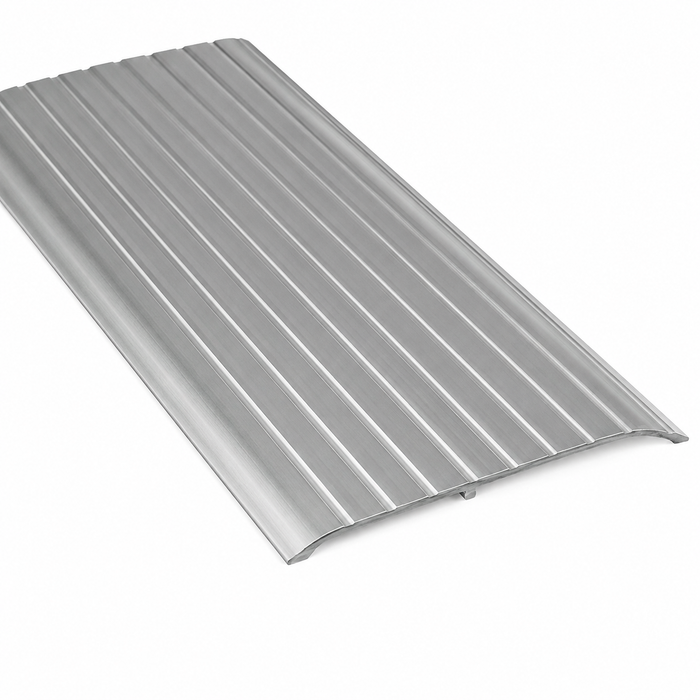

NGP 655 Offset Threshold 36" x 5-1/2" Wide Milled Aluminum Commercial Door Saddle

NGP 655 Offset Threshold 36" x 5-1/2" Wide Milled Aluminum Commercial Door Saddle

(No reviews yet) Write a Review

Model: 655-36

In Stock (leaves warehouse same day if ordered before 3pm ET)

$81.60
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP 655 Offset Threshold 36" x 5-1/2" Wide Milled Aluminum Commercial Door Saddle

Professional Aluminum Door Threshold Solution

The NGP 655 Offset Threshold delivers commercial-grade door sealing performance with precision-engineered aluminum construction. This 36" x 5-1/2" wide threshold features aluminum alloy 6063 with T5 temper for exceptional durability and a fluted top design for enhanced traction. At 3/4" tall with typical wall thickness of .125", this offset-hung threshold provides reliable weatherproofing for commercial door applications.

Professional Features & Benefits

  • Precision Dimensions: 36" length x 5-1/2" width x 3/4" height designed for standard commercial door openings with offset installation requirements.
  • Heavy-Duty Aluminum Construction: Aluminum alloy 6063 with T5 temper provides superior strength and corrosion resistance for long-term performance.
  • Enhanced Safety Design: Fluted top surface provides improved traction and slip resistance for safe pedestrian traffic.
  • Lightweight Efficiency: At .84 lbs./ft., the threshold offers easy handling and installation while maintaining structural integrity.
  • Complete Installation Package: Includes #10 x 1-1/2" FH zinc plated wood screws for secure mounting to door frames.
  • Professional Mill Finish: Milled aluminum finish provides clean appearance suitable for commercial applications with optional SIA slip-resistant finish available.
  • Commercial-Grade Application: Engineered for areas where hazardous conditions require priority safety considerations and reliable performance.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Hang Type: Offset Hung
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Door Thresholds
  • Product Type: Thresholds - Saddle
  • Series: Offset Threshold Series
  • Subcategory: Thresholds

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose NGP Quality?

NGP threshold products deliver professional-grade reliability with aluminum alloy 6063 T5 temper construction rated for demanding commercial applications. The precision-engineered fluted top design and .125" wall thickness ensure dependable weatherproofing performance where safety is a priority. Engineered for commercial environments where reliable door sealing and pedestrian safety are essential.

Manufacturer Resources

NGP Threshold Catalog

Product Specs

Product Group:
Door Trim and Accessories
Series:
Offset Threshold Series
Product Subgroup:
Door Thresholds
Product Type:
Thresholds - Saddle
Subcategory:
Thresholds
Commercial/Residential:
Commercial
Hang Type:
Offset Hung
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 655-36 – Frequently Asked Questions

1) Will the NGP 655 threshold work with an offset hung door?
That's exactly what the 655 is built for. It's an offset hung threshold, meaning the door sits back from the face of the saddle rather than centered on it, so the 5-1/2 inch width gives you a wide interior leg on one side and the door stop/seal line on the other. If your door is centered over the saddle rather than offset, this is the wrong profile.
2) What lengths does the NGP 655 offset threshold come in?
Two: 36 inches and 72 inches. The 36 inch covers a standard single commercial door opening, and the 72 inch is what you want for a pair of doors or for cutting down to a non-standard single. Aluminum saddles like this are routinely cut to length on site with a miter saw and a non-ferrous blade, so buying the 72 inch and trimming is normal practice.
3) How high does the NGP 655 saddle sit, and will it clear my door bottom?
The 655 stands 3/4 inch tall. You need at least that much undercut between the door bottom (or the bottom of any door sweep or shoe you're running) and the finished floor, or the door will drag. On an offset hung opening the door swings over the raised portion, so measure from the door bottom edge, not from the stop.
4) I need a low-profile ADA threshold instead of a raised saddle. What should I look at?
The 655 is a 3/4 inch tall offset saddle, which is a raised profile. If you need a flat, low-rise transition, the Pemko 272 Series is a 1/4 inch x 6 inch flat saddle threshold described as ADA compliant. That's the one to specify on a barrier-free opening where the 3/4 inch rise is a problem.
5) Can I use the NGP 655 threshold on a fire rated door opening?
For a rated opening you want a threshold the manufacturer states a fire rating for. The Cal-Royal CR3700 Series saddle threshold carries a 3-hour positive pressure fire rating, and the Cal-Royal CR2000 Series is described as fire rated and ADA compliant. Either of those is the safer specification when the drawing calls out a rated assembly.
6) I need a threshold for a 3-hour rated door opening. Is the NGP 655 the right part?
For an opening that has to carry a 3-hour positive pressure fire rating, the Cal-Royal CR3700 saddle threshold series is built for it. The NGP 655 is a commercial offset hung aluminum saddle at 5-1/2 inches wide by 3/4 inch tall with a fluted walking surface, specified for commercial traffic and traction rather than for a stated fire rating. If the drawing calls out a positive pressure fire rating at the sill, specify the CR3700 series.
7) Which saddle threshold should I use if the opening has to be both ADA compliant and fire rated?
The Cal-Royal CR2000 saddle threshold series is designed as both fire rated and ADA compliant, which covers an opening carrying both requirements at once. The Pemko 272 Series is ADA compliant at a 1/4 inch by 6 inch flat profile. The NGP 655 is a 3/4 inch tall offset hung threshold with a fluted top for traction, sized for offset door conditions in commercial buildings.
8) Does the NGP 655 threshold come with fasteners, or do I need to buy screws separately?
Screws are in the box: #10 x 1-1/2 inch flat head zinc plated wood screws. Those are sized for wood substrate. If you're anchoring into concrete, which is the usual case on an exterior commercial opening, you'll need to supply your own masonry anchors and drill the saddle accordingly.
9) Is the NGP 655 threshold slippery when wet?
The top face is fluted, which is the standard mill-finish aluminum answer for traction underfoot. NGP also offers an SIA slip-resistant finish on the 655 if the opening is a wet entry, a pool deck, or anywhere foot traffic safety is being specified rather than assumed. Plain milled aluminum is the default.
10) How wide a floor opening does the NGP 655 cover?
5-1/2 inches across the face, at 36 or 72 inches of length. That width is enough to bridge a typical sill gap and land on both sides of the frame line on a commercial exterior opening. If you're only covering a narrow interior floor transition, a 5-1/2 inch saddle is more threshold than the job needs.
11) Is the Pemko 272 a drop-in replacement for an NGP 655?
Not a straight swap. The NGP 655 measures 5-1/2 inches wide and 3/4 inch tall and is made for offset hung doors, so the existing anchor pattern and the door bottom clearance are set for that profile. The Pemko 272 Series is a flat saddle at 1/4 inch by 6 inch, so it is a half inch shorter at the sill and a half inch wider across the opening. Swapping to it means re-drilling anchors and rechecking the gap under the door leaf.
12) Is the milled aluminum finish on the NGP 655 going to match my existing thresholds?
Mill finish is bare, uncoated aluminum, so it reads as a natural silver grey and weathers to a duller tone over time. If the other openings in your building already run mill finish aluminum saddles, this will blend. If they're anodized dark bronze or painted, it won't, and mixing them across a lobby will show.
