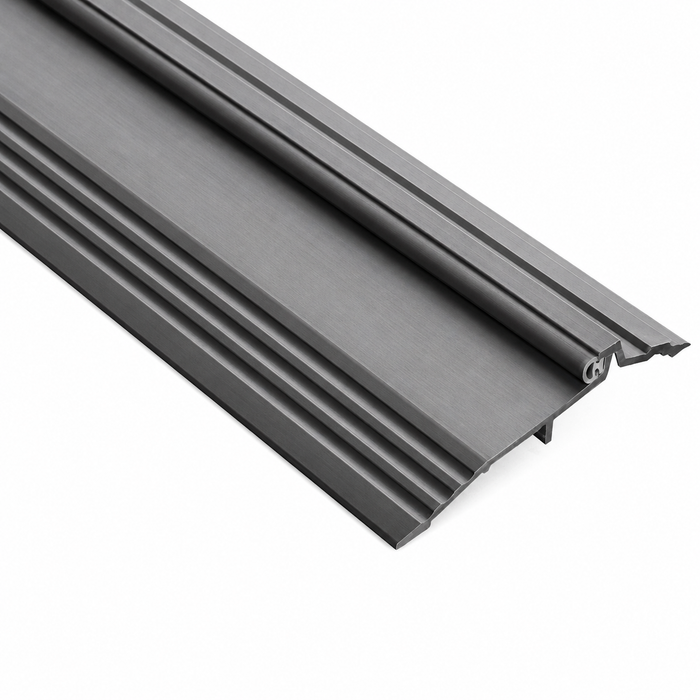

NGP 804V Bumper Seal Threshold with Vinyl Seal - 7/8" x 5" Mill Aluminum

Professional Door Threshold Solution with Integrated Bumper Seal

The NGP 804V Bumper Seal Threshold combines durable aluminum construction with an integrated vinyl seal for effective door bottom sealing. Manufactured from aluminum alloy 6063 with T5 temper, this 5" wide x 7/8" tall threshold features 0.105" typical wall thickness and weighs 0.80 lbs/ft. The included NGP-TPV bumper seal provides reliable weather sealing, while the mill aluminum finish offers versatile appearance options for commercial applications.

Professional Features & Benefits

  • Precise Dimensions: 5" wide x 7/8" tall profile designed for standard door applications with consistent sealing performance.
  • Heavy-Duty Construction: Aluminum alloy 6063 with T5 temper provides exceptional durability and corrosion resistance for long-term performance.
  • Integrated Seal System: Includes NGP-TPV bumper seal with gray vinyl for effective weather sealing and draft protection.
  • Professional Wall Thickness: 0.105" typical wall thickness ensures structural integrity while maintaining optimal weight at 0.80 lbs/ft.
  • Complete Installation Package: Furnished with #10 x 1-1/2" FH zinc plated wood screws for secure mounting (Dark Bronze screws supplied with DKB thresholds).
  • Finish Options: Available in Aluminum Mill and Dark Bronze finishes, with optional SIA slip-resistant finish for enhanced safety in hazardous conditions.
  • Safety Enhancement Option: Optional SIA slip-resistant finish available for use in areas where conditions can be hazardous and safety is a priority.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Door Thresholds
  • Product Type: Bumper Seal Thresholds
  • Subcategory: Thresholds

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose NGP Quality?

NGP bumper seal thresholds deliver professional-grade reliability with aluminum alloy 6063 T5 temper construction rated at 0.80 lbs/ft for optimal strength-to-weight performance. The integrated NGP-TPV bumper seal system and precision 0.105" wall thickness ensure consistent sealing performance in demanding commercial applications. Engineered for dependable weather protection where effective door bottom sealing is essential.

Manufacturer Resources

NGP Threshold Catalog

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Door Thresholds
Product Type:
Bumper Seal Thresholds
Subcategory:
Thresholds
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 804V-36 – Frequently Asked Questions

1) What size opening does the NGP 804V threshold fit, and what lengths can I get?
The 804V is a 5 inch wide by 7/8 inch tall aluminum threshold, offered in 36, 42, 72 and 84 inch lengths. The 36 inch covers a standard single door, 42 inch suits a 42 inch wide leaf, and the 72 and 84 inch lengths are for pairs of doors or wide openings. Aluminum extrusion cuts cleanly with a miter saw if you need to trim to an exact opening width.
2) Does the NGP 804V come with the vinyl seal and the mounting screws, or do I order those separately?
Both come with it. The 804V ships with the NGP-TPV bumper seal in gray vinyl already accounted for, plus #10 x 1-1/2 inch flat head zinc plated wood screws for mounting. If you order the Dark Bronze version, the screws supplied are Dark Bronze to match. Nothing else is required to set it other than sealant under the extrusion if you want a weather-tight substrate joint.
3) How does a bumper seal threshold like the 804V actually seal, and when should I use one instead of a plain saddle threshold?
A bumper seal threshold carries a raised vinyl stop that the door bottom closes against, so the seal is made by the face of the door hitting the vinyl rather than by a sweep dragging across the top of the threshold. That makes the 804V a good choice on exterior and weather-exposed commercial openings where you want draft and water control without a wearing sweep. If the door has to swing over the threshold with no stop, or you are dealing with ADA-sensitive floor height, a flat saddle or low-profile threshold is the better pick. Note the 7/8 inch height of the 804V when you check floor transition.
4) Can I get the NGP 804V in something other than mill aluminum to match bronze hardware?
Yes. Two finishes are stocked, Mill Aluminum and Dark Bronze, and both are available in all four lengths (36, 42, 72 and 84 inch). Dark Bronze ships with matching Dark Bronze screws so the fasteners do not stand out on a finished entry.
5) Can the vinyl bumper seal on the 804V be replaced later without pulling the threshold?
The seal is a separate insert, the NGP-TPV gray vinyl bumper, carried in the extrusion rather than bonded to it. That means when the vinyl takes a set or tears, you order the TPV insert and swap it, leaving the aluminum base and its screws in the floor. For a property manager standardizing a building, that is the argument for spec'ing one threshold profile across all exterior doors.
6) Will the 804V work on a concrete slab, or is it only for wood sub-floors?
The screws furnished are #10 x 1-1/2 inch flat head wood screws, so as supplied it mounts into wood. Setting it on concrete works, but you will need to drill the slab and provide your own anchors (sleeve or plastic anchors sized to the 804V's screw holes) since masonry fasteners are not part of the package.
7) Is there a slip-resistant version of the 804V for wet entryways?
NGP offers an optional SIA slip-resistant finish on this threshold for areas where conditions can be hazardous. It is specified as an option on the order rather than being part of the standard Mill Aluminum or Dark Bronze extrusion, so call it out when you place the order for pool decks, kitchen entries, or exterior doors that see standing water.
