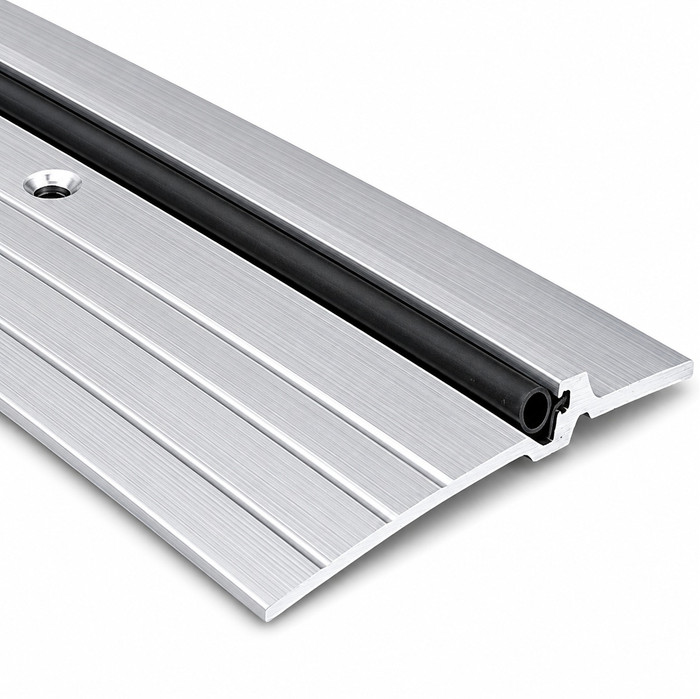

NGP 896N ADA Compliant Aluminum Bumper Threshold, 1/2" x 5"

NGP 896N ADA Compliant Aluminum Bumper Threshold 1/2" x 5" with Neoprene Seal

(No reviews yet) Write a Review

Model: 896N 36

In Stock (leaves warehouse same day if ordered before 3pm ET)

$84.42
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP ADA Compliant Aluminum Bumper Threshold 1/2" x 5" with Neoprene Seal

Professional ADA Compliant Threshold Solution

The NGP 896N aluminum bumper threshold delivers ADA compliant door sealing with professional-grade construction. This 5" wide x 1/2" tall threshold features aluminum alloy 6063 T5 temper construction with fluted top design and integrated black neoprene bumper seal. Certified to multiple standards including UL CAN/ULC-S104, ANSI/UL10B, and ANSI/UL10C positive pressure ratings for reliable performance in commercial applications.

Professional Features & Benefits

  • ADA Compliant Design: 1/2" height profile meets ADA accessibility requirements for smooth transitions and barrier-free access.
  • Premium Aluminum Construction: Aluminum alloy 6063 T5 temper provides exceptional durability and corrosion resistance for long-term performance.
  • Integrated Sealing System: Black neoprene bumper seal creates effective barrier against air infiltration and weather intrusion.
  • Fluted Top Surface: Textured fluted design enhances slip resistance and provides secure footing in all conditions.
  • Multiple Certifications: UL certified to CAN/ULC-S104, ANSI/UL10B, and ANSI/UL10C positive pressure standards plus ANSI/BHMA certification for commercial reliability.
  • Complete Installation Package: Includes #10 x 1-1/2" FH zinc plated wood screws for secure mounting and professional installation.
  • Lightweight Construction: 0.85 lbs./ft. weight with .125" typical wall thickness balances strength with easy handling and installation.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Model: 896N
  • Product Subgroup: Door Thresholds
  • Product Type: Bumper Seal Thresholds
  • Subcategory: Thresholds

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose NGP Quality?

NGP threshold products deliver professional-grade reliability with aluminum alloy 6063 T5 temper construction certified to multiple UL and ANSI standards. The comprehensive certification package including UL CAN/ULC-S104, ANSI/UL10B, ANSI/UL10C positive pressure, and ANSI/BHMA standards ensures dependable performance in demanding commercial applications. Engineered for ADA compliance and tested for air infiltration resistance where reliable sealing performance is essential.

Manufacturer Resources

NGP Threshold Catalog

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Door Thresholds
Product Type:
Bumper Seal Thresholds
Subcategory:
Thresholds
Commercial/Residential:
Commercial
Product Model:
896N
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP 896N 36 – Frequently Asked Questions

1) Is the NGP 896N threshold ADA compliant for a barrier-free opening?
The 896N is an ADA compliant threshold, at 1/2 inch tall by 5 inches wide. That half-inch height is what keeps it within ADA accessibility requirements for a change in level at a doorway, so it works on accessible entrances where a taller saddle threshold would not pass. The top is fluted for footing.
2) Can the NGP 896N aluminum threshold be used on a fire rated door opening?
Yes. The 896N is UL certified to CAN/ULC-S104, ANSI/UL10B, and ANSI/UL10C positive pressure, and carries ANSI/BHMA certification. UL10C positive pressure is the one an inspector on a newer commercial fire door assembly will be looking for.
3) What length does the NGP 896N bumper threshold come in, and will it cover a standard 3-0 door?
It is sold in a 36 inch length. That covers a standard 3-0 single door opening; for a pair of doors or a wider opening you need a longer piece or more than one length. Aluminum extrusion like this can be cut down on site with a miter saw and a non-ferrous blade if your opening is under 36 inches.
4) How does the neoprene bumper on the NGP 896N seal the door?
A black neoprene bumper seal is built into the threshold, and the door bottom closes against it to block air infiltration and weather. Because the door seals against the bumper rather than sweeping across it, this style suits a single swing door that closes in one direction. It will not seal a door that swings both ways.
5) Are mounting screws included with the NGP 896N threshold?
Screws come with it: #10 x 1-1/2 inch flat head zinc plated wood screws. Those suit a wood subfloor. If you are fastening into concrete you will need to supply your own anchors, since the supplied wood screws will not hold in slab.
6) How much floor width do I need for the NGP 896N, and will it clear the door swing?
The threshold is 5 inches wide across the floor and 1/2 inch tall. Set that 5 inch footprint against your frame depth and door position: the bumper leg has to sit where the door face lands when closed, and the balance of the 5 inches spans the sill. If your frame plus swing clearance cannot take a 5 inch run, you need a narrower threshold profile.
7) Is the NGP 896N threshold rated for commercial traffic or is it a residential product?
It is a commercial-duty threshold, used on office buildings, schools, healthcare, retail, warehouses, multi-tenant residential, and municipal buildings. For a property manager standardizing entrances across a portfolio, the 1/2 inch by 5 inch profile is the same on every unit ordered, so openings match.
