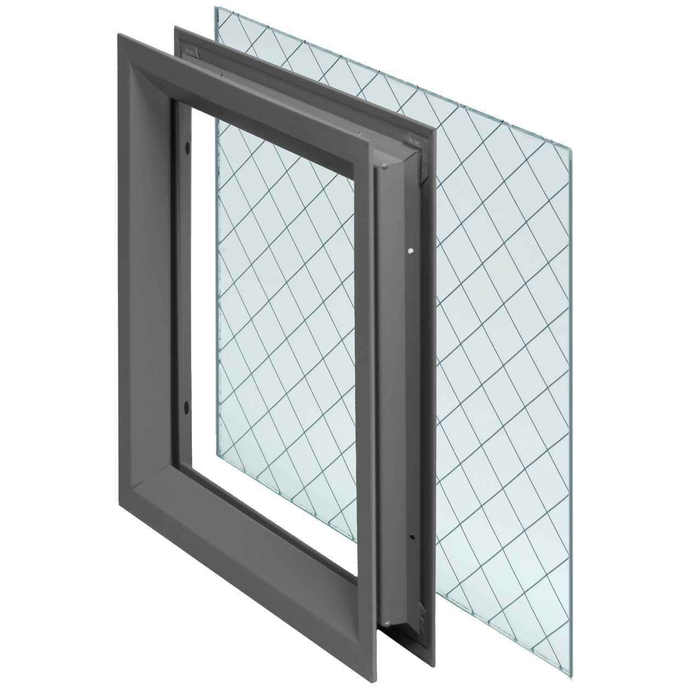

NGP L-FRA100-WGGT Low Profile Self Attaching Lite Kit with Wired Glass and 1/8" Glazing Tape - Fire Rated

NGP L-FRA100-WGGT Low Profile Self Attaching Lite Kit with Wired Glass and 1/8" Glazing Tape - Fire Rated

(No reviews yet) Write a Review

Model: LFRA100WGGT11812X12

In Stock (leaves warehouse same day if ordered before 3pm ET)

$182.00
$165.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP Low Profile Self Attaching Lite Kit with Wired Glass and 1/8" Glazing Tape - Fire Rated

Professional Fire-Rated Door Glazing Solution

The NGP Low Profile Self Attaching Lite Kit delivers professional fire-rated glazing for commercial door applications. Featuring 1/4" thick wired glass with 3/4" x 3/4" diamond pattern electrically welded steel wire mesh, this kit is designed for 1-3/4" thick doors manufactured within door industry tolerance of +/- 1/16". UL certified to ANSI/UL10C for 20-minute fire rating with closed cell PVC foam glazing tape, and meets ANSI Z97.1 Class C impact safety requirements.

Professional Features & Benefits

  • Fire-Rated Performance: UL certified to ANSI/UL10C for 20-minute fire rating with GT-118 closed cell PVC foam glazing tape for code compliance.
  • Heavy-Duty Construction: 18 gauge cold rolled steel frame with mitered and welded corners plus welded reinforcing clips for exceptional durability.
  • Professional Wired Glass: 1/4" thick wired glass with 3/4" x 3/4" diamond pattern electrically welded steel wire mesh maintains integrity when fractured or subjected to hose stream.
  • Door Compatibility: Designed for 1-3/4" thick doors manufactured within door industry tolerance of +/- 1/16" for precise fit.
  • Impact Safety Rating: Meets ANSI Z97.1 Class C impact safety requirements with clear glass ground and polished both sides.
  • Sound Control: STC 28 rating provides acoustic performance for noise control applications.
  • Complete Installation Hardware: Includes countersunk mounting screw holes with #8 x 1-5/8" Phillips head SMS screws for secure attachment.
  • Comprehensive Certifications: UL certified to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for hollow metal fire doors up to 3 hours and wood fire doors up to 90 minutes.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Finish: Prime Coat
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Lite Kits and Louvers
  • Product Type: Lite Kits & Louvers
  • Subcategory: Lite Kits & Louvers

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings
  • Fire-Rated Door Assemblies

Why Choose NGP Quality?

NGP lite kits deliver professional-grade fire safety with UL certified performance to ANSI/UL10C and comprehensive compliance with NFPA 80 and NFPA 252 standards. The 18 gauge cold rolled steel construction with mitered and welded corners provides exceptional durability for demanding commercial applications. Engineered for precise fit on standard 1-3/4" doors with industry-standard tolerances where reliable fire-rated glazing performance is essential.

Manufacturer Resources

NGP Lite Kits and Louvers

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Lite Kits & Louvers
Product Type:
Lite Kits
Subcategory:
Lite Kits & Louvers
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware
Product Finish:
Prime Coat

NGP LFRA100WGGT11812X12 – Frequently Asked Questions

1) Will the NGP L-FRA100 lite kit fit a 1-3/4 inch door?
That is the only door thickness it's built for. The L-FRA100 low profile self attaching lite kit is made for 1-3/4 inch doors manufactured within the door industry tolerance of +/- 1/16 inch. If your door is 1-3/8 inch, or a thicker custom slab, this frame won't clamp correctly and you need a kit sized to that thickness. Standard commercial hollow metal and wood fire doors are 1-3/4 inch, so most jobs are covered.
2) Is the NGP L-FRA100 wired glass lite kit fire rated, and to what standard?
UL certified to ANSI/UL10C for a 20 minute fire rating when used with the GT-118 closed cell PVC foam glazing tape. It is also UL certified to CAN/ULC-S104 and ANSI/UL10B, and complies with NFPA 80 and NFPA 252 for hollow metal fire doors up to 3 hours and wood fire doors up to 90 minutes. The tape is part of the rating, not an accessory, so a kit installed without it is not the assembly that was tested.
3) Does the NGP L-FRA100 lite kit come with the glass, or do I have to buy glazing separately?
Glass is included. The kit ships with 1/4 inch thick wired glass, 3/4 x 3/4 inch diamond pattern electrically welded steel wire mesh, ground and polished both sides, plus the 1/8 inch GT-118 glazing tape and #8 x 1-5/8 inch Phillips head sheet metal screws. Nothing else is required to glaze the opening once the door is cut and prepped.
4) Is wired glass in a lite kit safe for a school or a healthcare corridor where people walk into doors?
The wired glass in this NGP kit meets ANSI Z97.1 Class C impact safety. That is the lowest of the three Z97.1 impact levels, so check what your facility's spec or local code calls for on the opening in question. Where Class C is acceptable, the wired glass also holds together when fractured or hit with a hose stream, which is what the fire rating depends on.
5) Can I use the NGP L-FRA100 on a wood fire door, or is it hollow metal only?
Both. The certification covers hollow metal fire doors up to 3 hours and wood fire doors up to 90 minutes under NFPA 80 and NFPA 252, with the kit itself UL certified to ANSI/UL10C for a 20 minute rating. Note the 1-3/4 inch door thickness requirement applies either way.
6) What size glass opening does the NGP L-FRA100 lite kit give me?
It's a 12 x 12 inch kit. That's a vision lite sized for a door light or a corridor sightline, not a full half-glass panel. On a 20 minute rated opening the glazed area is limited by code anyway, which is what a kit this size is for.
7) What does self attaching mean on a lite kit, and do I need through bolts or a second frame?
Self attaching means the frame fastens to the door itself rather than clamping two halves against each other with through bolts. The L-FRA100 uses countersunk mounting screw holes with the supplied #8 x 1-5/8 inch screws, so one installer working from one face can set it. The frame is 18 gauge cold rolled steel with mitered and welded corners and welded reinforcing clips.
8) What finish does the NGP L-FRA100 lite kit come in, and can I paint it?
Prime coat. It ships ready for field paint rather than in a decorative finish, so it's meant to be finished to match the door. If you need a lite kit that arrives in a final architectural finish, this isn't that product.
9) Does a lite kit like this do anything for sound between a classroom and a corridor?
The NGP wired glass kit carries an STC 28 rating. That is modest, useful for general corridor noise but not a sound isolation solution. If acoustic separation is the actual goal on the opening, the lite kit is not where you gain it, the door, gasketing and bottom seal are.
