NGP L-VGLF-MD Security Grille ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$473.77

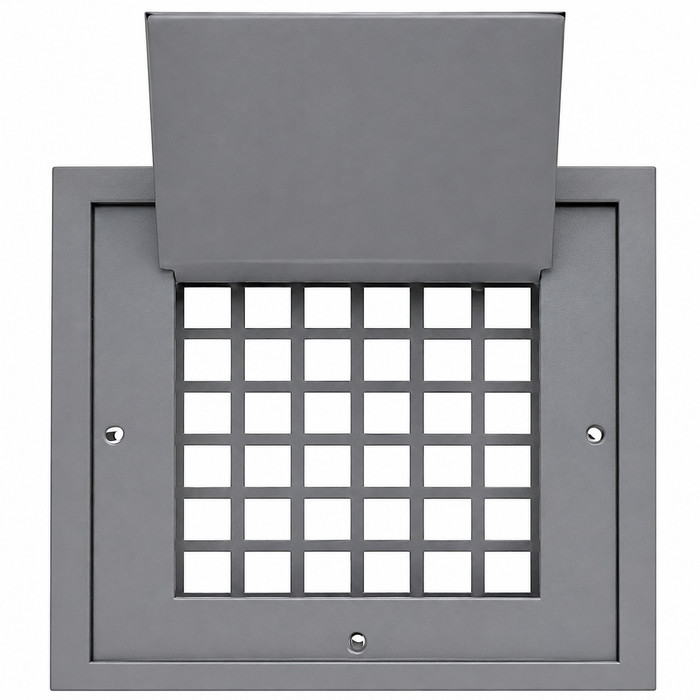

NGP NGP L-VGLF-MD Security Grille Lite Kit, 9" x 9" NGP-L-VGLF-MD

NGP L-VGLF-MD Security Grille Lite Kit 9" x 9" with High Impact Polycarbonate and Steel Frame

(No reviews yet) Write a Review

Model: L-VGLF-MD

In Stock (leaves warehouse same day if ordered before 3pm ET)

$473.77
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NGP Security Grille Lite Kit 9" x 9" with High Impact Polycarbonate and Steel Frame

Professional Security Glazing Solution for Commercial Doors

The NGP Security Grille Lite Kit provides robust glazing protection for 1-3/4" hollow metal or wood doors with a 9" x 9" overall frame size and 6" x 6" exposed glass area. This commercial-grade lite kit features 1/2" thick high impact polycarbonate plastic protected by a 16 Ga. steel security grille, all housed in an 18 Ga. cold rolled steel frame with mitered and welded corners. The low-profile design includes a hinged panel for easy access and maintenance while maintaining security integrity.

Professional Features & Benefits

  • Precise Door Compatibility: Engineered for 1-3/4" thick doors manufactured within door industry tolerance of +/- 1/16" for reliable fit and installation.
  • Heavy-Duty Steel Construction: 18 Ga. cold rolled steel frame with mitered and welded corners provides exceptional durability and structural integrity.
  • High Impact Glazing Protection: 1/2" thick high impact polycarbonate plastic offers superior impact resistance compared to standard glass applications.
  • Integrated Security Grille: 16 Ga. steel 3/4" x 3/4" security grille provides additional protection while maintaining visibility through the 6" x 6" exposed glass area.
  • Hinged Access Panel: 18 Ga. steel hinged panel design allows for maintenance access while preserving security when closed.
  • Concealed Fastener Design: No exposed fasteners on outside of door maintains clean appearance and prevents tampering with mounting hardware.
  • Complete Installation Package: Includes #8 x 1" oval head TEK screws and 2.8 oz. silicone sealant for professional weatherproof installation.
  • Durable Finish Options: Standard gray primer (GPZ) powder coat finish with optional powder coat colors, Torx security screws, and zinc electro-plating available.

Technical Specifications

  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Lite Kits and Louvers
  • Product Type: Lite Kits & Louvers
  • Series: Security Lite Kit Series
  • Subcategory: Lite Kits & Louvers

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose NGP Quality?

NGP Security Grille Lite Kits deliver professional-grade protection with 18 Ga. cold rolled steel construction and mitered welded corners for demanding commercial applications. The combination of high impact polycarbonate glazing and integrated steel security grille provides superior protection while maintaining visibility and access. Engineered for precise fit within standard door industry tolerances where dependable security glazing performance is essential.

Manufacturer Resources

NGP Lite Kits and Louvers

Product Specs

Product Group:
Door Trim and Accessories
Series:
Security Lite Kit Series
Product Subgroup:
Lite Kits & Louvers
Product Type:
Lite Kits
Subcategory:
Lite Kits & Louvers
Commercial/Residential:
Commercial
Product Category:
Door Trim and Accessories
Department:
Door Hardware

NGP L-VGLF-MD – Frequently Asked Questions

1) How big a cutout do I need for a 9 x 9 security grille lite kit, and how much glass actually shows?
The L-VGLF-MD frame is 9 x 9 inches overall with a 6 x 6 inch exposed glass area. The frame covers the difference between the two, so plan the door prep around the 9 x 9 outside dimension and expect a 6 x 6 view opening once the grille and frame are on.
2) Is the vision panel in this NGP kit glass or polycarbonate?
Polycarbonate. The security lite kit glazes with 1/2 inch thick high impact polycarbonate plastic rather than glass, and it sits behind a 16 Ga. steel grille with 3/4 x 3/4 inch openings. That combination is what you specify where a plain glass lite would get broken out.
3) Can someone unscrew this lite kit from the corridor side of the door?
There are no exposed fasteners on the outside of the door. The L-VGLF-MD mounts with concealed fastening, so the secure face gives a would-be tamperer nothing to turn. For higher-risk openings, Torx security screws are an available option on the kit.
4) How do you clean or service the glazing behind the steel grille?
The grille side is an 18 Ga. steel hinged panel. Swing it open to reach the polycarbonate for cleaning or replacement, then close it and the opening is secure again. That is the practical difference from a fixed-grille kit, where servicing the lite means pulling the whole frame.
5) What finish does the NGP L-VGLF-MD come in, and can I get it painted to match my doors?
Standard is a gray primer (GPZ) powder coat, which is meant to be finish painted on site to match the door. If you would rather have it come coated, optional powder coat colors are offered, and zinc electro-plating is available where corrosion is the concern.
6) Is a security grille lite kit the right choice, or should I just use a standard vision lite frame?
Pick the security grille version when the opening takes abuse or the room behind it needs to stay closed: detention-style corridors, mechanical and storage rooms, school and healthcare back-of-house, warehouse doors. The L-VGLF-MD gives you a small 6 x 6 inch view with 1/2 inch polycarbonate and a 16 Ga. steel grille over it. A plain lite frame is the better call when you want daylight and sightlines rather than resistance, since the grille and the small view opening cut visibility on purpose.
7) How heavy-duty is the frame on this NGP lite kit?
The frame is 18 Ga. cold rolled steel with mitered, welded corners, so it arrives as one rigid unit rather than a snap-together extrusion that can be racked apart at the joints. The hinged grille panel is the same 18 Ga. steel, with the grille itself a heavier 16 Ga.
8) Can I standardize the same NGP security lite kit across a whole building of doors?
The L-VGLF-MD is a single commercial-grade model, one size at 9 x 9 inches for 1-3/4 inch doors, so every opening you spec it on gets identical prep, identical glazing, and identical replacement parts. That is the point of it for a facility that wants one lite kit on the shelf instead of five.
