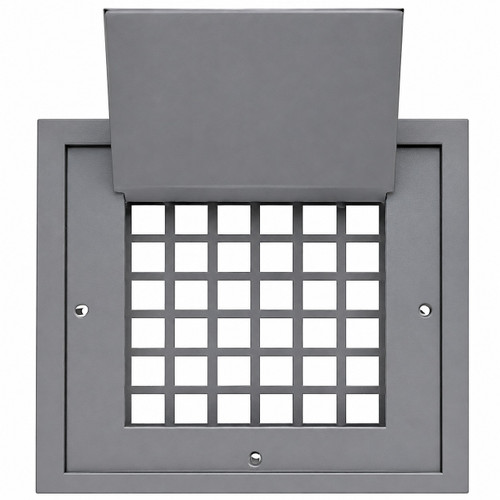

NGP L-VGLF-MD Security Grille Lite Kit 9" x 9" with High Impact Polycarbonate and Steel Frame
Model: NGP-L-VGLF-MD
NGP Security Grille Lite Kit 9" x 9" with High Impact Polycarbonate and Steel FrameProfessional Security Glazing Solution for Commercial DoorsThe NGP Security Grille Lite Kit provides robust glazing...
NGP
$404.00
NGP L-VGLF-WD 9X5 Security Lite Kit 9" x 5" with Hinged Panel for 1-3/4" Doors
Model: NGP-L-VGLF-WD 9X5
NGP Security Lite Kit 9" x 5" with Hinged Panel for 1-3/4" DoorsProfessional Door Vision Panel SolutionThe NGP Security Lite Kit provides a secure vision panel solution for 1-3/4" hollow metal or...
NGP
$479.86

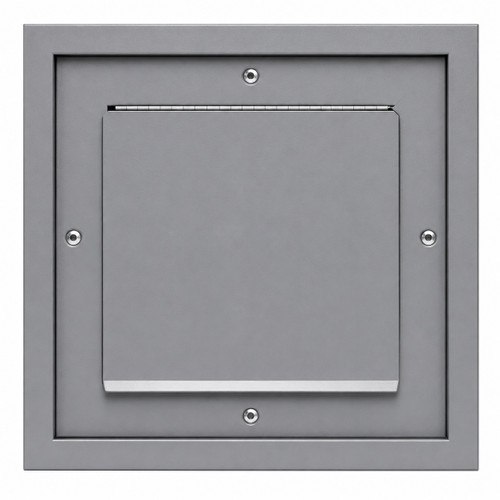

NGP L-VGLF-OG Security Lite Kit with High Impact Polycarbonate Glass - 9" x 9" Low-Profile Frame
Model: NGP-L-VGLF-OG
NGP Security Lite Kit with High Impact Polycarbonate Glass - 9" x 9" Low-Profile FrameProfessional Door Vision Panel SolutionThe NGP Security Lite Kit provides a secure vision panel solution for...
NGP
$422.03
NGP L-SG100 10X10 Self-Attaching Security Grille Lite Kit 10" x 10" with Fire Rating
Model: NGP-L-SG100 10X10
NGP Self-Attaching Security Grille Lite Kit 10" x 10" with Fire RatingProfessional Security Glazing Solution for Commercial DoorsThe NGP Self-Attaching Security Grille Lite Kit provides robust...
NGP
$580.14
NGP L-FRA100-SP Low Profile Lite Kit for 1-3/4" Door Thickness with Fire Rating
Model: NGP-L-FRA100-SP
NGP Low Profile Lite Kit for 1-3/4" Door Thickness with Fire RatingProfessional Fire-Rated Glazing Solution for Commercial DoorsThe NGP Low Profile Lite Kit provides a certified fire-rated glazing...
NGP
Starting at
$228.33

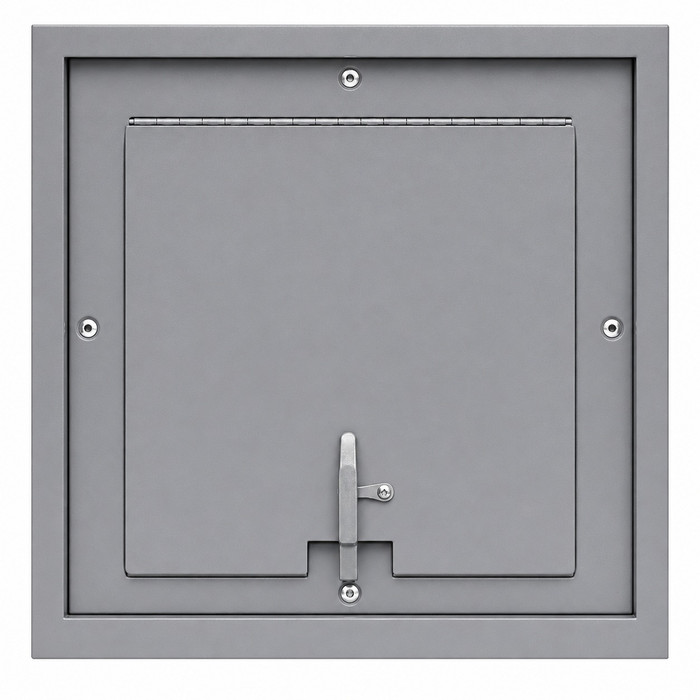

NGP Security Lite Kit with Grille Frame - 11" x 11" for 1-3/4" Doors
Professional Door Vision Panel with Integrated Security Protection
The NGP Security Lite Kit provides a secure vision panel solution for 1-3/4" hollow metal or wood doors with an 11" x 11" overall frame and 8" x 8" exposed glass viewing area. Constructed from 18 gauge cold rolled steel with mitered and welded corners, this kit features 1/4" thick high impact polycarbonate glazing protected by a 16 gauge steel security grille. The hinged panel design with bolt latch provides interior access while maintaining no exposed fasteners on the exterior door surface.
Professional Features & Benefits
- Door Compatibility: Designed for 1-3/4" thick hollow metal or wood doors manufactured within industry tolerance of +/- 1/16" for precise fit.
- Heavy-Duty Steel Construction: 18 gauge cold rolled steel frame with mitered and welded corners provides exceptional durability for commercial applications.
- Security Grille Protection: 16 gauge steel 3/4" x 3/4" security grille protects glazing from impact and vandalism attempts.
- High-Impact Glazing: 1/4" thick high impact polycarbonate plastic provides clear visibility while resisting breakage.
- Secure Access Design: 18 gauge steel hinged panel with bolt latch allows interior access while maintaining exterior security.
- Professional Installation: Low-profile frame design with no exposed fasteners on outside of door ensures clean appearance and tamper resistance.
- Complete Installation Kit: Includes #8 x 3/4" oval head TEK screws and 2.8 oz. silicone sealant for weather-tight installation.
- Durable Finish: Gray primer (GPZ) powder coat finish provides corrosion resistance with optional color finishes available.
Technical Specifications
- Commercial/Residential: Commercial
- Department: Door Hardware
- Product Category: Door Trim and Accessories
- Product Group: Door Trim and Accessories
- Product Subgroup: Lite Kits and Louvers
- Product Type: Lite Kits & Louvers
- Series: Security Lite Kit Series
- Subcategory: Lite Kits & Louvers
Professional Applications
- Commercial Office Buildings
- Educational Facilities
- Healthcare Institutions
- Industrial and Warehouse Facilities
- Government and Municipal Buildings
- Multi-Tenant Residential Properties
- Retail Security Applications
Why Choose NGP Quality?
NGP Security Lite Kit products deliver professional-grade reliability with 18 gauge cold rolled steel construction and mitered welded corners engineered for demanding commercial applications. The integrated security grille and high-impact polycarbonate glazing provide both visibility and protection where dependable performance is essential. Complete installation hardware and weather sealing components ensure long-term performance in commercial door applications.
Manufacturer Resources
NGP Lite Kits and Louvers
Product Specs
- Product Group:
- Door Trim and Accessories
- Series:
- Security Lite Kit Series
- Product Subgroup:
- Lite Kits & Louvers
- Product Type:
- Lite Kits
- Subcategory:
- Lite Kits & Louvers
- Commercial/Residential:
- Commercial
- Product Category:
- Door Trim and Accessories
- Department:
- Door Hardware
