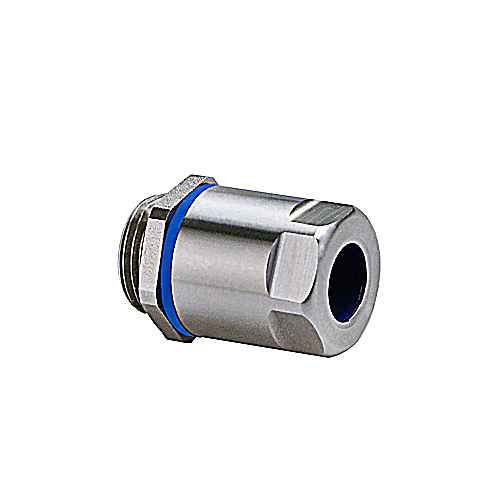

Thomas & Betts FSCG-0381 Non Armoured Cable Gland for Food and Beverage

Thomas & Betts FSCG-0381 Non Armoured Cable Gland for Food and Beverage

(No reviews yet) Write a Review

Model: FSCG-0381
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$406.86
$356.86
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Non Armoured Cable Gland for Food and Beverage

  • Features

    • Medical equipment - non contact
    • Suitable for splash zones
    • Smooth hygienic external casting
    • Pharmaceutical, packaging and processing
    • Splash zone and wash down areas
    • Packaging and transfer areas
    • One piece, fully enclosed
    • Corrosion resistant


FSCG-0381 - spec sheet

Manufacturer Resources

Product Specs

Color:
Metallic
Colour:
Natural colour
Conductor Range:
3 to 6.5 Millimeters
Degree Of Protection Ip :
IP68
Etim:
EC000441 Cable screw gland
Inner Dimensions Inches :
1.5x1x1
Inner Quantity:
1
Material:
Stainless Steel
Material Quality:
Stainless steel V4A
Model:
Straight
Nominal Thread Size Inch Gas Pipe Thread:
3/8 inch
Operating Temperature:
-20-+100°C
Outer Dimensions Inches :
11.02x3.94x15.75
Outer Quantity:
5
Product Group:
Connectors
Standard:
NSF, RoHS, WEEE, LVD
Suitable For Cable Diameter:
3 - 6.5mm
Surface Protection:
Untreated
Temperature Rating:
-20 to +100 Degrees C
Thread Length:
6mm
Thread Type:
NPT
Type:
Non Armoured Cable Gland for Food and Beverage
Unspsc:
39121431 Cable gland connector
Weight Uom:
18 lbs. per 100
Department:
Electrical
Product Subgroup:
Electrical Connectors
Product Type:
Non Armoured Cable Gland for Food and Beverage
!
