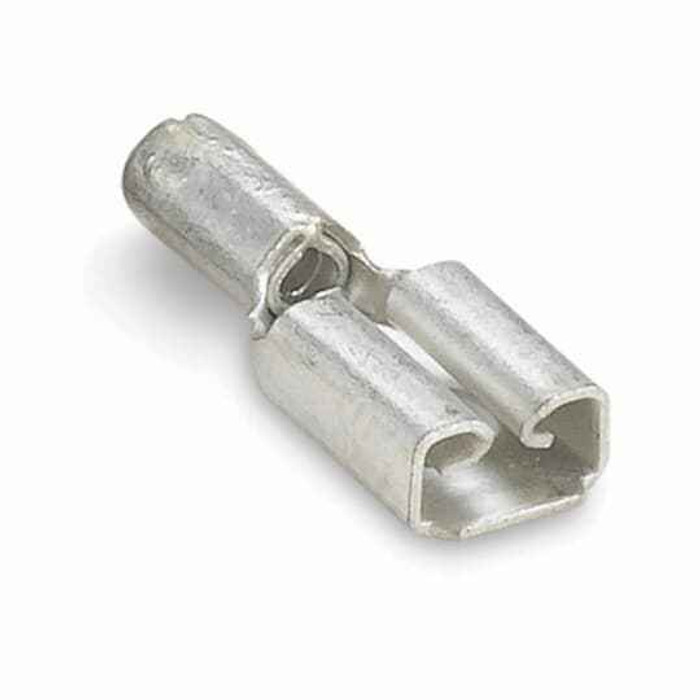

NON-INS FEM .187x.032 DISC 22-18AWG
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Insulation Material:
- None
- Product Subgroup:
- Disconnects
- Product Type:
- Non-Insulated Female Disconnect
- Standards:
- UL E66716
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Metallic
- Product Material:
- Brass
Sta-Kon AD18-183 – Frequently Asked Questions
1) What wire size does the Sta-Kon AD18-183 female disconnect crimp onto?
The AD18-183 is sized for 22 to 18 AWG stranded or solid wire. Anything heavier than 18 AWG will not seat in the barrel, and finer than 22 AWG risks a loose crimp, so step to a different terminal size for those conductors.
2) Is the AD18-183 terminal insulated, and does it need a separate sleeve?
It is a non-insulated terminal with no insulation material on it at all. If the connection sits where it could short against a chassis or an adjacent terminal, plan on a separate insulating sleeve or boot, or use an insulated disconnect instead.
3) Is this Sta-Kon female disconnect UL recognized for panel and control work?
The AD18-183 carries UL file E66716, which is the listing institutional and MRO buyers usually need to see for terminals going into control panels and equipment wiring.
4) Do I need a special crimper for a non-insulated 22-18 AWG disconnect?
Yes, use a non-insulated terminal crimper. The jaws for non-insulated barrels are shaped differently from the color-coded insulated-terminal dies, and crimping a bare brass barrel like the AD18-183 with an insulated die gives a weak joint. Match the die to the 22-18 AWG range.
5) What is the Sta-Kon AD18-183 made of?
Brass, with a bare metallic finish since there is no insulation covering it. Brass gives good conductivity and holds a crimp well on small-gauge control wiring.
6) Where is the Sta-Kon AD18-183 terminal manufactured?
Made in the United States, which matters on government and institutional jobs carrying domestic-sourcing requirements.
How fast can I get the Sta-Kon AD18-183 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the
continental
U.S.
Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit,
reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Sta-Kon AD18-183 come with a warranty?
Absolutely. The Sta-Kon AD18-183 is backed by a manufacturer’s warranty.
For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Sta-Kon AD18-183?
You can call, text, or email our expert support team for fast answers. We’re here to help with
product
selection,
installation tips, and troubleshooting. Contact Us
