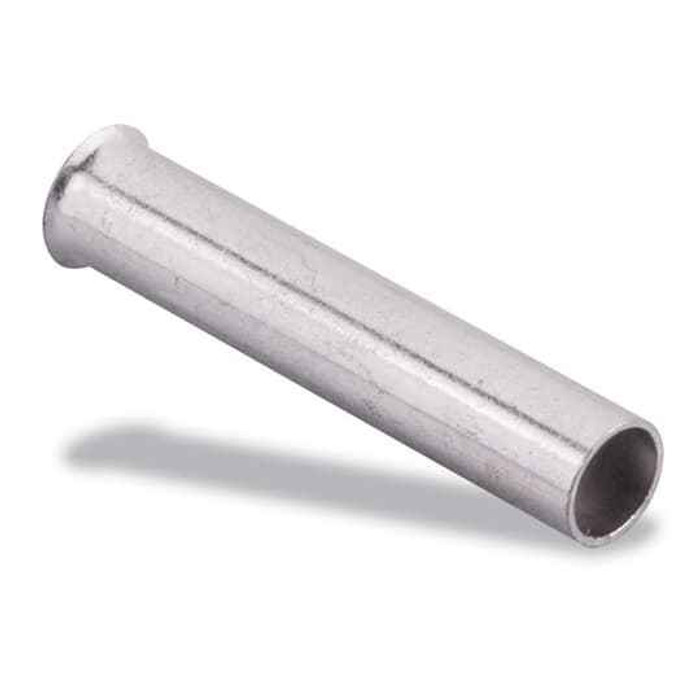

NON-INS FERRULE 24, .25 MM2, LG .19
Manufacturer Resources
Product Specs
- Country Of Origin:
- Germany (DE)
- Product Subgroup:
- Ferrules
- Product Type:
- Non-Insulated Ferrule
- Wire Size:
- 24 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Metallic
- Product Material:
- Copper
Sta-Kon F9000 – Frequently Asked Questions
1) What wire size does the Sta-Kon F9000 ferrule take?
The F9000 wire ferrule is sized for 24 AWG conductor, which is 0.25 mm2 in metric terms. If your conductor is heavier than 24 AWG, the barrel won't accept the strands and you need the next size up in the ferrule range.
2) Is the Sta-Kon F9000 insulated or bare?
Bare. The F9000 is a non-insulated ferrule, so there is no plastic collar to color-code the size or to shield the conductor where it exits. If you need strain relief at the wire entry or color-coded size identification at a crowded terminal strip, choose an insulated ferrule instead.
3) How long is the crimp barrel on the F9000 ferrule?
Barrel length is .19 inch on the F9000. That is the contact length that sits inside the terminal block or crimp die, so set your strip length to match it so no bare copper stands proud of the ferrule.
4) Why use a ferrule on 24 AWG stranded control wire instead of just landing the bare wire?
A ferrule gathers the fine strands of a 24 AWG conductor into one solid pin so a screw or cage clamp bites the whole bundle instead of shearing off outside strands. The F9000 gives you a .19 inch copper barrel for that job, which is the normal practice on control panel terminal blocks and is often required by panel inspection.
5) Can I crimp the Sta-Kon F9000 with pliers, or do I need a ferrule crimper?
Use a proper ferrule crimp tool. The F9000 is a .25 mm2 (24 AWG) copper barrel, and a square or trapezoidal ferrule die is what compresses it uniformly onto the strands. Pliers deform the barrel and leave strands loose, which is the usual cause of a hot terminal later.
6) What is the Sta-Kon F9000 ferrule made of?
Copper, with a metallic (unplated-appearance) finish rather than a colored insulator. Copper barrels are what you want for low-resistance termination of fine stranded wire into screw and cage-clamp terminals.
7) What is the exact part number and where is the Sta-Kon F9000 made?
Order it as Sta-Kon F9000, a non-insulated 24 AWG copper ferrule. Country of origin is Germany.
