Product Specs
- Application:
- For Code Conductor
- Certification Csa Approved:
- Yes
- Certification Culus:
- No
- Certification Etl:
- No
- Certification Ul Recognized:
- No
- Color Code:
- Green
- Conductor Copper Dlo Size Range:
- N/A
- Conductor Copper Str Navy Size:
- 75 (37) Navy
- Conductor Copper Str Navy Size Range:
- 75 (37) Navy
- Conductor Copper Str Size:
- 1 AWG
- Conductor Copper Str Size Range:
- 1 AWG
- Conductor Material:
- Copper
- Connector Type:
- Terminal
- Die Index:
- 11;375
- Dimension B Length Fraction:
- 7/8 in
- Dimension B Length Inch:
- 0.88 in
- Dimension Bolt Hole Size Inch:
- 0.39 in
- Dimension D Inch:
- 0.83 in
- Dimension Hole Size Inch:
- 0.40 in
- Dimension Hole Size Mm:
- 10 mm
- Dimension L Length Overall Mm:
- 52 mm
- Dimension Length Overall Inch:
- 2.06 in
- Dimension N Inch:
- 0.41 in
- Dimension Outside Diameter Inch:
- 0.46 in
- Dimension Pad Width Inch:
- 0.68 in
- Dimension Strip Length Inch:
- 15/16
- Dimension Stud Size Fraction:
- 8-Mar
- Dimension Stud Size Inch:
- 8-Mar
- Dimension Z Inch:
- 0.42 in
- Feature Barrel Style:
- Chamfered
- Feature Barrel Type:
- Standard
- Material:
- Copper
- Minimum Pack Quantity:
- 1
- Physical Attribute Number Of Holes:
- 1
- Physical Attribute Tongue Angle:
- Straight
- Physical Attribute Tongue Type:
- Standard
- Plated:
- Y
- Plating Type:
- Tin - Electro Plated
- Rating Kva:
- 35 kV
- Rating Minimum Voltage:
- 600
- Standards Rohs Compliance Status:
- CM
- Sub Brand:
- HYLUG
- Temperature Rating:
- 194
- Trade Name:
- HYLUGâ„¢
- Type:
- Standard Barrel, Tin Plated
- Ul Listed:
- Yes
- Voltage Maximum:
- 35000

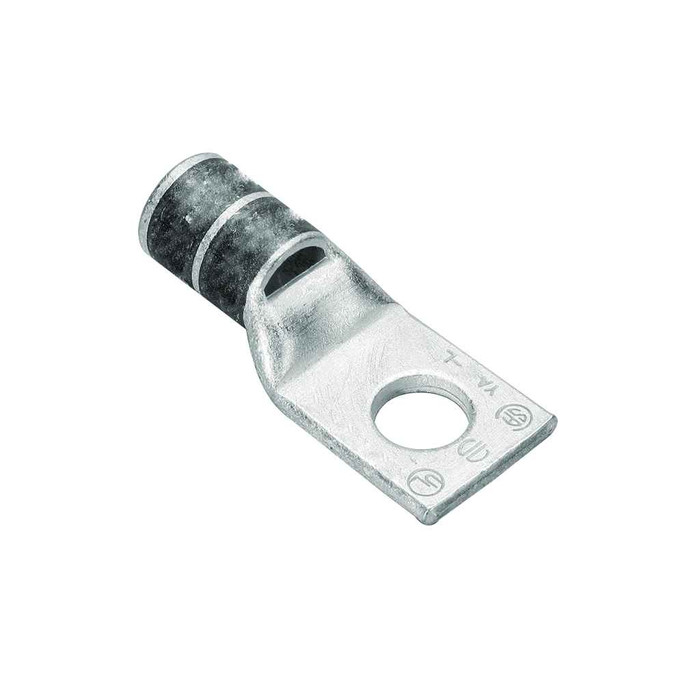

- Product Type:
- Crimped Cable Lug
