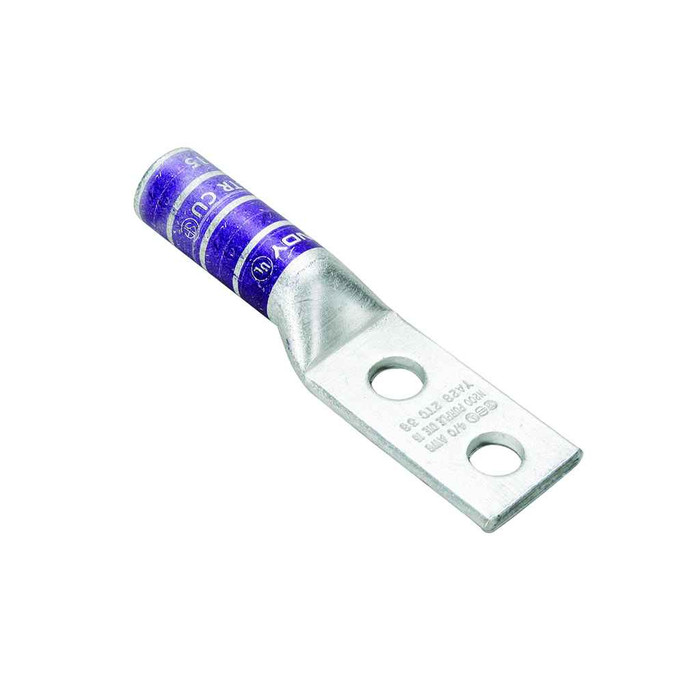

Burndy HYLUG Crimped Cable Lug 3/0 AWG Copper Tin Plated Two Hole 600V-35kV
Professional High Voltage Electrical Terminal for Code Conductor Applications
The Burndy HYLUG Crimped Cable Lug delivers superior electrical connection performance for high voltage applications up to 35kV. This 3/0 AWG copper terminal with tin plating provides exceptional conductivity and corrosion resistance designed for professional electricians, electrical contractors, and utility professionals, offering the proven performance and innovation that professionals expect from America's premier electrical connection manufacturer.
Professional Features & Benefits
High Voltage Performance
- 35kV Maximum Voltage Rating - Engineered for high voltage applications with 600V minimum rating providing versatile electrical system compatibility
- 3/0 AWG Copper Conductor Compatibility - Precisely sized for 3/0 AWG copper stranded conductors ensuring optimal electrical connection
- Tin Electro Plating - Superior corrosion resistance and enhanced conductivity for long-term electrical performance
- UL 468A-468B Standards Compliance - Meets rigorous electrical safety standards with UL Listed and CSA Approved certifications
Professional Installation Design
- Two Hole Configuration - Dual mounting holes provide secure mechanical connection with 0.52 inch bolt hole diameter
- Long Barrel Chamfered Design - Extended barrel length with chamfered entry for easier conductor insertion and optimal crimp performance
- Die Index 14 Specification - Precise tooling requirements ensure consistent professional installation results
Technical Specifications
Conductor Size: 3/0 AWG Copper Stranded, Voltage Rating: 600V-35kV, Material: Copper with Tin Electro Plating, Physical Configuration: Two Hole Terminal, Bolt Hole Size: 0.52 inch, Overall Length: 5.01 inches, Outside Diameter: 0.62 inches, Pad Thickness: 0.13 inch, Tongue Type: Standard Straight, Die Index: 14, Color Code: Orange, Certifications: UL Listed, CSA Approved, Standards: UL468A-468B, RoHS Status: CM
Installation & Usage
- Strip conductor insulation to proper length ensuring clean copper surface
- Insert 3/0 AWG copper conductor fully into chamfered barrel opening
- Position terminal in appropriate die index 14 crimping tool
- Apply proper crimping pressure following manufacturer torque specifications
- Inspect crimp connection for proper compression and conductor retention
- Mount terminal using two holes with appropriate hardware for voltage rating
Professional Applications
Ideal for:
- High Voltage Power Distribution - Utility substations, transmission lines, and high voltage switching equipment
- Industrial Electrical Systems - Manufacturing facilities, processing plants, and heavy industrial power connections
- Commercial Building Services - Large commercial electrical services, main distribution panels, and feeder connections
- Utility Infrastructure - Power generation facilities, electrical substations, and transmission system connections
- Code Conductor Applications - Electrical installations requiring compliance with electrical code standards
- Motor Terminations - High horsepower motor connections and industrial drive systems
- Transformer Connections - Primary and secondary connections for distribution and power transformers
- Panel Board Connections - Main breaker panels, distribution boards, and electrical service equipment
Copper and Tin Plating Advantage
The copper construction provides excellent electrical conductivity while the tin electro plating offers superior corrosion resistance and enhanced connection reliability. This combination ensures optimal electrical performance in demanding environments while maintaining long-term connection integrity essential for high voltage applications.
Why Choose Burndy Quality?
Burndy's HYLUG series represents decades of electrical connection innovation and manufacturing excellence. With UL Listed certification and CSA approval, these terminals meet the highest electrical safety standards trusted by electricians, electrical contractors, and utility professionals worldwide. The proven reliability and consistent performance make Burndy the preferred choice for critical electrical connections.
BUR-YA272N - spec sheet
Manufacturer Resources
Product Specs
- Application:
- For Code Conductor
- Certification Csa Approved:
- Yes
- Certification Culus:
- No
- Certification Etl:
- No
- Certification Ul Recognized:
- No
- Color Code:
- Orange
- Conductor Copper Str Navy Size:
- 150 (61) Navy
- Conductor Copper Str Size:
- 3/0 AWG
- Conductor Material:
- Copper
- Connector Type:
- Terminal
- Die Index:
- 14
- Dimension B Length Fraction:
- 1-1/2 in
- Dimension B Length Inch:
- 1.50 in
- Dimension Bolt Hole Size Inch:
- 0.52 in
- Dimension Bolt Size Fraction:
- 2-Jan
- Dimension Hole Size Inch:
- 0.56 in
- Dimension Hole Size Mm:
- 14 mm
- Dimension L Length Overall Mm:
- 127 mm
- Dimension Length Overall Inch:
- 5.01 in
- Dimension N Inch:
- 0.63 in
- Dimension Outside Diameter Inch:
- 0.62 in
- Dimension Pad Width Inch:
- 0.91 in
- Dimension Strip Length Inch:
- 1/9/2016
- Dimension Stud Size Inch:
- 2-Jan
- Dimension Thread Size:
- 2-Jan
- Dimension Z Inch:
- 0.64 in
- Feature Barrel Style:
- Chamfered
- Feature Barrel Type:
- Long
- Industry Standard S :
- UL468A-468B
- Minimum Pack Quantity:
- 1
- Physical Attribute Number Of Holes:
- 2
- Physical Attribute Tongue Angle:
- Straight
- Physical Attribute Tongue Type:
- Standard
- Plated:
- Y
- Plating Type:
- Tin - Electro Plated
- Rating Kva:
- 35 kV
- Rating Minimum Voltage:
- 600
- Standards Industry Standards Met:
- UL468A-468B
- Standards Rohs Compliance Status:
- CM
- Sub Brand:
- HYLUG
- Thickness Pad:
- 0.13 in
- Trade Name:
- HYLUG™
- Ul Listed:
- Yes
- Voltage Maximum:
- 35000
- Product Type:
- Crimped Cable Lug
- Product Group:
- Wire Connectors & Termination Accessories
- Department:
- Electrical
- Product Subgroup:
- Crimped Cable Lug
- Product Details:
- Long Barrel, Tin Plated
- Product Material:
- Copper
