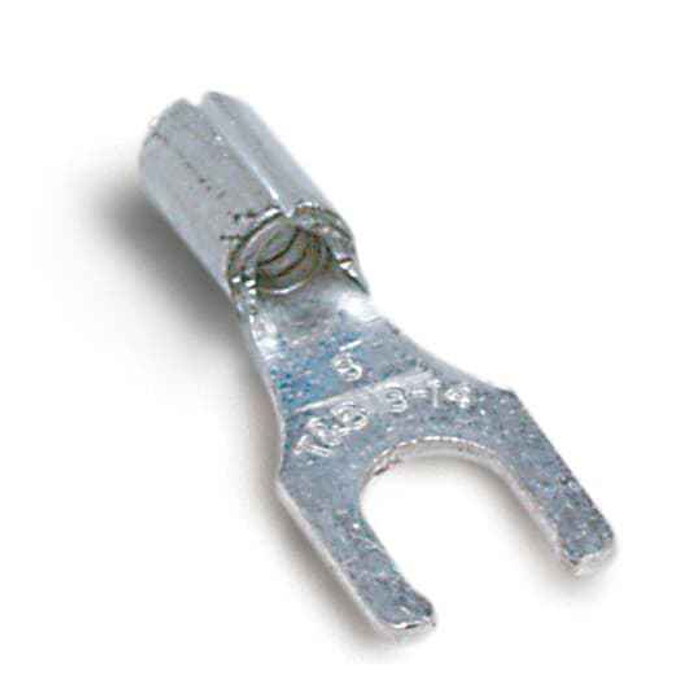

NONINS LKG FRK TRM 18-14 NO10 MYLAR
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Subgroup:
- General Terminals
- Product Type:
- Non-Insulated Locking Fork Terminal
- Standards:
- UL E9809
- Wire Size:
- 18-14 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Material:
- Copper
Sta-Kon B225M – Frequently Asked Questions
1) Is the Sta-Kon B225M insulated or non-insulated?
Non-insulated. The B225M is a bare copper locking fork terminal, so the crimp barrel is exposed and you need to insulate it yourself with heat shrink or tape if the termination sits where it could be touched or shorted. If you want the insulation built in, choose an insulated fork terminal instead.
2) What is the difference between a locking fork terminal and a plain spade terminal?
A locking fork has upturned tangs on the ends of the fork that catch under the screw head, so the terminal resists being pulled out sideways once the screw is torqued down. A plain spade will slide straight off a loose screw. The B225M is the locking type, which is why it gets used on vibration-prone equipment and control panels where you still want the speed of landing a wire without pulling the screw all the way out.
3) Is the Sta-Kon B225M terminal UL recognized?
The B225M carries UL file E9809. That is the reference an inspector or submittal reviewer will want for a terminal landed in panel or control wiring.
4) What part number do I order for a Sta-Kon 18-14 AWG non-insulated locking fork terminal?
Order Sta-Kon B225M. That is the single model for the non-insulated locking fork, 18-14 AWG, No. 10 stud configuration, so there is no finish or size option to specify on the order.
5) Is the Sta-Kon B225M fork terminal made in the USA?
Country of origin is the United States, which matters on government, institutional and Buy American spec jobs where terminations have to be documented along with the rest of the material.
6) Can I solder the Sta-Kon B225M, or does it have to be crimped?
It is a copper crimp terminal and the connection is made mechanically with a crimp tool matched to 18-14 AWG barrels. Because the body is bare copper with no insulating sleeve to melt, it tolerates soldering better than an insulated terminal would, but the crimp is what the UL E9809 recognition covers.
