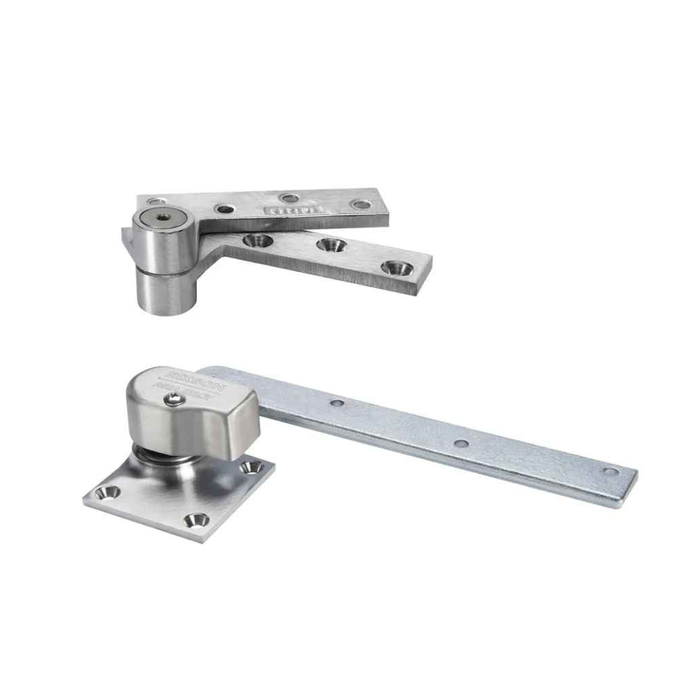

Norton Rixson 1-1/2" Offset Pivot Set with 180 Top Pivot - Heavy Duty 600 lb Capacity

Norton Rixson 1-1/2" Offset Pivot Set with 180 Top Pivot - Heavy Duty 600 lb Capacity

(No reviews yet) Write a Review

Model: 147 X 1-1/2OS RH 626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,406.57
$900.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Norton Rixson 1-1/2" Offset Pivot Set with 180 Top Pivot - Heavy Duty 600 lb Capacity

Professional Offset-Hung Pivot Solution for Heavy Commercial Doors

The Norton Rixson 147 offset pivot set delivers heavy-duty performance for interior and exterior doors weighing up to 600 lbs. This standard-duty pivot system features a 3/4" (19mm) offset design with 180-degree swing capability and includes the 180 top pivot for complete installation. Engineered with non-ferrous base material and ANSI/BHMA A156.4 Grade 2 certification, this pivot set accommodates doors up to 4'0" (1219mm) wide with proper intermediate pivot support.

Professional Features & Benefits

  • Heavy-Duty Load Capacity: Supports doors weighing up to 600 lbs with proper intermediate pivot configuration for demanding commercial applications.
  • Offset Design: 3/4" (19mm) offset from centerline of pivot to face of door accommodates doors with cladding or frame molding requirements.
  • Complete Swing Range: Doors swing 180 degrees when trim permits, providing maximum opening clearance for high-traffic applications.
  • Versatile Door Compatibility: Suitable for interior or exterior doors up to 4'0" (1219mm) wide with beveled door edges (1/8" in 2").
  • Professional Installation System: Bottom pivot mounts directly to floor with 180 top pivot included; M19 intermediate pivots required for proper support (sold separately).
  • Durable Construction: Non-ferrous base material provides corrosion resistance and long-term reliability in various environmental conditions.
  • ANSI/BHMA Certified: Grade 2 certification ensures compliance with commercial building standards and performance requirements.
  • Manufacturer Warranty: 2-year limited warranty provides added confidence and protection for commercial installations.

Technical Specifications

  • Application: Lead-Lined
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Door Hand Direction: Handed
  • Duty Level: Heavy Duty
  • Electronic: No
  • Fasteners: Torx Screws Optional
  • Fire Rating: No
  • Hang Type: Offset Hung
  • Mounting Method: Offset
  • Pivot Type: Intermediate
  • Product Attribute: Pivots
  • Product Category: Door Hinges and Pivots
  • Product Group: Door Hinges and Pivots
  • Product Subgroup: Pivots and Pivot Sets
  • Product Substrate: Non-ferrous
  • Product Type: Intermediate Pivots - Offset
  • Series: M190 Intermediate Pivots
  • Subcategory: Intermediate Pivots
  • Warranty: 2 Year Limited

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, door weight (up to 600 lbs), door width (up to 4'0"), and handing requirements.
  2. Ensure door edges are beveled 1/8" in 2" as required for proper pivot operation and door clearance.
  3. Use manufacturer-provided templates to mark mounting hole locations for bottom pivot (floor mount) and top pivot positions.
  4. Install bottom pivot directly to floor using appropriate fasteners for floor material and structural requirements.
  5. Mount 180 top pivot and determine intermediate pivot requirements (M19 intermediate pivots required for doors 60" to 90" in height, with additional pivots for each 30" of additional height).
  6. Test pivot operation to verify proper alignment, smooth swing operation throughout 180-degree range, and proper door clearances. Refer to manufacturer documentation for complete installation details and intermediate pivot specifications.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Norton Rixson Quality?

Norton Rixson pivot systems deliver professional-grade reliability with non-ferrous construction and ANSI/BHMA A156.4 Grade 2 certification for demanding commercial applications. The 2-year limited warranty and heavy-duty 600 lb capacity rating demonstrate the engineering excellence required for high-traffic commercial environments where dependable door operation is essential.

Manufacturer Resources

Product Specs

Series:
M190 Intermediate Pivots
Duty Level:
Heavy Duty
Warranty:
2 Year Limited
Product Group:
Door Hinges and Pivots
Product Subgroup:
Pivots and Pivot Sets
Product Type:
Offset Pivot Hinges
Subcategory:
Pivot Set
Fasteners:
Torx Screws Optional
Commercial/Residential:
Commercial
Hang Type:
Offset Hung
Electronic:
No
Pivot Type:
Intermediate
Mounting Method:
Offset
Application:
Lead-Lined
Product Attribute:
Pivots
Door Hand Direction:
Handed
Fire Rating:
No
Product Substrate:
Non-ferrous
Product Category:
Door Hinges and Pivots
Department:
Door Hardware

Norton Rixson 147 X 1-1/2OS RH 626 – Frequently Asked Questions

1) What is the offset on the Rixson 147 pivot set and why does it matter?
Three quarters of an inch (19mm) from the pivot centerline to the face of the door. That offset is what lets the door clear cladding, applied panels, or frame molding as it swings, which a center-hung or butt-hung arrangement will not do. If your door face is flush and plain, an offset hung set is more prep than the opening needs.
2) Do I have to order the Rixson 147 pivot set left hand or right hand?
Handing matters here. The 147 is a handed set, and it is stocked in both left hand and right hand. Stand outside the opening: if the door swings away from you on hinges to your left, it is left hand. Get it wrong and the pivot will not take the door.
3) Can I use the Rixson 147 pivot set on a lead-lined door?
Lead-lined is the stated application for the 147. Lead lining is what pushes an X-ray room or imaging suite door well past normal leaf weight, which is why a 600 lb pivot set with intermediate support is the hardware that goes on it rather than butt hinges.
4) Is the Rixson 147 pivot set fire rated?
No. The 147 is not a fire rated pivot set, so it does not belong on a labeled opening. For a rated door assembly you need pivots carrying a fire label of their own.
5) What else do I need to order to hang a door on a Rixson 147 pivot set?
The 147 gives you the floor-mounted bottom pivot and the 180 top pivot. Add M19 intermediate pivots sized to the door height, and floor anchors suited to whatever the bottom pivot is landing in, concrete or a framed floor. Torx screws are an option on the fasteners rather than standard.
6) Does my door edge need to be beveled for Rixson offset pivots?
Yes, 1/8 inch in 2 inches on the door edge. That is the standard commercial bevel, and on an offset hung door it is what gives the leading edge room to clear the frame through the swing. A square edge will bind.
7) Will a door on Rixson 147 pivots open a full 180 degrees?
The set will swing 180 degrees where the trim allows it. Adjacent walls, projecting frame trim, or a door pull on the back side are what usually stop it short, not the pivot.
8) Should I use offset pivots or center hung pivots on a heavy commercial door?
Offset hung, like the 147, puts the pivot 3/4 inch in from the door face and swings the leaf to one side of the frame, so it works with a stop, with weatherstripping, and with cladding or molding on the face. Center hung swings both ways and sits on the door centerline, which suits a single-acting-both-directions traffic door but gives up the stop and the seal. For a heavy interior or exterior door up to 4 feet wide that has to close against a stop, offset is the arrangement.
9) Is the Rixson 147 pivot set electrified for access control?
No. It is a mechanical pivot set with no electrical transfer through it. If you need power to a lock or exit device on this opening, run it through an electric hinge or a door loop, not the pivot.
