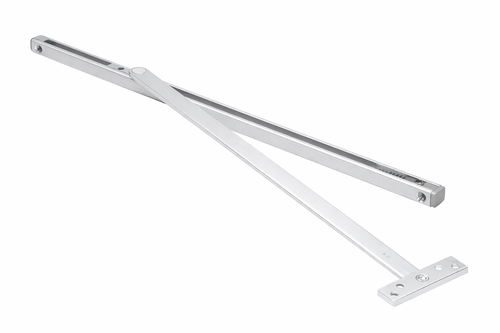

Norton Rixson 10 Series Checkmate Surface Door Stop/Holder with Slide Track Arm

Norton Rixson 10 Series Checkmate Surface Door Stop/Holder with Slide Track Arm

Professional Surface-Mounted Door Control Solution

The Norton Rixson 10 Series Checkmate Surface Door Stop/Holder provides reliable door positioning and hold-open functionality for commercial applications. This heavy-duty surface-mounted unit features a slide track arm design for smooth operation and precise door control. ANSI/BHMA A156.8 Grade 1 certified for demanding commercial environments, this single-acting door control delivers professional-grade performance with optional Torx screw fasteners for enhanced security.

Professional Features & Benefits

• Grade 1 Certification: ANSI/BHMA A156.8 Grade 1 certified models provide the highest level of performance for heavy-duty commercial applications.
• Slide Track Arm Design: Precision slide track arm mechanism ensures smooth door operation and reliable positioning throughout the door’s swing cycle.
• Hold-Open Functionality: Integrated hold-open feature allows doors to be securely positioned at desired angles for traffic flow and accessibility.
• Heavy-Duty Construction: Commercial-grade materials and construction provide long-lasting durability in high-traffic environments.
• Surface Mount Installation: Surface mounting design allows installation without door or frame modification, ideal for retrofit applications.
• Enhanced Security Options: Optional Torx screw fasteners provide tamper-resistant installation for security-sensitive applications.
• Single Acting Operation: Designed specifically for single-acting doors to provide optimal control and positioning.
• Manufacturer Warranty: 2 Year Limited warranty provides confidence and protection for commercial installations.

Technical Specifications

• ANSI/BHMA: Certain Models ANSI/BHMA A156.8, Grade 1 Certified
• Arm Specification: Slide Track
• Commercial/Residential: Commercial
• Department: Door Hardware
• Door Swing: Single Acting
• Duty Level: Heavy Duty
• Fasteners: Torx Screws Optional
• Grade: Grade 1
• Hold Open Feature: Yes
• Mounting Method: Surface
• Product Category: Door Controls
• Product Group: Door Controls
• Product Subgroup: Overhead Stops and Holders
• Product Type: Overhead Stops and Holders - Surface Mount
• Series: 9 Series
• Subcategory: Surface
• Warranty: 2 Year Limited

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Norton Rixson Quality?

Norton Rixson door control products deliver professional-grade reliability with heavy-duty construction rated for Grade 1 commercial performance. The 2 Year Limited warranty provides added confidence for demanding applications. Engineered for commercial environments where dependable door control and positioning is essential.
