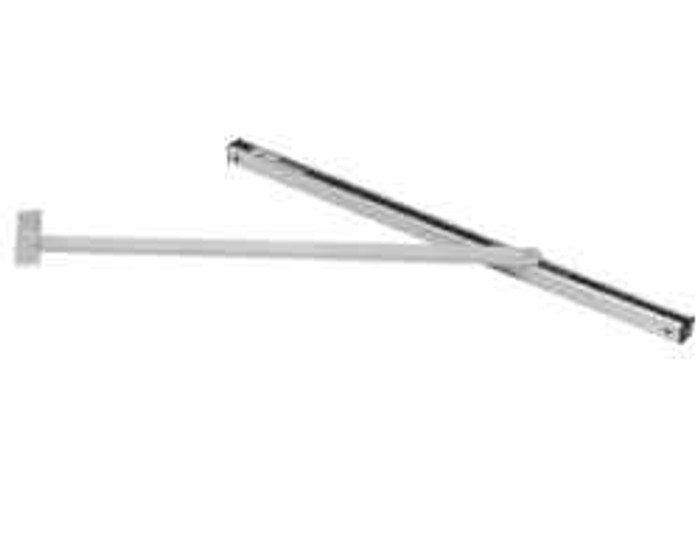

Norton Rixson 10 Series Checkmate Surface Stop & Holder - Heavy-Duty Commercial Door Control

Norton Rixson 10 Series Checkmate Surface Stop & Holder - Heavy-Duty Commercial Door Control

(No reviews yet) Write a Review

Model: 10-346-630
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$353.93
$216.19
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Norton Rixson 10 Series Checkmate Surface Stop & Holder - Heavy-Duty Commercial Door Control

Premium Combination Door Stop and Hold-Open Solution

The Norton Rixson 10 Series Checkmate Surface Stop & Holder delivers professional-grade door control for commercial and institutional applications. This dual-function unit protects doors, frames, and hardware from overextension damage while providing convenient hold-open functionality. Engineered for heavy-duty use with surface-mounted design, it accommodates wood, hollow metal, and aluminum doors in high-traffic environments. ANSI/BHMA A156.8 Grade 1 certified for reliable performance in demanding commercial settings.

Professional Features & Benefits

  • Dual-Function Design: Combines heavy-duty door stop protection with adjustable hold-open capability for maximum versatility and space efficiency.
  • Heavy-Duty Construction: Built to withstand frequent use and high-impact forces common in commercial and institutional buildings for long-term reliability.
  • Surface-Mounted Installation: Installs easily on existing frames and doors with no special floor or overhead preparation required, ideal for retrofit applications.
  • Universal Door Compatibility: Suitable for wood, hollow metal, and aluminum doors with single or double acting swing configurations.
  • Adjustable Hold-Open Function: Provides reliable hold at selected angle with easy manual release by gentle push or pull for hands-free convenience.
  • ANSI/BHMA Grade 1 Certification: Meets rigorous commercial standards for heavy-duty door control hardware ensuring code compliance and professional performance.
  • Architectural Finish Options: Available in multiple finishes including 626 Satin Chrome, 613 Oil-Rubbed Bronze, and 630 Satin Stainless to coordinate with existing hardware.
  • Non-Handed Design: Universal installation reduces inventory requirements and simplifies specification for various door configurations.

Technical Specifications

  • ANSI/BHMA: Certain Models ANSI/BHMA A156.8, Grade 1 Certified
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Door Hand Direction: Non-Handed
  • Door Swing: Single or Double Acting
  • Duty Level: Medium Duty
  • Mounting Method: Concealed
  • Product Function: Stop
  • Product Group: Door Controls
  • Product Subgroup: Overhead Stops and Holders
  • Product Type: Overhead Stops and Holders - Concealed Mount
  • Subcategory: Concealed

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Norton Rixson Quality?

Norton Rixson 10 Series Checkmate products deliver professional-grade reliability with heavy-duty construction rated for high-impact commercial applications. ANSI/BHMA A156.8 Grade 1 certification ensures compliance with rigorous commercial standards for door control hardware. Engineered for demanding institutional environments where dependable door protection and hold-open functionality are essential for daily operations.

Manufacturer Resources

Product Specs

Duty Level:
Medium Duty
Door Swing:
Single or Double Acting
ANSI/BHMA:
Certain Models ANSI/BHMA A156.8, Grade 1 Certified
Product Group:
Door Controls
Product Subgroup:
Overhead Stops and Holders
Product Type:
Overhead Stops and Holders - Concealed Mount
Subcategory:
Overhead Stops and Holders - Concealed Mount
Commercial/Residential:
Commercial
Product Function:
Stop
Door Hand Direction:
Non-Handed
Mounting Method:
Concealed
Department:
Door Hardware
Product Category:
Door Controls

Norton Rixson 10-346-630 – Frequently Asked Questions

1) Can this Checkmate stop and holder be used on a double acting door?
Yes. The 10 Series Checkmate is rated for single or double acting swing, so it suits both a conventional single-swing opening and a door that swings both directions.
2) Will the 10 Series Checkmate work on an aluminum storefront door, or is it only for hollow metal?
It covers all three common commercial door constructions: wood, hollow metal, and aluminum. That makes it usable on a glass-front aluminum entrance as well as an interior hollow metal or wood door in the same building.
3) Is the Norton Rixson Checkmate 10 Series ANSI Grade 1?
Grade 1 certification to ANSI/BHMA A156.8 applies to certain models within the 10 Series, not to every configuration in the family. If your spec sheet calls out A156.8 Grade 1, verify the specific model number you are ordering carries that certification rather than assuming it from the series.
4) What is the closest equivalent to the Norton Rixson 10 Series Checkmate concealed overhead stop and holder from another manufacturer?
The Norton Rixson 10 Series Checkmate is a medium duty, non-handed concealed mount overhead stop and holder. The closest direct counterpart is the Glynn-Johnson 410 Series, which is also a medium duty concealed overhead door holder and stop. The Sargent 1530 Series is another concealed mount stop/holder listed as medium duty with a Grade 1 rating and a 110 degree opening, so it is a reasonable cross-reference when the opening angle is specified on the drawing.
5) I only need a stop, not a hold-open. What is a simpler alternative to the Checkmate 10 Series?
The Norton Rixson 10 Series Checkmate combines a stop with an adjustable hold-open. If the opening only needs overextension protection, the Don-Jo 3023 and 3024 are standard duty concealed overhead door stops in satin stainless steel, sized for 30 inch and 36 inch doors respectively. The DORMA 711F is a standard duty concealed friction stop covering a 21 inch to 27 inch door opening. Those are stop-only or friction devices and will not give you the positive hold the Checkmate provides.
6) The frame head has no room for a concealed stop. What surface-mounted product replaces the Checkmate 10 Series?
The Norton Rixson 10 Series Checkmate is a concealed mount device and requires the channel to be let into the door. Where that prep is not possible, the Glynn-Johnson 70 Series is a heavy duty surface overhead door holder and stop with an 85 to 110 degree hold-open range, and the Glynn-Johnson 79 Series is an extra heavy duty surface overhead holder and stop. The DORMA 900 Series is another heavy duty stop and holder line to consider.
7) What are the alternatives to the Norton Rixson 10 Series Checkmate stop and holder?
Close equivalents in medium duty include the Glynn-Johnson 410 Series and the Sargent 1530, which is listed as Grade 1 with a 110 degree opening. If the opening is abused (high-traffic entry, wind load, oversized leaf), step up to the Glynn-Johnson 100 Series, the Glynn-Johnson 79 Series extra heavy duty, the Sargent 690, or the DORMA 900 Series. The ABH 1000A, 1000RA, and 1000SA add field-adjustable opening control if you want to fine-tune the stop angle after install.
8) How does the hold-open release work on the Checkmate 10 Series? Do you have to bend down to kick it?
No floor-level release. The hold-open engages at a selected angle and is released with a gentle push or pull on the door itself, so a staff member with a cart or an armload can break the hold without stooping. The hold angle is adjustable.
9) Do I need a stop and holder, or just an overhead stop?
A stop-only unit limits how far the door swings and protects the frame, wall, and closer arm from overextension. A stop and holder like the 10 Series Checkmate does that and also holds the door open at a set angle for loading, cleaning, or moving equipment. If nobody needs the door parked open, a stop-only product such as the ABH 1000 Series or the Don-Jo 3023 concealed overhead stop covers the job.
10) Do I need to cut the floor or prep the header to install the Checkmate 10 Series?
No floor prep and no overhead structural work. Installation is on the door and frame using the manufacturer's template to mark hole locations, then drilling and routing as the instructions specify before securing the unit and adjusting it through the full swing. That makes it workable as a retrofit on openings that are already hung.
11) I need to limit how far the door opens and adjust that angle in the field. Does the Checkmate 10 Series do that, or is there a better option?
The Norton Rixson 10 Series Checkmate offers an adjustable hold-open that releases with a gentle push or pull. If the requirement is specifically a field-adjustable opening stop angle, the ABH 1000A Series is a heavy-duty concealed mount stop and holder with field-adjustable opening control, and the ABH 1000RA and 1000SA Series are concealed stop and holder models with adjustable opening control. Those are the ones to quote when the spec calls out a settable degree of swing.
12) My spec sheet calls for a Grade 1 concealed overhead stop and holder. Which products meet that?
The Norton Rixson 10 Series Checkmate is certified to ANSI/BHMA A156.8 Grade 1 on certain models, so confirm the specific model against the certification listing. Among concealed alternatives, the Sargent 1530 Series is listed as Grade 1, and the Sargent 690 is a heavy duty overhead concealed stop/holder with ANSI Grade One compliance. All three are commercial-duty devices suited to institutional openings.
13) I have a double acting door. Will the Checkmate 10 Series work, and what else would?
The Norton Rixson 10 Series Checkmate is non-handed and rated for single or double acting swing, so it suits a double acting opening. If you need a heavier device for the same application, the Glynn-Johnson 100 Series is a multi-function, non-handed, commercial grade heavy duty concealed overhead holder and stop, which is the usual step up when the door sees more abuse.
14) Is the 10 Series Checkmate suitable for a residential door, or is it strictly commercial hardware?
It is classed as commercial hardware and built for the traffic in offices, schools, healthcare, retail, warehouses, multi-tenant residential, and municipal buildings. Multi-family common-area doors are a normal application; a single-family interior door is more hardware than the opening needs.
