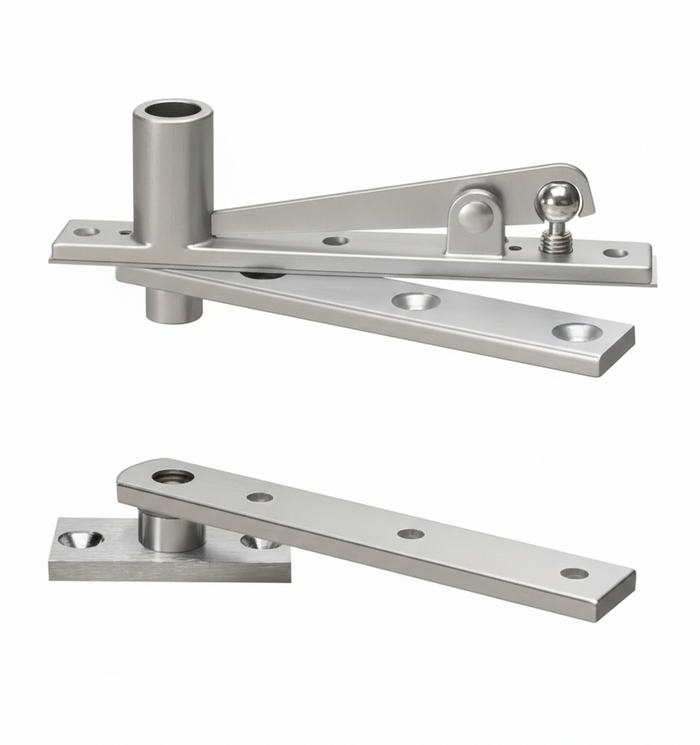

Norton Rixson 128-3/4 Series Center Hung Pivot Set for Commercial Doors up to 300 lbs

Norton Rixson 128-3/4 Series Center Hung Pivot Set for Commercial Doors up to 300 lbs

(No reviews yet) Write a Review

Model: 128-3/4 626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$505.00
$310.66
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Norton Rixson 128-3/4 Series Center Hung Pivot Set for Commercial Doors up to 300 lbs

Premium Center Hung Pivot System for Commercial Applications

The Norton Rixson 128-3/4 Series Center Hung Pivot Set delivers professional-grade door hardware engineered for commercial and institutional environments. This premium pivot system supports doors up to 300 lbs with standard 1-3/4" door thickness, featuring cast brass and steel construction with self-lubricating bearings for smooth, reliable operation. ANSI/BHMA A156.4 Grade 1 certified for demanding commercial applications where precise alignment and long-lasting durability are essential.

Professional Features & Benefits

  • Heavy-Duty Load Capacity: Supports doors up to 300 lbs with superior strength and stability for medium to heavy commercial doors.
  • Standard Door Thickness Compatibility: Designed for standard 1-3/4" (44 mm) door thickness for versatile commercial installation options.
  • Premium Construction Materials: Cast brass and steel construction provides exceptional durability for high-traffic commercial environments.
  • Self-Lubricating Bearing System: Maintenance-free operation with quiet, smooth movement throughout the door’s operational life.
  • Center Hung Design: Transfers door weight to the floor for effortless rotation and reduced stress on the frame structure.
  • ANSI/BHMA Grade 1 Certification: Meets ANSI/BHMA A156.4 Grade 1 standards for commercial-grade performance and reliability.
  • ADA Compliance Ready: Compatible with ADA requirements for easy, low-resistance door operation in accessible applications.
  • Manufacturer Warranty: 2 Year Limited warranty for added confidence and protection in commercial installations.

Technical Specifications

  • ANSI/BHMA: ANSI/BHMA A156.4, Grade 1
  • Application: Standard Door
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Door Hand Direction: Non-Handed
  • Door Weight: Up to 300 lbs
  • Duty Level: Standard Duty
  • Electronic: No
  • Fire Rating: No
  • Grade: Grade 1
  • Hang Type: Center Hung
  • Mounting Method: Center Hung
  • Pivot Type: Top & Bottom
  • Product Attribute: Pivots
  • Product Category: Door Hinges and Pivots
  • Product Group: Door Hinges and Pivots
  • Product Subgroup: Pivots and Pivot Sets
  • Product Substrate: Steel
  • Product Type: Pivot Hinges
  • Series: 128 Series
  • Subcategory: Center Hung
  • Warranty: 2 Year Limited

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, weight capacity, and floor/header mounting conditions for this center hung pivot system.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door, floor, and header surfaces for proper pivot alignment.
  3. Prepare door, floor, and header by drilling required holes and routing as specified in manufacturer instructions for top and bottom pivot mounting.
  4. Install floor pivot assembly first, ensuring proper alignment and secure mounting to structural floor elements per manufacturer specifications.
  5. Mount header pivot assembly and install door with pivot pins, verifying proper weight distribution and alignment throughout installation.
  6. Test pivot operation to verify smooth rotation, proper door alignment, and balanced swing operation. Make final adjustments as needed and refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Norton Rixson Quality?

Norton Rixson pivot systems deliver professional-grade reliability with cast brass and steel construction rated for doors up to 300 lbs and certified to ANSI/BHMA A156.4 Grade 1 standards. The 2 Year Limited warranty provides added confidence in demanding commercial applications. Engineered for high-traffic environments where dependable performance and smooth, maintenance-free operation are essential.

Manufacturer Resources

Product Specs

Series:
128 Series
Duty Level:
Standard Duty
Hang Type:
Center Hung
Grade:
Grade 1
Warranty:
2 Year Limited
ANSI/BHMA:
ANSI/BHMA A156.4, Grade 1
Product Group:
Door Hinges and Pivots
Product Subgroup:
Pivots and Pivot Sets
Product Type:
Center-Hung Pivot Hinges
Subcategory:
Pivot Hinges
Door Weight:
Up to 300 lbs
Commercial/Residential:
Commercial
Electronic:
No
Pivot Type:
Top & Bottom
Mounting Method:
Center Hung
Application:
Standard Door
Product Attribute:
Pivots
Door Hand Direction:
Non-Handed
Fire Rating:
No
Product Category:
Door Hinges and Pivots
Product Substrate:
Steel
Department:
Door Hardware

Norton Rixson 128-3/4 626 – Frequently Asked Questions

1) What door thickness does the Rixson 128-3/4 center hung pivot fit?
It's built for standard 1-3/4 inch (44 mm) commercial door thickness. That's the thickness on essentially every commercial hollow metal and solid core leaf, so if you're replacing hardware on a typical office, school, or healthcare opening it matches. A 1-3/8 inch interior door is thinner than what this set is prepped for.
2) Do I need to order the Rixson 128-3/4 pivot set handed for a left or right hand door?
No handing to specify. The 128-3/4 pivot set is non-handed, so one part number covers left hand, right hand, and reverse bevel openings. For a property manager standardizing across a building, that means one item on the order instead of a handed pair for every door.
3) What is the difference between the Top Pivot and Less Top Pivot options on the Rixson 128-3/4?
That option decides whether the top pivot ships with the set. Order Top Pivot when you're doing a complete pivot installation and need both the intermediate/top pivot and the bottom. Order Less Top Pivot (LTP) when the head already carries the top pivot, which is the usual case when an overhead concealed closer or an existing header assembly provides it. Ordering the full set when the header already has a top pivot leaves you with a part you can't use; ordering LTP when nothing is up top leaves the door with no upper bearing point. Check the header before you pick.
4) Can I use the Rixson 128-3/4 pivot set on a fire rated door opening?
No. The 128-3/4 pivot set does not carry a fire rating, so it should not go on a labeled fire door assembly. For rated openings you need pivot hardware that is listed for the assembly. This set is for non-rated commercial doors, where it's certified to ANSI/BHMA A156.4 Grade 1.
5) Should I use center hung pivots or offset pivots on a commercial door?
Center hung, which is what the 128-3/4 is, puts the pivot point roughly on the centerline of the door so the leaf rotates within the opening and can swing both directions. That's the arrangement you want for balanced traffic doors and for openings where the door needs to sit in the frame rather than clear it. Offset pivots swing the door out past the frame face and are the choice when you need full clear opening width or hardware and stops that a center hung leaf would strike. Also note that center hung transfers the door weight into the floor, so you need a structural floor condition under the bottom pivot, not just a topping slab.
6) Is the Rixson 128-3/4 pivot set Grade 1 for an institutional spec?
It's certified to ANSI/BHMA A156.4 Grade 1, the top performance tier in the pivot and closer standard, which is what most institutional and government specs call out for commercial door hardware. Duty level is listed as standard duty and the application is standard commercial doors, so it meets the Grade 1 line item without being a high-frequency traffic pivot.
7) Is the Rixson 128-3/4 an electrified pivot for power transfer to the door?
No. It's a mechanical pivot set with no electrical provision, so it won't carry power through to an electrified lock, exit device, or card reader on the leaf. If the opening needs power to the door, that has to come from a separate electric power transfer or an electrified pivot, and the 128-3/4 handles the pivoting only.
8) What finishes can I get the Rixson 128-3/4 pivot set in to match the rest of my door hardware?
Four finishes: 606 satin brass, 613 oil-rubbed satin bronze, 625 bright chrome, and 626 satin chrome. All four are available with the top pivot or as Less Top Pivot. 626 satin chrome is the usual match for commercial lever and closer hardware, 613 for a dark bronze storefront or hospitality package.
9) Do Rixson 128-3/4 pivots need lubrication or maintenance once installed?
No routine lubrication. The pivots use self-lubricating bearings, so an MRO crew isn't scheduling grease intervals on them. The cast brass and steel construction is what carries the load over the life of the opening.
