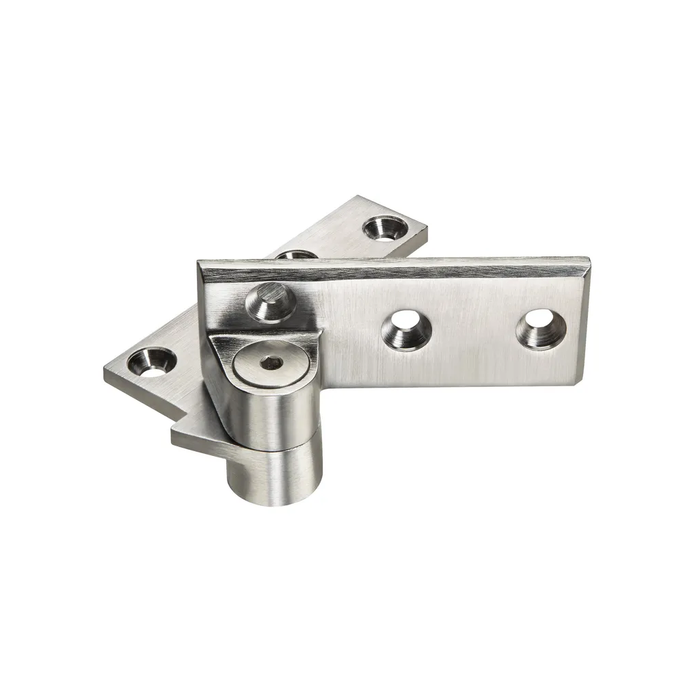

Norton Rixson 380 Series 3/4" Offset Top Pivot Set for Channel Iron Frames

Norton Rixson 380 Series 3/4" Offset Top Pivot Set for Channel Iron Frames

(No reviews yet) Write a Review

Model: 380 626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$463.68
$426.31
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Norton Rixson 380 Series 3/4" Offset Top Pivot Set for Channel Iron Frames

Professional Offset Hung Top Pivot Solution

The Norton Rixson 380 Series 3/4" Offset Top Pivot Set provides a reliable solution for applications where the jamb portion cannot be mortised. This offset hung top pivot features a 3/4" (19mm) offset measured from centerline of pivot to face of door, designed specifically for channel iron door frames with aluminum, hollow metal, or wood doors. The half surface, handed design ensures proper flush door and frame application with non-ferrous base material construction.

Professional Features & Benefits

  • Precise 3/4" Offset Design: 3/4" (19mm) offset measured from centerline of pivot to face of door provides optimal clearance for channel iron frame applications.
  • Versatile Door Compatibility: Designed for channel iron door frames with aluminum, hollow metal, or wood doors for flexible installation options.
  • Half Surface Handed Configuration: Handed design ensures proper operation and flush door and frame application.
  • Non-Ferrous Construction: Non-ferrous base material provides corrosion resistance and durability for long-term performance.
  • Fire Door Assembly Ready: Available for fire door assemblies with ferrous material specification (F380 model) for code compliance applications.
  • Lead-Lined Door Compatibility: Door portion from L180 pivot available for lead-lined door applications (specify L380 and door thickness).
  • Custom Pivot Pin Options: Available with longer than standard pivot pins in 1/4" (6mm), 1/2" (13mm), or 3/4" (19mm) increments for specialized applications.
  • Complete Hardware Package: Furnished with both wood and machine screws for versatile mounting requirements.
  • 2 Year Limited Warranty: Manufacturer warranty provides added confidence and protection for professional installations.

Technical Specifications

  • Application: Heavy-Duty
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Door Hand Direction: Handed
  • Duty Level: Standard Duty
  • Electronic: No
  • Fasteners: Torx Screws Optional
  • Fire Rating: No
  • Hang Type: Offset Hung
  • Mounting Method: Offset
  • Pivot Type: Top & Bottom
  • Product Attribute: Pivots
  • Product Category: Door Hinges and Pivots
  • Product Group: Door Hinges and Pivots
  • Product Subgroup: Pivots and Pivot Sets
  • Product Substrate: Non-ferrous
  • Product Type: Pivot Hinges
  • Series: 380 Series
  • Subcategory: Top Pivots
  • Warranty: 2 Year Limited

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Norton Rixson Quality?

Norton Rixson pivot hardware delivers professional-grade reliability with non-ferrous construction engineered for demanding commercial applications. The 380 Series features precise 3/4" offset design with comprehensive hardware package including wood and machine screws for versatile installation requirements. Backed by a 2 Year Limited warranty, this pivot set provides dependable performance where jamb mortising is not possible.

Product Specs

Series:
380 Series
Duty Level:
Standard Duty
Hang Type:
Offset Hung
Warranty:
2 Year Limited
Product Group:
Door Hinges and Pivots
Product Subgroup:
Pivots and Pivot Sets
Product Type:
Offset Pivot Hinges
Subcategory:
Top Pivots
Fasteners:
Torx Screws Optional
Commercial/Residential:
Commercial
Electronic:
No
Pivot Type:
Top & Bottom
Mounting Method:
Offset
Application:
Heavy-Duty
Product Attribute:
Pivots
Door Hand Direction:
Handed
Fire Rating:
No
Product Category:
Door Hinges and Pivots
Product Substrate:
Non-ferrous
Department:
Door Hardware

Norton Rixson 380 626 – Frequently Asked Questions

1) Can I use a top pivot when the frame jamb can't be mortised?
That's exactly what the Norton Rixson 380 Series offset top pivot is for. It's a half surface pivot, so the jamb portion mounts to the face rather than into a mortised jamb pocket. That makes it the answer on channel iron frames, where there's no jamb material to rout. If your frame can take a mortised jamb prep, a standard mortised top pivot is the cleaner install; the 380 exists for the openings where that isn't possible.
2) What does the 3/4 inch offset on a Rixson 380 pivot actually measure?
The 3/4 inch (19mm) is measured from the centerline of the pivot to the face of the door. That's the dimension that sets how far the door stands off the frame and how it swings clear, so it has to match the offset of the bottom pivot or floor closer you're pairing it with. Offset hung, not center hung, so the door pivots outboard of the frame face rather than in the middle of the opening.
3) Will the Rixson 380 top pivot work on an aluminum door, or only hollow metal?
Aluminum, hollow metal, and wood doors all work with the 380 Series top pivot, provided the frame is channel iron. The door and frame need to be flush to each other for the half surface application to sit correctly.
4) Do I need to specify hand when ordering a 380 offset top pivot?
Yes, hand it. The 380 Series is a handed pivot, so a left hand unit will not work on a right hand opening. Determine the hand from the outside of the door (the side you approach from), and order to that. Getting it wrong here means the pivot goes back, not on the door.
5) Is the Rixson 380 pivot approved for a fire door?
No. The 380 is built with non-ferrous base material and is not a fire rated pivot. For a fire door assembly, the ferrous version is what you want: specify the F380 instead. Same 3/4 inch offset arrangement, different base material, and the material is the whole reason one goes on a fire door and the other doesn't.
6) What pivot do I use on a lead-lined door in an X-ray room?
Order it as an L380. The door portion then comes from the L180 pivot, which is the arrangement for lead-lined doors, and you have to state the door thickness when you order because the lead-lined door portion is made to that thickness. This comes up constantly on imaging suites and dental operatories where the door is heavier and thicker than a standard leaf.
7) Is the 380 a complete pivot set, or just the top pivot?
The 380 Series covers the top pivot for an offset hung door. An offset hung door runs on a top and bottom pivot pair, so you still need the matching bottom pivot or offset floor closer at 3/4 inch offset for the same hand. Order the two together and match the offset dimension across both, or the door will bind.
8) My door sits low or the frame is out of alignment. Can I get a longer pivot pin on a Rixson 380?
Longer than standard pivot pins are available in 1/4 inch (6mm), 1/2 inch (13mm), and 3/4 inch (19mm) increments. Call out the increment you need when you place the order. That's the fix when frame conditions or an added floor covering leave you short of engagement with the standard pin.
9) Does the 380 top pivot set include screws, or do I need to supply fasteners?
Both wood screws and machine screws come with the set, so you're covered whether you're landing into a wood door or into metal. Torx screws are an option if your spec calls for them or you want a security head on an exposed half surface plate. Nothing else is required to mount the pivot itself.
10) What finishes does the Norton Rixson 380 offset top pivot come in?
Ten finishes, so it can be matched to whatever else is on the opening: 605 bright brass, 606 satin brass, 611 bright bronze, 612 satin bronze, 613 oil-rubbed satin bronze, 618 bright nickel, 619 satin nickel, 622 matte black, 625 bright chrome, and 626 satin chrome. On a half surface pivot the jamb plate is visible, so finish matters more here than it does on a mortised pivot.
11) Is the Rixson 380 pivot rated for high traffic entrances?
It's a commercial heavy-duty application pivot at a standard duty level, which suits it to office building entries, schools, retail, healthcare corridors, and multi-tenant residential. For an opening cycling constantly all day at a main building entrance, step up to a heavy duty offset pivot rather than leaning on a standard duty unit.
12) I'm standardizing pivots across a building. Is the 380 an electrified pivot for power transfer?
No power transfer here. The 380 is a mechanical pivot only, with no electrical path through it. If you're running power to an electric lock or an exit device on that leaf, plan on a separate electric power transfer or a door loop; the pivot won't carry it.
13) Will a non-ferrous pivot hold up in a pool building or a coastal entrance?
The 380's base material is non-ferrous, which is why it resists corrosion better than a plain steel pivot in damp or chemically aggressive air. Natatoriums, coastal exteriors, and washdown areas are where that matters. Pair it with a corrosion-appropriate finish, and note that this same non-ferrous construction is what rules it out of fire door assemblies.
