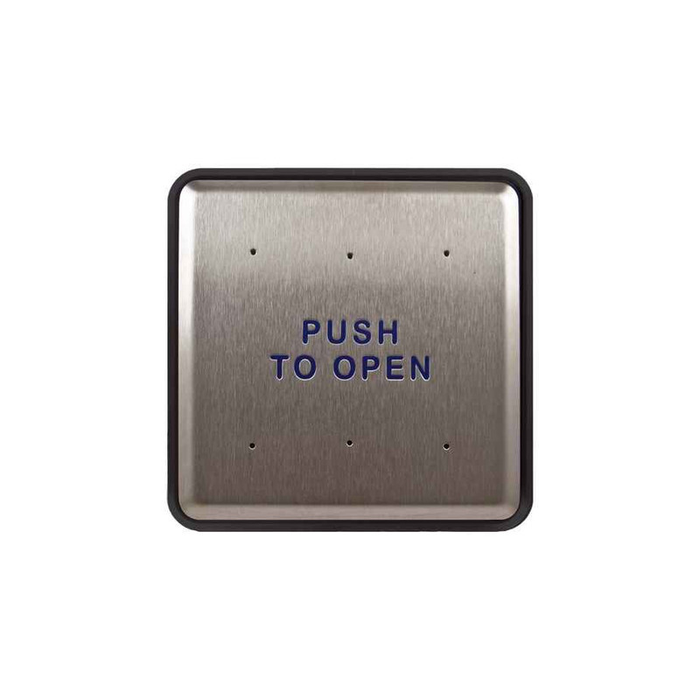

Norton Rixson 507/532 Push Switch - 6" x 6" Stainless Steel Door Control Plate with RF Option

Norton Rixson 507/532 Push Switch - 6" x 6" Stainless Steel Door Control Plate with RF Option

(No reviews yet) Write a Review

Model: 507 NOR

In Stock (leaves warehouse same day if ordered before 3pm ET)

$277.78
$215.40
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Norton Rixson 507/532 Push Switch - 6" x 6" Stainless Steel Door Control Plate with RF Option

Professional Push-to-Open Door Control Solution

The Norton Rixson 507/532 Push Switch delivers reliable door control activation with its 6" W x 6" H stainless steel construction and dual power options. This flush-mounted control plate operates on 9 volt battery power and handles 15 amp @ 125 VAC switching capacity, offering both hardwired and radio frequency (RF) connectivity options for versatile installation requirements. The durable stainless steel plate features blue lettering for clear visibility and professional appearance in commercial applications.

Professional Features & Benefits

  • Optimal Dimensions: 6" W x 6" H size provides excellent visibility and easy activation while maintaining professional appearance.
  • Dual Power Options: 9 volt battery operation with hardwired or RF connectivity options for flexible installation configurations.
  • Heavy-Duty Switching: 15 amp @ 125 VAC capacity handles demanding electrical loads for reliable door operator control.
  • Durable Construction: Stainless steel plate with blue letters provides corrosion resistance and clear identification for long-term performance.
  • Flush Mount Design: Low-profile installation reduces vandalism risk while maintaining clean architectural appearance.
  • Wide Operator Compatibility: Works with Norton Rixson 5600, 5700, 6000, and 6300 Series operators for versatile system integration.
  • Professional Installation: Push-to-open activation provides intuitive operation for accessibility compliance applications.

Technical Specifications

  • Commercial/Residential: Commercial
  • Compatibilty: All Low Energy Operators Except 5800
  • Department: Door Hardware
  • Electronic: Yes
  • Product Category: Electronic Access Controls
  • Product Group: Electronic Access Controls
  • Product Model: 507/532
  • Product Subgroup: Sensors, Switches, Relays and Timers
  • Product Type: Switches
  • Subcategory: Accessories

Installation & Operation

  1. Verify electrical requirements match available power supply. Confirm 9 volt battery capacity and 15 amp @ 125 VAC switching requirements before proceeding.
  2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
  3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
  4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
  5. Configure operational settings including hardwired or RF connectivity options per application requirements.
  6. Restore power and test all functions including push-to-open operation, switching capacity, and integration with connected door operators.
  7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

  • Commercial Building Accessibility Systems
  • Healthcare Facility Door Control
  • Educational Institution Access Points
  • Retail Establishment Entry Systems
  • Industrial Facility Door Automation
  • Government Building Access Control
  • Multi-Tenant Residential Properties

Why Choose Norton Rixson Quality?

Norton Rixson door control switches deliver professional-grade reliability with stainless steel construction and 15 amp switching capacity for demanding commercial applications. The 507/532 model's compatibility with multiple operator series and dual connectivity options ensures versatile integration capabilities. Engineered for accessibility compliance and long-term performance where dependable door control activation is essential.

Manufacturer Resources

Norton Rixson Warranty

Product Specs

Product Group:
Electronic Access Controls
Product Subgroup:
Sensors, Switches, Relays and Timers
Product Type:
Switches
Subcategory:
Accessories
Commercial/Residential:
Commercial
Electronic:
Yes
Compatibility:
All Low Energy Operators Except 5800
Product Model:
507/532
Product Category:
Electronic Access Controls
Department:
Door Hardware

Norton Rixson 507 NOR – Frequently Asked Questions

1) What is the difference between the hard wired and RF versions of the Norton Rixson 507/532 push switch?
Two system choices: hard wired or radio frequency. Hard wired runs a cable from the plate back to the operator, which is what you want on new construction or anywhere you can get conduit in. The RF version runs on 9 volt battery power and transmits to the operator instead, so it is the option when you are retrofitting an existing wall, a masonry column, or a bollard where fishing wire is not practical. Same 6 inch by 6 inch stainless plate either way.
2) Can I use the Norton Rixson 507/532 push switch as an exit release for a maglock?
No. This plate is built as the activation input for Norton Rixson low energy operators, and it carries no exit or request-to-exit labeling. For releasing a locked door you want a plate marked for it: the Dortronics 5286 Series push plate exit release reads "Push to Exit", and the Dortronics 5287 Series heavy duty push button uses a 1-1/2 inch wide push plate on a 3 inch wide back plate with the same text.
3) What should I use instead of a push plate where staff cannot touch the switch - healthcare or clean areas?
The Norton Rixson 507/532 requires physical contact to activate. For hands-free activation at the same kind of opening, the RCI 913 microwave motion switch uses Doppler radar technology and is intended for sterile environments, and the RCI 910TC Series is a touchless actuator with a 433 MHz remote control running on 12/24 VDC. The Locknetics WS-200 and WS-200-MB are flush mount wave switches. The Cal-Royal 8633-SW is a microwave cell switch supplied with single and double gang black faceplates. Any of these removes the contact step the 507/532 depends on.
4) What is the closest equivalent to the Norton Rixson 507/532 push switch from another brand?
The Norton Rixson 507/532 is a 6" W x 6" H stainless steel push-to-open control plate with blue lettering, offered in hard wired and radio frequency versions. The closest cross-brand equivalent is the Dortronics 5286 Series push plate exit release, which is a push plate carrying "Push to Exit" text. Both are plate-style push actuators mounted at the opening; the Norton Rixson carries the 9 volt battery and RF option, while the Dortronics 5286 is a wired push plate release. If the plate is driving a low energy operator, the 507/532 is stated compatible with all low energy operators except the 5800.
5) I need a smaller actuator than a 6 inch square plate - what can I use instead?
When the frame or wall space will not take the 6" W x 6" H Norton Rixson 507/532 plate, smaller-footprint actuators include the Dortronics 5287 Series heavy duty push button, which uses a 1-1/2" wide push plate on a 3" wide back plate with "Push to Exit" text, and the RCI 916 Series tamper-resistant push button, a 1-3/4" button with a blue handicap logo. The Dortronics WR5276-HD22 Series goes smaller still with a 5/8" round stainless entry button. All three trade the large strike area of the 507/532 for a narrower mounting footprint.
6) Does the Norton Rixson 507 push plate tell the operator the door is closed?
No. It is an activation switch only, so it starts the operator cycle when someone pushes it. Door position monitoring is a separate device: the Schlage Electronics 7764 magnetic door position switch is a concealed flush mount SPDT unit, and the 7766 is the surface mount version of the same thing. If your access control panel needs a door status contact, order one of those alongside the actuator.
7) Can the Norton Rixson 507 switch handle a 120 volt load, or is it low voltage only?
Contacts are rated 15 amps at 125 VAC, so the switch itself is not limited to a dry low voltage signal. In practice you still wire it as the actuator input to the operator per the operator's diagram; the rating just means the contact set has plenty of margin for the control loads you will put through it.
8) How many push plates do I need for an automatic door opening, one or two?
Plan on a pair for most accessible entrances: one on the approach side and one on the egress side, since a person in a chair has to be able to trigger the operator from either direction. Both can be 507/532 plates, and you can mix the systems, running the interior one hard wired to the operator and the exterior one on RF where you cannot get a wire across the opening. Vestibules with two operators need a plate set per opening.
9) What powers the RF version of the Norton 507/532 push switch and does it need a transformer at the plate?
The radio frequency version runs on a 9 volt battery at the plate, so there is no line voltage or low voltage run to the actuator location. That is the whole point of choosing it on a retrofit: no wire in the wall, no transformer, just the battery in the plate and the receiver at the operator. Build battery replacement into the maintenance schedule for the opening.
10) For an exterior or wash-down opening, is the 507/532 the right actuator?
The Norton Rixson 507/532 is a stainless steel plate for commercial door control, but where the actuator will see weather or direct washing, the comparable set has purpose-built options: the Dortronics 5277-PZL Series is a weather proof heavy duty touch sensitive piezo push button with a dual-color illuminated ring, and the Dortronics WR5276-HD22 Series is a heavy duty water proof switch with a 5/8" round stainless entry button. Both are built for wet exposure; the 507/532 gives you the larger 6" square strike area and the RF option instead.
11) Is a Schlage 7764 or 7766 door position switch a substitute for the Norton Rixson 507/532?
No. The Schlage Electronics 7764 and 7766 are magnetic door position switches - the 7764 concealed flush mount, the 7766 surface mount, both single pole double throw - and their function is reporting whether the door is open or closed. The Norton Rixson 507/532 is a push-to-open control plate a person presses to command the operator. The two are commonly specified on the same opening for different jobs, so a position switch does not replace the actuator.
12) I need key control or a concealed release, not a public push plate - what are the options?
The Norton Rixson 507/532 is a visible 6" square plate meant to be pressed by anyone approaching the door. Where activation should be restricted or hidden, the Detex CS-400 Series electronic keyswitches with LED indicators put the release behind a key, and the Locknetics CSW-100 / CSW-200 is a flush mount concealed desk release with an SPDT switch for activation from a staffed desk. The Locknetics TS-100 is a touch switch with dual LED status indicators and a programmable timer where hold time needs to be set at the switch.
13) Can a request-to-exit switch kit take the place of a push plate on the door?
No. The Command Access REXKIT-CL is a field installable request to exit switch kit with an SPDT configuration that installs into CL180 Series cylindrical locks - it signals the system when the lever is turned, from inside the lock body. The Norton Rixson 507/532 is a separate wall or frame mounted 6" x 6" stainless plate the user presses to drive a low energy operator, stated compatible with all low energy operators except the 5800. If the opening has an operator that has to be commanded to swing, the REXKIT-CL does not do that job.
14) Will the blue lettered stainless plate match the other handicap actuators in my building?
The 507/532 is a stainless steel plate with blue letters, which is the standard look for accessible entrance actuators and will read consistently against most existing blue-on-stainless plates in a facility. If your other openings use round buttons rather than square plates, the RCI 916 Series tamper-resistant push button carries a blue handicap logo in a 1-3/4 inch size.
15) I need a hidden release at a reception desk, not a wall plate. What should I use instead of the Norton 507?
A 6 inch square wall plate is the wrong tool for a concealed desk release. The Locknetics CSW-100 and CSW-200 are flush mount concealed desk releases with an SPDT switch, made to mount under a counter out of public view. The Locknetics TS-100 is another desk-side option, a touch switch with dual LED status indicators and a programmable timer.
16) What is the difference between the Norton Rixson 507/532 and the RCI 903?
They do different jobs at the opening. The RCI 903 Series is an audible alert rated 80-96dB with a tamper-resistant design - it annunciates rather than actuates. The Norton Rixson 507/532 is the push-to-open control plate that signals the operator, 6" W x 6" H in stainless steel with 15 amp at 125 VAC switching capacity. A door alarmed by a 903 still needs a separate actuator to open it.
