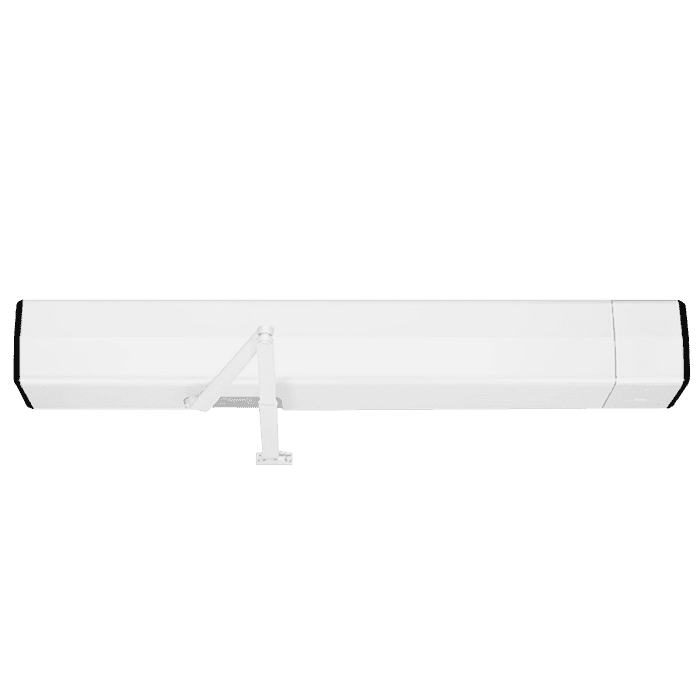

Norton Rixson 6061 Low Energy Surface Mounted Electrohydraulic Door Operator, Double Lever Arm Heavy Duty

Norton Rixson 6000 Series Low Energy Electrohydraulic Door Operator with Double Lever Arm Heavy Duty Construction

(No reviews yet) Write a Review

Model: 6061 689
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$9,890.53
$5,466.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Norton Rixson 6000 Series Low Energy Electrohydraulic Door Operator with Double Lever Arm Heavy Duty Construction

Professional Double Door Power Operator Solution

The Norton Rixson 6000 Series Low Energy Electrohydraulic Door Operator delivers reliable automated operation for double doors with maximum door weight capacity of 250lbs and door width compatibility from 36" to 48". This heavy-duty surface mounted operator features advanced electrohydraulic technology with non-handed design for push or pull side mounting. ANSI/BHMA A156.19 certified and ADA compliant, this operator provides smooth, consistent performance for high-traffic commercial applications while operating as a mechanical door closer when power is off.

Professional Features & Benefits

  • Door Compatibility: Accommodates door widths from 36" to 48" with maximum door weight capacity of 250lbs for versatile installation options.
  • Heavy-Duty Construction: Heavy-duty composition from backplate to internal components ensures long-lasting performance in high-traffic commercial environments.
  • Flexible Mounting Options: Non-handed design allows push or pull side mounting for interior and exterior door applications with modular design and minimal components.
  • Advanced Control Integration: Compatible with door switches, wave-to-open switches, and radio frequency (RF) devices for enhanced accessibility and reduced germ transmission.
  • Onboard Programming: Programming through onboard LCN screen with WiFi graphic interface allows fast, easy setup and adjustments on any device.
  • Backup Operation: Operates as mechanical door closer when power is off, ensuring continuous door control functionality.
  • Data Collection: On-board electronics collect usage and cycle count data to facilitate preventative maintenance scheduling.
  • Manufacturer Warranty: 2 Year Limited warranty provides added confidence and protection for commercial installations.

Technical Specifications

  • ADA Compliant: Yes
  • ANSI/BHMA: ANSI/BHMA A156.19
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Duty Level: Heavy Duty
  • Hold Open Feature: Yes
  • Product Category: Door Controls
  • Product Group: Door Controls
  • Product Subgroup: Power Operators
  • Product Type: Low Energy Operators
  • Series: 6000 Series
  • Subcategory: Surface Closers
  • Traffic Rating: High Traffic
  • Warranty: 2 Year Limited

Installation & Operation

  1. Verify electrical requirements match available power supply and confirm door weight does not exceed 250lbs maximum capacity.
  2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
  3. Mount the operator using the heavy-duty backplate as a template, ensuring adequate clearance for double lever arm operation and future service access.
  4. Route and connect wiring according to manufacturer wiring diagrams, integrating with door switches, wave-to-open switches, or RF devices as required.
  5. Configure operational settings through the onboard LCN screen and WiFi graphic interface per application requirements.
  6. Restore power and test all functions including normal operation, hold-open feature, backup mechanical operation, and integration with connected activation devices.
  7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Healthcare Institutions
  • Educational Facilities
  • Retail Establishments
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties
  • Industrial and Warehouse Facilities

Why Choose Norton Rixson Quality?

Norton Rixson 6000 Series operators deliver professional-grade reliability with heavy-duty construction from backplate to internal components, certified to ANSI/BHMA A156.19 standards and tested to UL/cUL 325 for automatic operators. The 2 Year Limited warranty and comprehensive certifications including ADA compliance, CAL FIRE approval, and UL 10C positive pressure rating demonstrate the engineering excellence built into every unit. Engineered for demanding commercial applications where dependable automated door operation and accessibility compliance are essential.

Product Specs

Series:
6000 Series
Duty Level:
Heavy Duty
Warranty:
2 Year Limited
ANSI/BHMA:
ANSI/BHMA A156.19
Product Group:
Door Controls
Product Subgroup:
Power Operators
Product Type:
Low Energy Operators
Subcategory:
Low Energy Operators
Commercial/Residential:
Commercial
ADA Compliant:
Yes
Traffic Rating:
High Traffic
Hold Open Feature:
Yes
Product Category:
Door Controls
Department:
Door Hardware

Norton Rixson 6061 689 – Frequently Asked Questions

1) What happens to the door if the power goes out on a Norton Rixson 6000 Series operator?
It reverts to a mechanical door closer. When power is off the 6000 Series operator keeps closing and controlling the door manually, so the opening stays latched and code compliant rather than swinging free. That's the answer to the question a facilities manager asks about an outage or a tripped circuit: the door still closes, it just no longer opens on its own until power returns.
2) Do I need to specify handing or push side versus pull side for the Norton Rixson 6061 operator?
No handing to call out. The 6000 Series operator is non-handed and mounts on either the push or pull side, so one unit covers left hand, right hand, interior and exterior openings. That matters if you're standardizing across a building: you stock one operator rather than a handed pair. You still specify finish, which comes in 689 Aluminum, 690 Dark Bronze, BSP Black Suede Powder, and WSP White Suede Powder.
3) Does the Norton Rixson 6000 Series operator meet ADA and the automatic door standard for a low energy opening?
Yes on both counts. The 6000 Series operator is ADA compliant and certified to ANSI/BHMA A156.19, which is the standard governing power assist and low energy power operated doors. For an institutional spec, those are the two lines the drawing usually calls for on an accessible entrance, and both are stated for this operator.
4) What is the closest equivalent to the Norton Rixson 6061 low energy operator from another manufacturer?
The Dormakaba ED50LE is the nearest match on duty class. Both are heavy duty low energy swing door operators: the Norton Rixson 6000 Series unit is rated heavy duty, and the DORMA ED50LE is described as a medium to heavy duty swing door operator. The difference to check before you order is drive type - the 6000 Series is electrohydraulic, while the LCN Benchmark 9131 and 9142 operators are electromechanical, which changes what a service tech carries for adjustment and repair.
5) The door is heavier than 250 lbs - what low energy operator should be used instead of the Norton Rixson 6061?
The 6000 Series operator carries a maximum door weight of 250 lbs, so an opening above that is outside its range. Do not step down to the LCN 6440 or 6440XP COMPACT operators - both are rated for 185 lb doors, which is lighter still. Look instead at the heavy duty Dormakaba ED50LE or the DORMA ED900 swing door operator and confirm the weight rating for your leaf width with the manufacturer.
6) The opening only allows pull side mounting - which low energy operator fits?
The Norton Rixson 6000 Series operator is non-handed and mounts on either the push or pull side, so a pull side only condition is within its range. If you are comparing dedicated units, the LCN 9131 Benchmark operator is a pull side mount and the LCN 9142 Benchmark is a push side mount, meaning each is committed to one side while the 6000 Series covers both from one part number.
7) Do the comparable low energy operators meet the same accessibility standard as the Norton Rixson 6061?
The Norton Rixson 6000 Series operator is ADA compliant and certified to ANSI/BHMA A156.19, the standard for power assist and low energy power operated doors. Among the peers, the LCN 9131 Benchmark operator is identified with ADA compliance. For a facility submittal, request the A156.19 certification directly from the manufacturer of any peer you are considering rather than relying on the low energy label alone.
8) Can I add a wave to open or touchless switch to a Norton Rixson 6000 Series operator?
Yes. The 6000 Series operator works with door switches, wave to open switches, and radio frequency devices, which is the usual package for a touchless entrance in healthcare or a school. Those activation devices are separate items and get ordered alongside the operator, then wired in per the manufacturer's diagram. Budget for at least one actuator per approach side of the opening.
9) What is the difference between an electrohydraulic door operator and an electromechanical one?
The Norton Rixson 6000 Series is electrohydraulic, meaning the same hydraulic body that controls closing speed does the work, and it falls back to acting as a plain mechanical closer with no power. Electromechanical operators use a motor and gear train instead. ZenSupply carries both approaches: the LCN 9131 Benchmark (pull side mount) and LCN 9142 Benchmark (push side mount) are electromechanical low energy operators, each dedicated to one mounting side rather than the non-handed either-side arrangement of the 6000.
10) What else does ZenSupply carry that competes with the Norton Rixson 6000 Series low energy operator?
Several. The Dormakaba ED100LE and DORMA ED50LE are low energy swing door operators, the ED50LE being the heavy duty one of that pair. The Cal-Royal 8600 Series adds obstacle detection, and the SDC AUTOP Series is microprocessor controlled. On the LCN side you have the 9131 and 9142 Benchmark units and the 6440 COMPACT modules. Where the 6000 Series differs is the electrohydraulic drive with mechanical closer fallback and the non-handed body that mounts push or pull side.
11) Is the Norton Rixson 6000 Series operator surface mounted or does it need concealed prep in the header?
Surface mounted. The 6000 Series operator mounts to the face of the door and frame using its heavy duty backplate as the template, so there's no concealed pocket to rout into the header. That makes it the practical choice for retrofitting automation onto an existing opening where you can't touch the frame. Leave clearance for the double lever arm to swing and for service access.
12) Can one Norton Rixson 6000 Series operator run a pair of doors?
Each 6000 Series operator drives one leaf. On a pair, you order one operator per door and coordinate the two so they sequence correctly. Because the unit is non-handed and mounts either push or pull side, the same model covers both leaves of the pair, with finish being the only selection you match across them.
13) Is the LCN 6440 COMPACT a substitute for the Norton Rixson 6061 operator?
They are not interchangeable on capacity. The LCN 6440 COMPACT automatic operator module is built for 185 lb doors and runs on 24VDC, while the Norton Rixson 6000 Series operator handles doors up to 250 lbs across 36 to 48 inch widths. The 6440 is a compact module intended for lighter openings; on a heavy commercial leaf you would be specifying below the weight the door presents.
14) Which low energy operator should be specified for a pair of doors rather than a single leaf?
The Norton Rixson 6000 Series electrohydraulic operator with double lever arm is set up for double door applications. The DORMA ED900 with push side top jamb mount arm is a single door application, so a pair would need two units and coordination between them. Confirm sequencing hardware for any pair with an astragal.
15) Which low energy operator still controls the door when power is lost?
The Norton Rixson 6000 Series unit operates as a mechanical door closer when power is off, so the opening keeps controlled closing during an outage. That behavior comes from its electrohydraulic design; peers such as the SDC AUTOP Series microprocessor controlled operator and the LCN 9131 and 9142 Benchmark electromechanical operators are built on different drive types, so confirm their power-off behavior against the manufacturer before assuming the same.
16) Which low energy operator has built-in obstacle detection versus onboard cycle data?
These are different feature sets. The Cal-Royal 8600 Series low energy automatic swing door operator is offered with obstacle detection. The Norton Rixson 6000 Series operator carries on-board electronics that collect usage and cycle count data for preventative maintenance scheduling, and is programmed through an onboard LCN screen with a WiFi graphic interface. Decide by which one your facility maintenance program actually uses.
17) Which finish of the Norton Rixson 6000 operator matches dark bronze storefront?
690 Dark Bronze is the match for bronze anodized storefront and aluminum entrances. The 6000 Series operator also comes in 689 Aluminum for clear anodized frames, plus BSP Black Suede Powder and WSP White Suede Powder for painted systems. Those four are the complete finish range, so pick the one that reads against your existing frame color rather than the door.
18) What finish options does the Norton Rixson 6061 offer compared to the Dormakaba operators?
The Norton Rixson 6000 Series operator comes in 689 aluminum, 690 dark bronze, BSP black suede powder, and WSP white suede powder. The Dormakaba ED100LE and ED50LE low energy swing door operators are supplied anodized. If you are matching a storefront run already in dark bronze or a painted white header, the suede powder and 690 options give a direct match without field finishing.
