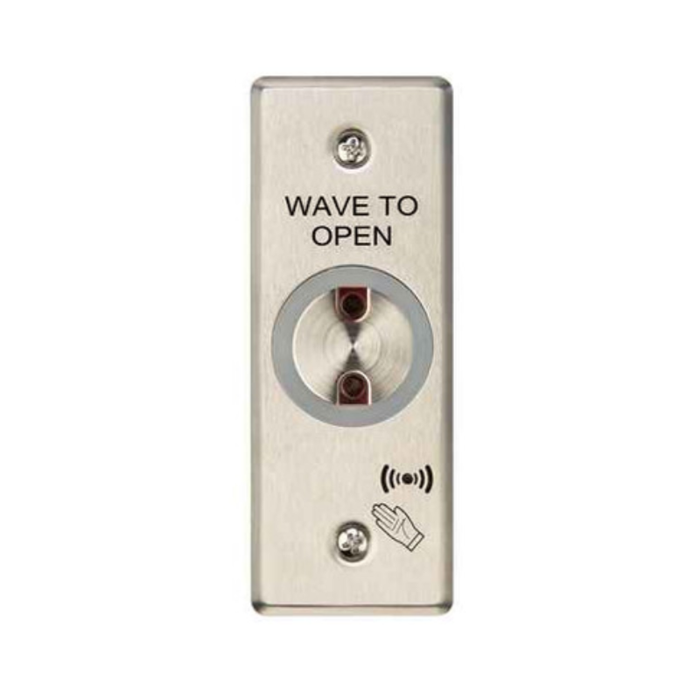

Norton Rixson 704 Infrared Wave Switch with 0-35 Second Variable Relay for Door Operator Activation

Norton Rixson 704 Infrared Wave Switch with 0-35 Second Variable Relay for Door Operator Activation

Touchless Door Activation with Infrared Technology

The Norton Rixson 704 Wave to Open Switch delivers reliable touchless door activation using advanced infrared technology. This narrow gang wall switch features a 0" to 4" detection range with variable relay hold time from 0-35 seconds, making it ideal for automatic door operator systems. The durable stainless steel body construction ensures dependable performance in moist environments while the sensor requires movement for activation to prevent false triggers.

Professional Features & Benefits

• Detection Range: 0" to 4" sensing range provides precise activation control for touchless door operation.
• Variable Relay Control: Adjustable hold time from 0-35 seconds allows customization for different door operator requirements and traffic patterns.
• Movement-Activated Sensor: Requires deliberate hand movement for activation, reducing false triggers from stationary objects or ambient conditions.
• Narrow Gang Design: Compact wall switch configuration fits standard electrical boxes for easy retrofit or new installation applications.
• Moisture-Resistant Construction: Durable stainless steel body withstands humid and moist environments for reliable long-term operation.
• Wide Operator Compatibility: Works with Norton Rixson 5600, 5700, 6000, and 6300 Series door operators for versatile system integration.
• Infrared Technology: Advanced infrared sensing provides consistent activation without physical contact, ideal for high-traffic and hygiene-sensitive applications.

Technical Specifications

• Commercial/Residential: Commercial
• Compatibilty: All Low Energy Operators Except 5800
• Department: Door Hardware
• Electronic: Yes
• Product Category: Electronic Access Controls
• Product Group: Electronic Access Controls
• Product Subgroup: Sensors, Switches, Relays and Timers
• Product Type: Touchless Switches
• Subcategory: Accessories

Installation & Operation

1. Verify electrical requirements match available power supply and confirm current capacity before proceeding with installation.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified wall location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including relay hold time (0-35 seconds) and detection sensitivity per application requirements.
6. Restore power and test all functions including normal activation response, relay timing, and integration with connected door operator systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Automatic Door Systems
• Healthcare Facility Touchless Access
• Educational Institution Entry Points
• Retail Store Accessibility Compliance
• Industrial Facility Personnel Access
• Government Building Security Integration
• Multi-Tenant Residential Common Areas

Why Choose Norton Rixson Quality?

Norton Rixson electronic access control products deliver professional-grade reliability with durable stainless steel construction engineered for demanding commercial applications. The 704 Wave Switch combines advanced infrared technology with precise movement detection and variable timing control for dependable touchless door activation. Engineered for demanding commercial applications where consistent performance and hygiene considerations are essential.
