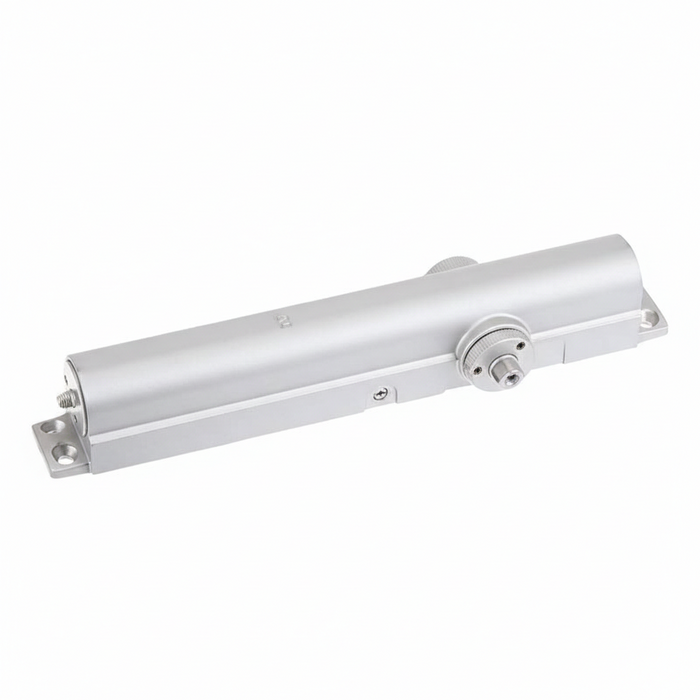

Norton Rixson 8000 Series Heavy-Duty Surface Door Closer Body with Adjustable Force Control

Norton Rixson 8000 Series Heavy-Duty Surface Door Closer Body with Adjustable Force Control

(No reviews yet) Write a Review

Model: 8101LAP-690
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$456.89
$152.33
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Norton Rixson 8000 Series Heavy-Duty Surface Door Closer Body with Adjustable Force Control

Professional Surface-Mounted Door Closer Solution

The Norton Rixson 8000 Series Surface Door Closer Body delivers heavy-duty performance for commercial and institutional applications requiring reliable door control. Engineered to support doors up to 300 lb (136 kg) and widths up to 4'0" (1219 mm), this surface-mounted closer features adjustable closing force, backcheck, and speed controls for precise door operation. Built with high-strength, corrosion-resistant metal components and certified to ANSI/BHMA A156.4 Grade 1 standards, this closer ensures consistent performance in high-traffic environments.

Professional Features & Benefits

  • Heavy-Duty Door Capacity: Supports doors up to 300 lb (136 kg) and widths up to 4'0" (1219 mm) for versatile commercial applications.
  • Adjustable Force Control: Customizable closing speed, force, and backcheck settings provide precise control over door movement and accessibility compliance.
  • Grade 1 Certified Performance: ANSI/BHMA A156.4 Grade 1 certification ensures superior durability and reliability for demanding commercial environments.
  • Corrosion-Resistant Construction: High-strength, corrosion-resistant metal components deliver long-lasting performance with minimal maintenance requirements.
  • Surface-Mounted Design: Straightforward installation process suitable for both new construction and retrofit applications without door modification.
  • Hold Open Feature: Integrated hold open capability provides operational flexibility for high-traffic applications.
  • Architectural Finish Options: Available in 626 (Satin Chrome), 630 (Satin Stainless), 613 (Oil-Rubbed Bronze), and other finishes to complement existing hardware.
  • 30 Year Limited Warranty: Comprehensive warranty coverage provides long-term protection and confidence in product reliability.

Technical Specifications

  • ANSI/BHMA: ANSI/BHMA A156.4, Grade 1
  • Commercial/Residential: Commercial
  • Cover Type: Plastic/Metal
  • Department: Door Hardware
  • Door Weight: 250 lbs.
  • Duty Level: Heavy Duty
  • Grade: Grade 1
  • Hold Open Feature: Yes
  • Product Category: Door Controls
  • Product Group: Door Controls
  • Product Subgroup: Door Closers - Surface Mounted
  • Product Type: Surface Mounted Door Closers
  • Series: 9500 Series
  • Spring Type: Adjustable Size
  • Subcategory: Surface Closers
  • Traffic Rating: High Traffic
  • Warranty: 30 Year Limited

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Norton Rixson Quality?

Norton Rixson 8000 Series door closers deliver professional-grade reliability with high-strength, corrosion-resistant construction certified to ANSI/BHMA A156.4 Grade 1 standards. The comprehensive 30 Year Limited Warranty demonstrates the manufacturer's confidence in long-term performance. Engineered for demanding commercial applications where dependable door control and minimal maintenance are essential.

Manufacturer Resources

Product Specs

Series:
9500 Series
Duty Level:
Heavy Duty
Spring Type:
Adjustable Size
Grade:
Grade 1
Traffic Rating:
High Traffic
Warranty:
30 Year Limited
ANSI/BHMA:
ANSI/BHMA A156.4, Grade 1
Product Group:
Door Controls
Product Subgroup:
Door Closers - Surface Mounted
Product Type:
Surface Mounted Door Closers
Subcategory:
Surface Closers
Door Weight:
250 lbs.
Commercial/Residential:
Commercial
Cover Type:
Plastic/Metal
Hold Open Feature:
Yes
Product Category:
Door Controls
Department:
Door Hardware

Norton Rixson 8101LAP-690 – Frequently Asked Questions

1) Does the Norton Rixson 8000 Series surface closer come with the arm and mounting brackets, or is it the closer body only?
What ships is the closer body. The product is the 8000 Series surface door closer body with adjustable force control, so the arm, brackets and any drop plate needed for your mounting condition are ordered separately. Plan that into the order before the crew is on site, because a body with no arm cannot be hung. If you would rather buy a closer that arrives with the arm packed in, tri-pack closers like the Arrow DCN325 or the Accentra 2701 include regular and parallel arm hardware in one carton.
2) Is the Norton Rixson 8000 Series closer heavy enough for a school or hospital entrance that gets constant use?
That is the traffic it is built for. The 8000 Series surface closer is a heavy duty, high traffic commercial closer certified to ANSI/BHMA A156.4 Grade 1, which is the top grade in the closer standard and the one specified for institutional openings. Closing speed, closing force and backcheck are all adjustable, so you can tune the sweep and cushion the door against a wall stop on an opening that gets pushed hard all day.
3) Can I set the spring size on the Norton Rixson 8000 closer, or do I have to order a fixed size per door width?
Spring power is adjustable on the 8000 Series body, so one part number covers a range of door widths instead of forcing you to order a separate fixed size for every opening. For a property manager standardizing a building, that is the practical benefit: stock one closer, dial the power up on the exterior doors and back down on the lighter interior ones to keep opening force reasonable.
4) Does the Norton Rixson 8000 Series door closer hold the door open?
Hold open is built into the 8000 Series closer, so the door can be parked open for moving furniture, deliveries or a cleaning crew without a wedge. Worth knowing where you are ordering: hold open should not be used on a fire rated opening unless the hold open is released by the fire alarm. If you specifically want a non-hold-open closer for a rated corridor door, the Sargent 1431 and the Design Hardware 416 Series are heavy duty closers supplied with non-hold-open arms.
5) The 8000 Series is more closer than a light-traffic interior office door needs. What is a lighter option?
The BEST SL6000 Series is a light duty Grade 1 surface mounted closer with adjustable spring sizes, and the LCN 1250 Series is a light duty closer in sizes 1 through 5 with all-weather fluid and ADA compliance. The Arrow DC314 is also a light duty Grade 1 surface closer. Each drops the duty level from the heavy duty, high traffic class the Norton Rixson 8000 Series is built for while keeping surface mounting.
6) I need a closer that holds the door open. Which models come with a hold open arm?
The Norton Rixson 8000 Series includes a hold open feature. Among other surface closers, the Accentra 51 Series ships with a tri-packed hold open arm in sizes 1 through 6, and the Orca Hardware BHDC1958HO/PA is a hold open door closer with a parallel bracket for 1-3/4 inch doors. The Stanley Security A45-501HL uses a long hold open arm in a top jamb mounting.
7) I need the door to stop free-swinging but a hold open arm is not allowed on a fire door. What closer should I use instead?
Look to a non-hold open arm closer. The Design Hardware 416 Series and 116 Series are heavy duty closers supplied with a tri-packed non-hold open arm, and the Accentra 2701 Series carries a tri-packed non-hold open arm with adjustable spring sizes 1 through 6. The Dorma 8916-JT is a heavy duty Grade 1 closer with a flat non-hold open arm. The Norton Rixson 8000 Series, by contrast, includes a hold open feature.
8) The 8000 Series arrives as a body only. What comes with a cover included?
The Norton Rixson 8000 Series body uses a plastic or metal cover type. If you want the cover in the box, the Dexter DCH1000 Series is a Grade 1 tri mount surface closer supplied with a full cover, and the Design Hardware 316 Series is a medium to heavy duty closer listed with cover. The Arrow DCN314 and DCN325 go the other way, both supplied less cover.
9) The opening will not take a projecting arm. What is an alternative to the 8000 Series surface closer?
A track arm closer keeps the hardware tight to the door. The Corbin Russwin DC5230 Series is a Grade 1 surface closer with a slide track arm standard in a pull side mounting for 1-3/4 inch doors, and the Dorma 8916-JT is a heavy duty Grade 1 closer using a jamb track with frame face mounting on the pull side, adjustable size 1 through 6. Both are surface mounted like the Norton Rixson 8000 Series but change how the arm crosses the opening.
10) I need the door to pause open so a cart or gurney can pass. Does the 8000 Series do that, or do I need a different closer?
Delayed action is a separate function from hold open. The Orca Hardware BHDC1958DA/PA and BHDC2011DA/PA are delayed action closers with a regular arm and parallel bracket for 1-3/4 inch doors, both supplied as tri-packed non-hold open arm. The Norton Rixson 8000 Series offers a hold open feature and adjustable closing speed, force, and backcheck controls, which is a different behavior from a timed delayed close.
11) My specification calls for a barrier free or ADA closer. Which models are listed that way?
The Cal-Royal 500S is a Grade 1 barrier free closer with adjustable back-check, and the Cal-Royal N900PBF is a Grade 1 hydraulic barrier free surface closer. On the ADA side, the Calibre CA4001 is a Grade 1 hydraulic closer with adjustable spring tension for ADA, the Calibre CA8001P is a parallel arm size 1 ADA closer, and the Imperial USA TC4300 is a Grade 1 heavy duty size 1 through 6 ADA closer. The Norton Rixson 8000 Series provides adjustable force and speed control for accessibility compliance.
12) Can I put a Grade 2 closer on this opening instead of the Grade 1 8000 Series?
The Cal-Royal 400 Series is a Grade 2 commercial hydraulic door closer, one grade step off the ANSI/BHMA A156.4 Grade 1 certification the Norton Rixson 8000 Series carries. The Falcon SC91A is a Grade 3 light duty cast aluminum surface closer. If your specification or facility code calls out Grade 1, stay with a Grade 1 closer such as the Falcon SC71A or the BEST HD8000, both heavy duty Grade 1.
13) Is a Stanley 327 pivot a substitute for the 8000 Series closer?
No. The Stanley Security 327 is a heavy wardrobe pivot for 1-3/8 inch or 1-3/4 inch doors up to 150 lbs, and the Stanley 341 is a wardrobe pivot for flush recessed or overlay doors from 1-1/8 to 1-3/8 inch. Pivots hang and swing a door; they do not control its closing. The Norton Rixson 8000 Series is a surface mounted door closer with adjustable closing speed, force, and backcheck. The Arrow DCN500DP parallel drop plate is likewise a mounting plate for the DCN500, not a closer.
14) Do I need a heavy duty closer like the Norton Rixson 8000, or will a lighter Grade 1 closer do the job?
Match the closer to the opening. The 8000 Series is a heavy duty Grade 1 closer, which is what you want on exterior entrances, stairwell doors and anything wide or wind-loaded. For interior office and tenant doors that see ordinary use, a lighter Grade 1 closer such as the Falcon SC81A (medium duty) or the BEST SL6000 (light duty) is the usual pick. If the opening is punished harder than normal, the BEST EHD9000 is an extra heavy duty Grade 1 alternative.
15) Will a surface mounted closer work on an existing door, or do I have to cut the door for a concealed closer?
No door machining is required. The 8000 Series mounts to the face of the door and the frame, which is why it suits retrofit work as well as new construction: you drill and tap for the mounting screws and the arm, nothing is routed into the door or the header. A concealed closer is the choice when the customer will not accept visible hardware, and that one does require a prepped door or frame.
16) Can I use the Norton Rixson 8000 closer to replace a Corbin Russwin or LCN closer on the same door?
A surface closer swap is generally a matter of the mounting condition and the hole pattern, not the brand, and the two are rarely identical, so budget for a drop plate or new tapping when you cross brands. If you want the closest like-for-like heavy duty Grade 1 replacements from other lines, the Sargent 1431 Powerglide, the Falcon SC71A and the BEST HD8000 are all heavy duty Grade 1 surface closers. For a straight Corbin Russwin swap, the DC8200 Series is a Grade 1 surface closer for 1-3/4 inch doors.
17) What is between light duty and the 8000 Series for a medium-traffic commercial door?
The BEST HD7000 Series is a medium duty Grade 1 surface closer with adjustable spring power and backcheck control, the same backcheck adjustment the Norton Rixson 8000 Series provides. The Sargent 1131 and Sargent 1331 are both medium duty Grade 1 adjustable surface closers, the 1331 on a universal aluminum body. The Falcon SC81A is a medium duty Grade 1 cast aluminum surface closer.
18) I have not decided regular, parallel, or top jamb mounting yet. Which closers cover all three?
Tri-mount and tri-pack closers ship prepared for more than one mounting position. The Dexter DCH4000, DCL2000 and DCM1000 Series are Grade 1 surface closers listed as tri mount for regular, parallel, or top jamb mounting. The Arrow DCN325 is a Grade 1 surface closer with a regular and parallel arm tri-pack and adjustable spring size 1 through 6, and the Calibre CA9901 is a Grade 1 tri-pack arm closer in size 2 through 5.
19) Which surface closers are confirmed for a 1-3/4 inch door like the 8000 Series openings?
The Corbin Russwin DC3200, DC6200 and DC8200 Series are all Grade 1 surface closers listed for a 1-3/4 inch door thickness, the DC6200 and DC8200 using a double lever regular arm in a pull side mounting and the DC3200 a regular arm. The Orca Hardware BHDC1958RA/PA is also listed at 1-3/4 inch, with a regular arm and parallel bracket.
20) I am standardizing closers across a building and need one model in several duty levels. Which families offer that?
Falcon covers the range within one line: the SC71A is heavy duty Grade 1, the SC81A medium duty Grade 1, the SC61A light to medium duty Grade 1, and the SC91A light duty Grade 3. BEST does the same with the EHD9000 extra heavy-duty, the HD8000 heavy duty, the HD7000 medium duty and the SL6000 light duty, all Grade 1. The Norton Rixson 8000 Series covers the heavy duty, high traffic end with an adjustable size spring.
21) Is the Norton Rixson 8000 closer body suitable for an exterior door exposed to weather?
It is built for it. The closer uses high-strength, corrosion-resistant metal components, and the cover is plastic or metal depending on how it is ordered. That construction plus heavy duty spring power is the combination for entrance doors. On an exterior opening set the backcheck so the door cannot be blown back into the wall.
22) The 8000 Series body comes in aluminum and dark bronze. What closer options exist if I need a painted or powder coat finish?
The Norton Rixson 8000 Series body is offered in 689 aluminum and 690 dark bronze. For a factory painted body, the DORMA 7303 Series is a medium duty Grade 1 surface closer in a painted finish and the Dormakaba 7414 in size 1 through 4 is likewise medium duty Grade 1 painted. The LCN 1460T is a heavy duty Grade 1 closer in a powder coat finish.
