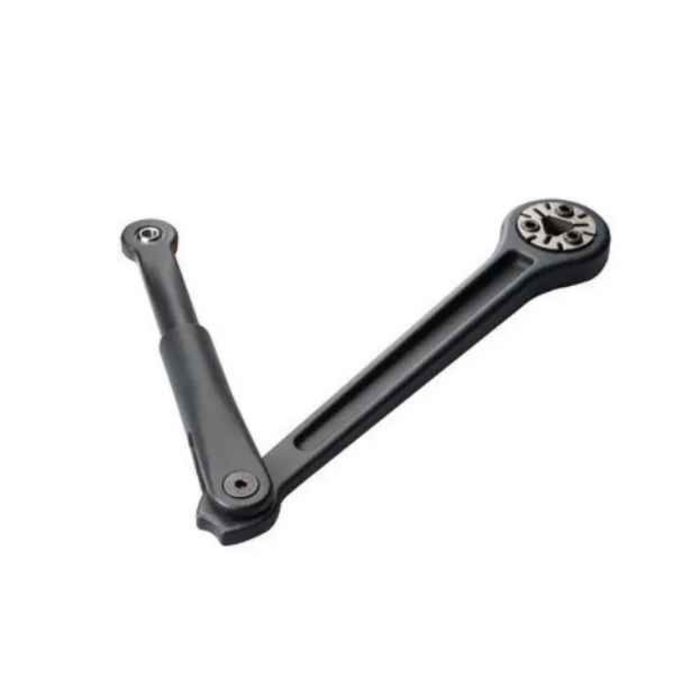

Norton Rixson ADAEZ Door Arm Assembly for Low Energy Operators

Norton Rixson ADAEZ Door Arm Assembly for Low Energy Operators

(No reviews yet) Write a Review

Model: ADA1001

In Stock (leaves warehouse same day if ordered before 3pm ET)

$339.48
$282.43
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Norton Rixson ADAEZ Door Arm Assembly for Low Energy Operators

Professional ADA-Compliant Door Operator Accessory

The Norton Rixson ADAEZ Door Arm Assembly provides essential ADA compliance functionality for commercial automatic door systems. This electronic access control component is engineered for compatibility with all low energy operators except the 5800 series, delivering reliable operation in commercial applications where accessibility compliance is required.

Professional Features & Benefits

  • Universal Low Energy Compatibility: Works with all low energy operators except 5800 series for versatile installation options across multiple door operator models.
  • ADA Compliance Support: Specifically designed to help meet Americans with Disabilities Act requirements for automatic door operation.
  • Commercial-Grade Construction: Built for demanding commercial applications with reliable electronic components for consistent performance.
  • Electronic Integration: Seamlessly integrates with existing low energy door operator systems for enhanced accessibility functionality.
  • Professional Installation: Designed for straightforward integration with compatible door operator systems in commercial environments.

Technical Specifications

  • Commercial/Residential: Commercial
  • Compatibilty: All Low Energy Operators Except 5800
  • Department: Door Hardware
  • Electronic: Yes
  • Product Category: Electronic Access Controls
  • Product Group: Electronic Access Controls
  • Product Subgroup: Sensors, Switches, Relays and Timers
  • Product Type: Push Plates
  • Subcategory: Accessories

Installation & Operation

  1. Verify compatibility with existing low energy door operator system. Confirm the operator is not a 5800 series model before proceeding.
  2. Disconnect power supply to the door operator system before beginning installation. Follow all applicable electrical codes and safety procedures.
  3. Mount the assembly in the specified location ensuring adequate clearance for proper arm movement and future service requirements.
  4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
  5. Configure operational settings for ADA compliance requirements per application specifications.
  6. Restore power and test all functions including normal operation, accessibility activation, and integration with the door operator system.
  7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

  • Commercial Building Accessibility Systems
  • Healthcare Facility Automatic Doors
  • Educational Institution ADA Compliance
  • Retail Establishment Entry Systems
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties
  • Industrial Facility Access Points

Why Choose Norton Rixson Quality?

Norton Rixson ADAEZ Door Arm Assembly delivers professional-grade reliability with electronic components engineered for commercial automatic door applications. Compatible with all low energy operators except 5800 series, this assembly provides the flexibility needed for diverse installation requirements. Designed for demanding commercial environments where dependable ADA compliance functionality is essential.

Manufacturer Resources

Product Specs

Product Group:
Electronic Access Controls
Product Subgroup:
Sensors, Switches, Relays and Timers
Product Type:
Push Plates
Subcategory:
Accessories
Commercial/Residential:
Commercial
Electronic:
Yes
Compatibility:
All Low Energy Operators Except 5800
Product Category:
Electronic Access Controls
Department:
Door Hardware

Norton Rixson ADA1001 – Frequently Asked Questions

1) Will the Norton Rixson ADAEZ door arm assembly work with my existing low energy operator?
The ADAEZ door arm assembly fits all low energy operators except the 5800 series. If the operator on the door is a 5800, this arm is the wrong part. Check the model tag on the operator body before ordering, since that single exception is the only compatibility limit stated for the assembly.
2) Is the ADAEZ door arm assembly a complete door operator, or just a replacement arm?
It is an accessory, not an operator. The ADAEZ door arm assembly is the arm linkage that connects a low energy operator to the door, so you still need the operator itself, its power supply and any actuators. Order it as a service replacement or as the arm for an operator you already have on the opening.
3) I need a wall actuator to trigger my automatic door, not an arm. What should I be looking at?
The ADAEZ door arm assembly is the mechanical linkage on the operator, so it will not activate anything on its own. For the push actuator side, look at the SDC 480 Series push plate actuators in 18 gauge stainless steel, the Camden CM-40 4-1/2 inch round or CM-60 6 inch round all-active switches, or the Locknetics PPH-100-PL large round push plate with box. For a taller ADA touch surface, the SDC 480AA Series is a 36 x 6 inch touch panel column, and for exterior approach the SDC BP Series square bollard posts come in a 42 inch surface mount and a 54 inch in-ground version.
4) Can an SDC 480 push plate actuator be used in place of the Norton Rixson ADAEZ door arm assembly?
No - they do different jobs on the same opening. The ADAEZ ADA1001 is the door arm assembly that links a Norton Rixson low energy operator to the door and swings it, and it fits all low energy operators except the 5800 series. The SDC 480 Series is a push plate actuator built with 18 gauge stainless steel construction - it is the wall switch a user presses to signal the operator. An automatic opening typically needs both: the arm on the operator and an actuator to trigger it.
5) What should I pair with a Norton Rixson ADAEZ arm assembly to give users a way to activate the door?
The ADA1001 arm assembly is the mechanical link between the low energy operator and the door; activation comes from a separate actuator. Common choices are the Camden CM-40 Series all-active switch in a 4-1/2 inch round format, the larger Camden CM-60 Series 6 inch round switch available wired or with a kinetic wireless transmitter, or the Locknetics PPH-100-PL large round push plate supplied with a box. For an exterior approach with no adjacent wall, SDC BP Series square bollard posts are offered in a 6 inch by 6 inch profile as BPS6 surface mount at 42 inches and BPG6 in-ground at 54 inches.
6) I need an ADA actuator with a large touch target for a barrier-free entrance - is the ADAEZ ADA1001 the right part?
No. The ADA1001 is the operator arm assembly, not a user-facing actuator. For a large touch target, the SDC 480AA Series is a 36 inch by 6 inch Ingress-R.E.X touch panel column intended for ADA compliant access control, and the Alarm Controls JP Series is a jumbo push plate with pneumatic time delay. The Camden CM-60 gives a 6 inch round all-active surface where a full column is not wanted.
7) Does installing the ADAEZ arm assembly require running power or wiring?
There is a wiring step. Norton Rixson calls for cutting power to the operator before installing, routing and landing the wiring to the manufacturer's diagrams with appropriate gauge and connectors, then configuring the operational settings and testing normal operation plus accessibility activation before sign-off. Plan on a mounting location with clearance for full arm travel and later service access.
8) My opening is a vestibule with two automatic doors - what changes besides the ADAEZ arm assembly?
Each leaf still gets its own arm assembly; the ADA1001 works with all low energy operators except the 5800 series, so it can serve both leaves if the operators qualify. The activation side is what differs: the SDC 480V Series is a vestibule push plate actuator with dual switch activation, built for the interlocked two-door arrangement, where the standard SDC 480 Series is a single push plate actuator.
9) For a high-abuse entrance, is there a tougher option than a standard round push plate alongside the ADAEZ operator arm?
Yes on the actuator side. The Alarm Controls PD Series covers PD, PN, PS and PT vandal resistant push plates with pneumatic time delay, and the SDC 480 Series uses 18 gauge stainless steel construction. Both are user-contact devices; the ADA1001 arm assembly itself is a commercial-grade component mounted at the operator, out of reach of direct abuse.
10) If I cannot run wire to the actuator location, what works with a low energy operator using the ADAEZ arm?
The Camden CM-60 Series 6 inch round all-active switch is offered wired or with a kinetic wireless transmitter, which removes the wire pull to the switch location. The ADA1001 arm assembly is unaffected by that choice - it is the mechanical arm at the operator and works with all low energy operators except the 5800 series regardless of how the actuator signals.
11) Is the Norton Rixson ADA1001 arm assembly rated for commercial use or is it a residential part?
Commercial. The ADAEZ door arm assembly is classified as a commercial door hardware component and is intended for automatic door openings in buildings such as healthcare facilities, schools, retail entries, government buildings and multi-tenant residential properties.
