Norton Rixson Model 355 Double-Acting Interior Gate Closer - 75 lb Capacity Commercial-Grade Specialty Closer

Norton Rixson Model 355 Double-Acting Interior Gate Closer - 75 lb Capacity Commercial-Grade Specialty Closer

(No reviews yet) Write a Review

Model: 355 691
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,099.00
$1,429.76
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Norton Rixson Model 355 Double-Acting Interior Gate Closer - 75 lb Capacity Commercial-Grade Specialty Closer

Heavy-Duty Double-Acting Gate Closer for Commercial Interior Applications

The Norton Rixson Model 355 Interior Gate Specialty Closer delivers reliable controlled closing for interior gates that swing in both directions. This commercial-grade double-acting closer supports gates up to 75 lbs with door widths from 2'2" to 3'0" wide and 1-3/4" thickness. The non-handed design provides installation flexibility for left or right swing applications, while the flange-mounted configuration ensures secure attachment under the gate.

Professional Features & Benefits

  • Gate Capacity: Supports gates up to 75 lbs with 2'2" to 3'0" width range for versatile commercial applications.
  • Double-Acting Operation: Allows gates to swing in both directions with smooth controlled closing to prevent slamming and flapping.
  • Non-Handed Design: Universal installation supports left or right swing configurations for enhanced installation flexibility.
  • Commercial-Grade Construction: Built for high-traffic environments including offices, warehouses, and public facilities with long-term durability.

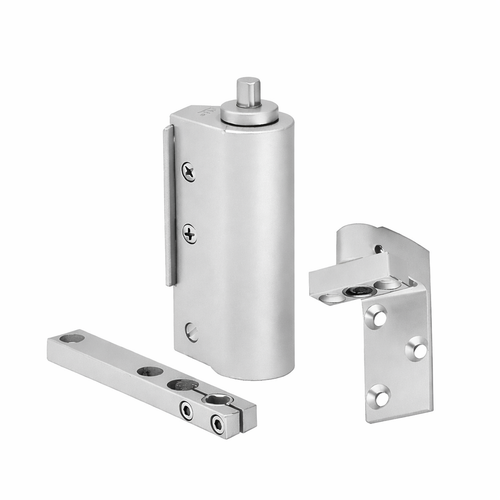

  • Flange-Mounted Configuration: Closer body mounts securely under gate with mortise top pivot for reliable operation.
  • Maximum Opening Angle: 90-degree opening capacity provides full access while maintaining controlled closing action.
  • Manufacturer Warranty: 2 Year Limited warranty for added confidence and protection.
  • ANSI Compliance: ANSI C09053 certification ensures professional-grade performance standards.

Technical Specifications

  • ANSI/BHMA: ANSI C09053
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Door Swing: Double Acting
  • Duty Level: Light Duty
  • Hold Open Feature: No
  • Product Category: Gate Hardware
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Gate Hinges and Closers
  • Product Type: Gate Closers
  • Series: 350 Series
  • Subcategory: Specialty Closers
  • Traffic Rating: Low Traffic
  • Warranty: 2 Year Limited

Installation & Operation

  1. Survey installation location and verify gate construction is suitable for hardware mounting. Confirm material compatibility and structural adequacy.
  2. For outdoor installations, ensure mounting location provides appropriate drainage and minimizes direct exposure to weather extremes where possible.
  3. Mount hardware using appropriate fasteners for the gate material (wood, metal, or composite). Use provided mounting accessories where applicable.
  4. Route any wiring through weatherproof conduit and use appropriate outdoor-rated connections. Seal all penetrations against moisture intrusion.
  5. Adjust alignment and operation for smooth function throughout the full range of gate movement.
  6. Test operation under various conditions and verify weatherproof integrity. Refer to manufacturer documentation for complete installation specifications and maintenance requirements for outdoor applications.

Professional Applications

  • Office Rail Systems and Interior Partitions
  • Lavatory Stall Doors
  • Commercial Interior Gate Applications
  • Warehouse Interior Access Points
  • Public Facility Interior Gates
  • High-Traffic Commercial Environments
  • Interior Specialty Gate and Partition Systems

Why Choose Norton Rixson Quality?

Norton Rixson Model 355 gate closers deliver professional-grade reliability with commercial-grade construction designed for high-traffic environments. The 2 Year Limited warranty provides added confidence for demanding commercial applications. Engineered for consistent performance in offices, warehouses, and public facilities where dependable controlled closing is essential.

Product Specs

Series:
350 Series
Warranty:
2 Year Limited
Door Swing:
Double Acting
Traffic Rating:
Low Traffic
ANSI/BHMA:
ANSI C09053
Product Type:
Gate Closers
Duty Level:
Light Duty
Product Group:
Door Trim and Accessories
Product Subgroup:
Specialty Closers
Subcategory:
Specialty Closers
Commercial/Residential:
Commercial
Hold Open Feature:
No
Product Category:
Door Controls
Department:
Door Hardware

Norton Rixson 355 691 – Frequently Asked Questions

1) Do I need to order a left hand or right hand version of the Rixson 355 gate closer?
Neither. The 355 is non-handed, so one part number covers left and right swing gates. That is a consequence of it being a double-acting closer: the gate swings through in both directions, so there is no hand to specify. For a property manager standardizing several openings, it means one stock item covers the whole run.
2) What is a double-acting gate closer and when should I use one instead of a regular door closer?
A double-acting closer like the 355 controls a gate that swings both ways and returns it to center from either direction. Use it on cafe-style openings: office rail systems and interior partitions, lavatory stall doors, warehouse interior access points. A conventional overhead door closer only handles a leaf that swings one way against a stop, so it will not work on a free-swinging gate. If the opening is a normal single-direction door, a standard surface closer is the right product, not this.
3) How does the Rixson 355 mount to the gate, and does it need floor prep?
The closer body is flange-mounted underneath the gate leaf, with a mortise top pivot carrying the head. So no floor cement case or concrete cutting is involved, but the top of the gate does need to be mortised for the pivot and the gate bottom needs enough solid material to take the flange fasteners. Verify the leaf construction will hold the mounting before you commit, especially on hollow or composite partition stock.
4) Can the Norton Rixson 355 be used on an exterior gate?
No. The 355 is an interior gate closer. For a yard gate, driveway gate, or any leaf exposed to weather, you want gate hardware built for outdoor service instead. Locinox makes surface-mounted swing gate hardware for that duty, such as the LUKY surface mounted swing gate lock, though that is a lock rather than a closer.
5) Is the Rixson 355 rated for a busy lobby or high-traffic entrance?
The 355 carries a Light Duty rating with a Low Traffic rating. It suits interior partition gates, counter gates, and stall doors where the leaf cycles occasionally. For a main entrance or a heavily cycled opening, specify a heavier closer instead. It is a commercial-grade product, but commercial grade and high cycle count are not the same thing.
6) Is a Locinox LUKY surface mounted gate lock an alternative to the Norton Rixson 355 gate closer?
No - they do different jobs on the same gate. The Norton Rixson Model 355 is a double-acting closer that controls the gate's return and lets it swing both directions, mounted under the gate with a mortise top pivot. The Locinox LOCLUKY0J5LZCZB9005 LUKY is a surface mounted swing gate lock with a handle, supplied less mortise cylinder, and it secures the gate closed rather than closing it. On an interior gate that needs both controlled closing and latching, the 355 and a lock are specified together, not one instead of the other.
7) How far does the Rixson 355 gate closer let the gate open?
90 degrees is the maximum opening, in each direction, since it is double acting. That is worth checking against your layout: if the gate needs to lay back flat against a wall or swing past 90 to clear a cart path, this closer will stop it short.
8) Does the Rixson 355 hold the gate open in a propped position?
No hold-open on the 355. It closes the gate from either direction every time, with no detent or stop to park it open. If you need the gate to stay open for deliveries or a loading window, this is the wrong closer for that opening.
9) What ANSI number does the Norton Rixson 355 gate closer carry for a spec submittal?
ANSI C09053. That is the number to put on the hardware schedule for the 355. It is a commercial-rated specialty closer, light duty, low traffic classification.
10) Is the Norton Rixson 355 a lock as well as a closer?
It is a closer only. The 355 controls the swing and returns the gate to center, nothing more. If the opening also needs to be secured, that is separate hardware: Locinox makes swing gate locking products such as the LUKY surface mounted swing gate lock, and security keepers like the SHKL-9005-QF2K with Quick-Fix mounting.
11) I need to add security to an existing gate, not control its swing - what should I be looking at instead of the 355?
Look at the Locinox line. The SHIELD-SH-9005 is an anti-theft protection plate for Standard SA and Modulec SA keeps, and the SHKL-9005-QF2K is a security keeper with Quick-Fix mounting - both address protecting and receiving the gate at the lock side. The Norton Rixson Model 355 is a commercial double-acting closer for interior gates and adds no security function; it has no hold open feature and is rated light duty for low traffic. If the gate already closes the way you want and the issue is the lock point, the closer is not the part to order.
12) What finishes does the Norton Rixson 355 gate closer come in?
Seven: 689 Aluminum, 690 Dark Bronze, 691 Light Bronze, 693 Flat Black, 696 Satin Brass Painted, plus BSP Black Suede Powder and WSP White Suede Powder. If you are matching a run of existing openings, 689 and 690 are the usual pairings with clear and dark anodized aluminum storefront, and the two suede powder coats give a flat black or flat white where painted trim is the reference rather than metal.
