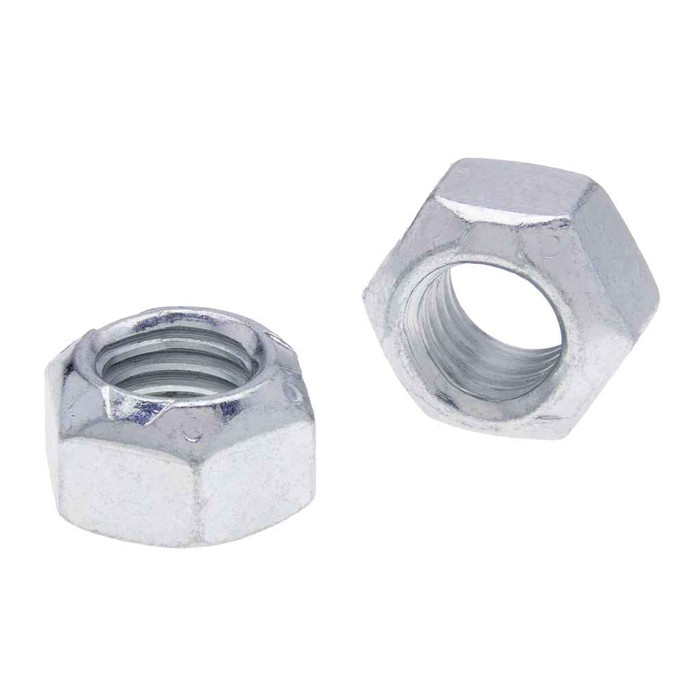

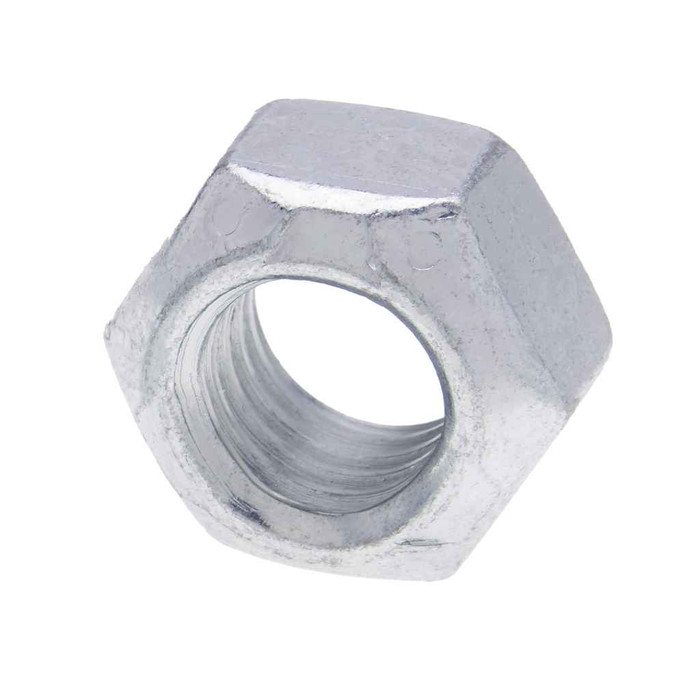

Nut 3/8-16 GC Hx Top Locknut St-YZ (Jar 100)
Manufacturer Resources
Product Specs
- Division:
- Electrical H1
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
- Product Subgroup:
- Nuts
Metallics JNCHTL38 – Frequently Asked Questions
1) What thread size is the Metallics JNCHTL38 locknut?
It's a 3/8-16 thread, so it mates with 3/8 inch coarse-thread rod, bolts, or hanger rod cut to 16 threads per inch. Pair it with 3/8-16 threaded rod used for conduit trapeze hangers, strut, and box supports. If your rod is 3/8-24 fine thread, this nut will not run on it.
2) Can I use the Metallics JNCHTL38 locknut on threaded rod for conduit and strut hangers?
Yes, as long as the rod is 3/8-16. It's an electrical fastener, catalogued with Metallics' electrical nuts, and 3/8-16 rod is the common size for conduit trapeze hangers, strut fittings, and box supports. The deformed top grips the thread so the nut resists loosening under vibration without needing a lock washer.
3) Is the Metallics JNCHTL38 a prevailing-torque locknut or does it use a nylon insert?
It's a top locknut, meaning the top of the hex is deformed to grip the thread mechanically rather than relying on a nylon insert. That makes it reusable within reason and suitable where a nylon ring would be a problem, such as near heat. It's steel with a yellow zinc finish.
4) Will a yellow zinc steel locknut hold up outdoors or in a damp mechanical room?
Yellow zinc plating on steel is a mild corrosion coating meant for dry or sheltered interior work, such as conduit hangers in a mechanical room or above a ceiling. For exterior, wet, or corrosive locations, specify a hot dip galvanized or stainless 3/8-16 locknut instead.
5) What is the Metallics part number I should order for a 3/8-16 hex top locknut by the jar?
Order Metallics JNCHTL38. That number covers the 3/8-16 steel yellow zinc hex top locknut in the 100 count jar, and it's the only configuration that number is built in.
6) How many 3/8-16 locknuts come in a jar of Metallics JNCHTL38?
Each jar holds 100 nuts. The jar pack is handy on a van or a job cart since it reseals, unlike a loose bag.
7) Do I need a flat washer with these locknuts?
A hex top locknut handles the anti-rotation job on its own, so no lock washer is needed. You'll still want a flat washer where the nut bears on strut, channel, sheet metal, or an oversized hole to spread the load. Washers are a separate order.
