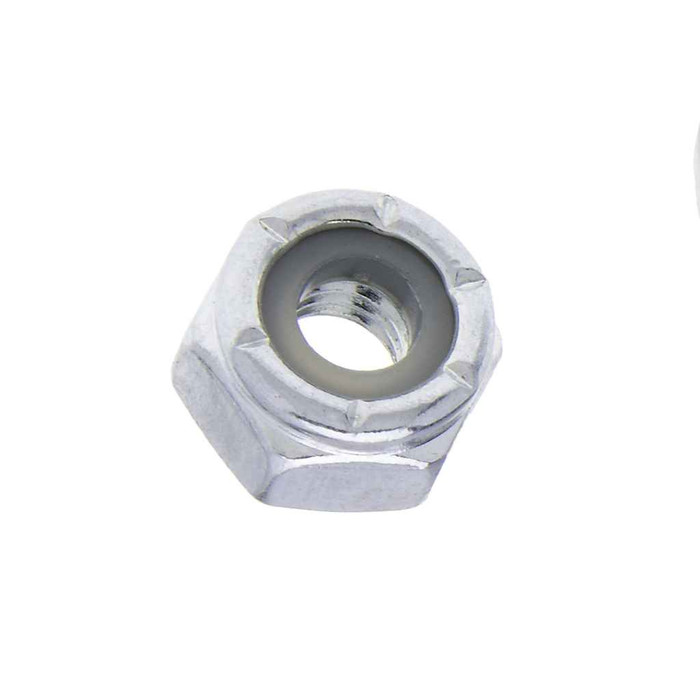

Nuts 10-32 Hx Ny-Ins Locknut St-zn (Jar 100)
Features
- Eliminates the Need For a Lockwasher
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Country Of Origin:
- MUL
- Dimensional Standard:
- ASME B18.16.6
- Division:
- Electrical H1
- Fastener Head Height:
- 0.229 - 0.249 in.
- Fastener Head Width:
- 0.367 - 0.376 in.
- Fastener Height:
- 0.14
- Field Application:
- Areas of High Vibration, Electrical, Plumbing, Heating and Air Conditioning Industries
- Language Code:
- EN
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Nylon_Insrt_Lck_Nut_Steel_Zinc.pdf
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- JR
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 2.15 in
- Product Length:
- 3 in
- Product Weight:
- 0.53 lbs
- Product Width:
- 3 in
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 32
- Thread Standard:
- ANSI/ASME B1.1
- Department:
- Electrical
- Product Subgroup:
- Nuts
- Product Type:
- Hexagonal Nylon Insert Lock Nut
- Type2:
- Hexagonal Nylon Insert Lock Nut
- Series:
- JNYN
- Product Finish:
- Zinc
- Product Details:
- Hexagonal Nylon Insert Lock Nut
- Product Material:
- Steel
Metallics JNYN162 – Frequently Asked Questions
1) Will a Metallics JNYN162 locknut thread onto a 10-32 machine screw or bolt?
Yes. The JNYN162 is a 10-32 hex nylon insert locknut, cut to 32 threads per inch to the ANSI/ASME B1.1 thread standard, so it runs onto any standard 10-32 UNF machine screw or bolt. The nylon ring sits at the top of the nut and grips the male thread as it engages, which is why no lockwasher is needed behind it.
2) Do these Metallics locknuts meet a dimensional spec I can put on a submittal?
They are made to ASME B18.16.6, the dimensional standard for prevailing-torque hex nylon insert lock nuts, with threads to ANSI/ASME B1.1. Those are the two designations to cite on a submittal or spec sheet. Note for public-funded work: the JNYN162 is not Buy American compliant and not ARRA compliant, with country of origin listed as multiple.
3) Are these 10-32 locknuts steel or stainless, and how are they finished?
Steel with a zinc finish. That is a dry indoor-service fastener, fine inside panels, boxes, and conditioned mechanical rooms. For sustained wet, exterior, or corrosive exposure, go to a stainless 10-32 nylon insert locknut rather than zinc-plated steel.
4) How many 10-32 nylon insert locknuts come in a jar, and can I buy fewer?
The JNYN162 ships as a jar of 100, and a jar is the order minimum, so 100 pieces is the smallest quantity. The jar weighs 0.53 lbs. Metallics does make other sizes and quantities in the JNYN series available by request.
5) Can a nylon insert locknut be reused after I take the joint apart?
Treat it as limited-reuse. The locking action comes from a nylon ring that the male thread cuts into on first assembly, so each removal and reinstall takes some of the grip away. On a 100-piece jar of JNYN162 there is little reason to re-run an old one, use a fresh nut on reassembly. These also should not be run up against heat-soaked surfaces, nylon is the limiting element, not the zinc-plated steel body.
