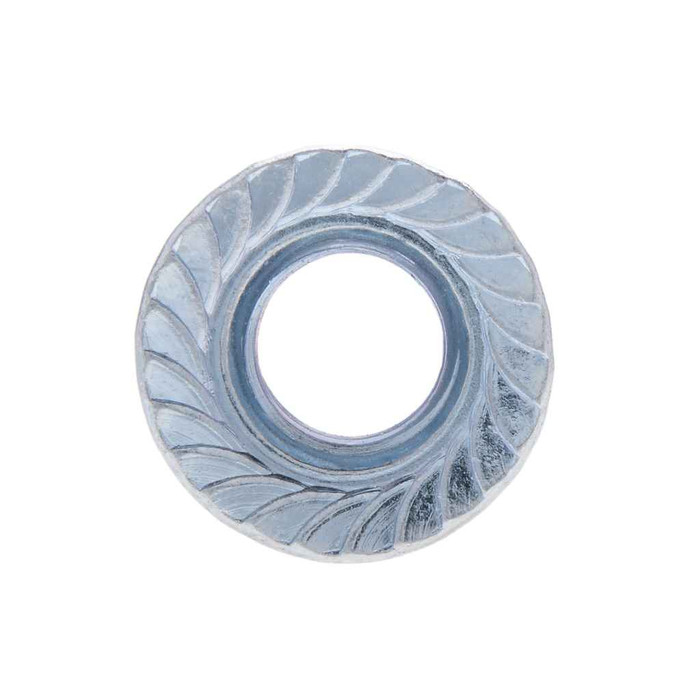

Nuts 1/2-13 Serr Flange Locknut St-zn (Jar 100)
Additional Notes
- Other sizes and quantities available by request
Features
- Requires a greater amount of torque to loosen than to tighten the nut. Will span oversized or poorly aligned holes. Flange provides a more uniform bearing-stress to clamp-force ratio than other low carbon lock nuts. Does not gall screw threads.
- Hex nut with an enlarged circular base flaring out from the bottom of the nut. The bearing surface of the flange has serrations which displace material on the mating surface when the nut is wrenched into place, forming a connection which resists loosening.
Manufacturer Resources
Product Specs
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Country Of Origin:
- MUL
- Dimensional Standard:
- ASME B18.16.4-2008
- Division:
- Electrical H1
- Fastener Head Width:
- 0.736 - 0.750 in.
- Fastener Height:
- 0.437 - 0.458
- Fastener Width:
- 0.840 - 0.866
- Hardness:
- Rockwell HR15N 78-90
- Language Code:
- EN
- Material:
- Steel
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- CT
- Pack Type:
- Jar
- Panel Thickness:
- 0.05 IN
- Product Family:
- Electrical Supplies
- Product Group:
- Fasteners
- Product Series:
- JSFN
- Remarks:
- The catalog UPC differ from the tarnsaction daat spreadsheet UPC
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 13
- Type:
- Hexagonal Serrated Flange Lock Nut
- Washer Od:
- 1.000 - 1.031 in.
- Wrenching Height:
- 0.31
- Department:
- Electrical
- Product Subgroup:
- Nuts
- Product Type:
- Hexagonal Serrated Flange Lock Nut
- Type2:
- Hexagonal Serrated Flange Lock Nut
