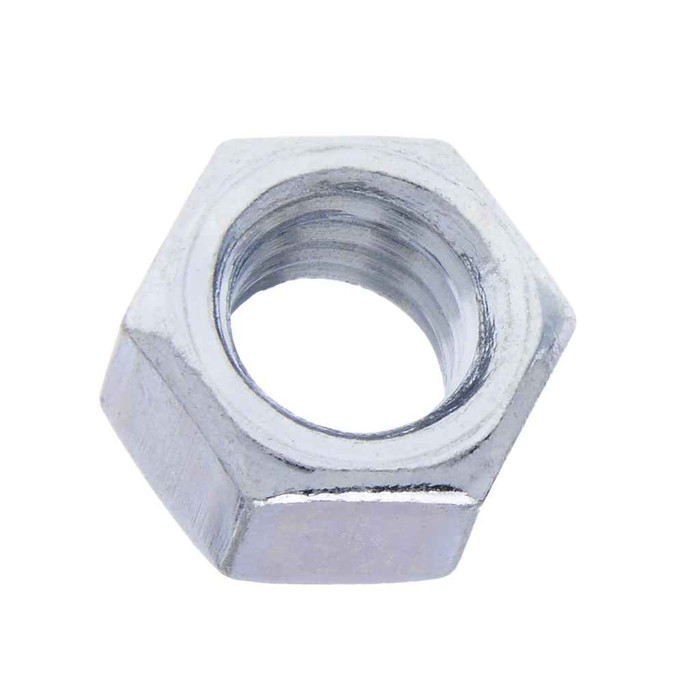

Nuts 1/4-20 G8 Hx Nut St-zn (Jar 100)
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Dimensional Standard:
- ANSI/ASME B182.2
- Division:
- Electrical H1
- Fastener Head Height:
- Jul-32 in.
- Fastener Head Width:
- 0.423 - 0.438 in.
- Fastener Height:
- 0.212 - 0.226
- Fastener Width:
- 0.488 - 0.505
- Field Application:
- Electrical, Plumbing, Heating and Air Conditioning Industries
- Grade:
- 8
- Hardness:
- Rockwell C24-32
- Language Code:
- EN
- Material Standard:
- AISI 1021 - 1045
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Gr_5_and_8_Hardened_Steel_Hex_Nut.pdf
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- JR
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 2.15 in
- Product Length:
- 3 in
- Product Weight:
- 0.74 lbs
- Product Width:
- 3 in
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 20
- Department:
- Electrical
- Product Subgroup:
- Nuts
- Product Type:
- Hexagonal Nut
- Type2:
- Hexagonal Nut
- Series:
- JG8N
- Product Finish:
- Zinc
- Product Details:
- Hexagonal Nut
- Product Material:
- Hardened Steel
Metallics JG8N163 – Frequently Asked Questions
1) What thread size are the Metallics JG8N163 hex nuts, and will they fit a 1/4-20 bolt?
They are 1/4-20 nuts, 20 threads per inch, so they thread onto any standard 1/4-20 UNC bolt, rod, or screw. Dimensions follow ANSI/ASME B182.2, so they interchange with other B182.2 1/4-20 hex nuts already on the job.
2) Is a Grade 8 nut stronger than the Grade 5 nut I normally use, and does it matter which I pick?
Grade 8 is the higher-strength hardened steel nut, tested at Rockwell C24-32 hardness, and it is what you want on a Grade 8 bolt so the nut is not the weak link in the joint. Pairing a Grade 8 nut with a lower-grade bolt gains you nothing; the bolt still governs. For vibration-prone or high-load anchorage, match grades.
3) Are Metallics JG8N163 hex nuts acceptable on a Buy American or ARRA-funded project?
No. These nuts are not Buy American compliant and are not ARRA compliant, with country of origin listed as multiple. On federally funded or domestic-content-restricted work you will need a domestically sourced Grade 8 hex nut instead.
4) Are the Metallics JG8N163 nuts suitable for outdoor or damp mechanical room installs?
They are zinc plated hardened steel, which handles normal indoor and sheltered-exterior service and resists the incidental moisture in a mechanical or boiler room. Zinc plating is not a marine or chemically aggressive coating, so for continuous wet exposure or coastal work step up to stainless or hot-dip galvanized fasteners.
5) How many nuts come in a jar of Metallics JG8N163, and can I buy fewer?
They ship as a jar of 100, and the jar is the minimum order unit. Other sizes and quantities are available by request if 100 pieces of 1/4-20 is not what the job calls for.
6) What trades actually use these zinc Grade 8 hex nuts?
They are stocked for electrical, plumbing, heating and air conditioning work, the everyday 1/4-20 nut for strut and channel assemblies, conduit and pipe hangers, equipment mounting, and panel and enclosure hardware. A jar of 100 on the truck covers most of that without a trip to the counter.
7) What steel are these Grade 8 nuts made from?
AISI 1021 through 1045 carbon steel, hardened and zinc plated. That is the medium-carbon range that lets the nut hold Rockwell C24-32 and carry Grade 8 load without the brittleness of a higher-alloy heat treat.
8) How much does a jar of 100 of the 1/4-20 Grade 8 nuts weigh for shipping or truck stock?
The jar comes in at 0.74 lbs, in a container measuring 3 x 3 x 2.15 inches, so it drops into a van bin or gang box without taking a shelf.
