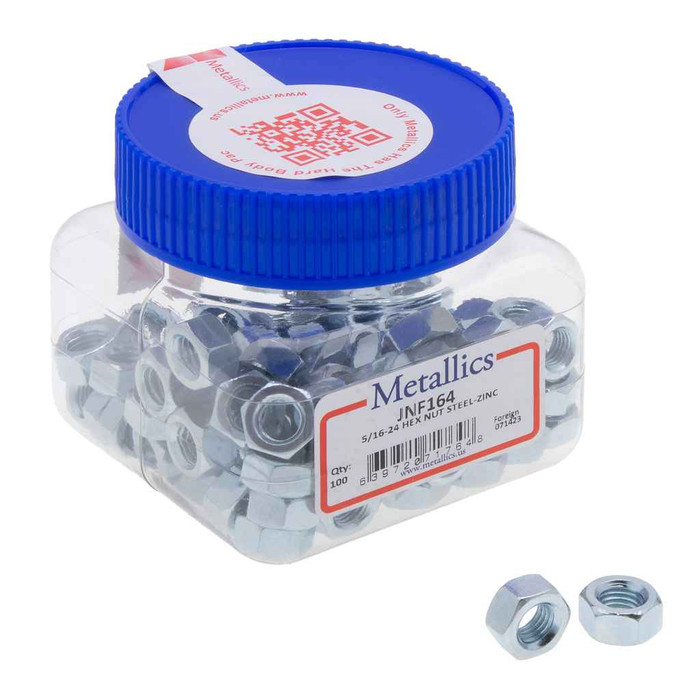

Nuts 5/16-24 Hx Nut FT St-zn (Jar 100)
Additional Notes
- Other sizes and quantities available by request
Features
- The most versatile and widely used nut design. Grade-2 nuts are for use with any low carbon bolt or screw that is not heat treated, with a specified minimum tensile strength of 74,000 psi or less
- Made to American Standard Dimensions
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Division:
- Electrical H1
- Fastener Head Width:
- 0.489 - 0.500 in.
- Fastener Height:
- 0.258 - 0.273
- Fastener Width:
- 0.557 - 0.577
- Field Application:
- Width is Wrench Size
- Grade:
- 2
- Hardness:
- Rockwell B68-C32
- Language Code:
- EN
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Nut_Domestic_Gr_2_Gr_5_Gr_8_Gal_18-8_SS_316_SS.pdf
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- CT
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 2.15 in
- Product Length:
- 3 in
- Product Weight:
- 1.09 lbs
- Product Width:
- 3 in
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 24
- Thread Type:
- UNF
- Department:
- Electrical
- Product Subgroup:
- Nuts
- Product Type:
- Hexagonal Nut
- Type2:
- Hexagonal Nut
- Series:
- JNF
- Product Finish:
- Zinc
- Product Details:
- Hexagonal Nut
- Product Material:
- Steel
Metallics JNF164 – Frequently Asked Questions
1) Will a 5/16-24 hex nut thread onto a 5/16-18 bolt?
No. The Metallics JNF164 is a fine thread nut, 24 threads per inch (UNF), so it will not run onto a 5/16-18 coarse thread bolt. Match it to 5/16-24 UNF studs and screws only. If your fastener is coarse, you need a 5/16-18 UNC nut instead.
2) Is a Grade 2 zinc hex nut strong enough for the bolts I'm using?
Grade 2 nuts suit any low carbon bolt or screw that is not heat treated, with a specified minimum tensile strength of 74,000 psi or less. If you are torquing a Grade 5 or Grade 8 bolt to spec, step up to a matching higher grade nut rather than using this one. Hardness on the JNF164 runs Rockwell B68-C32.
3) What wrench or socket size do I need for the Metallics JNF164 nut?
1/2 inch. The across-flats dimension is 0.489 to 0.500 in., and on this nut the width across flats is the wrench size. The corner-to-corner width runs 0.557 to 0.577 in., which is what matters if you are working in a tight pocket.
4) Can I use these zinc plated nuts outdoors or in a damp location?
The JNF164 is steel with a zinc finish, which is a mild corrosion barrier meant for dry indoor and sheltered use. For wet exterior runs, washdown areas or anywhere near chemicals, go to a hot dip galvanized or stainless hex nut instead. Zinc plating will bloom and rust in standing moisture.
5) Do these nuts meet Buy American or ARRA requirements for a government job?
The JNF164 is flagged compliant for both Buy American and ARRA, with country of origin listed as multiple. For a federally funded spec that demands documented domestic origin on each lot, ask for the mill paperwork on the specific jar you receive.
6) How are these 5/16-24 hex nuts packaged, and is there a minimum order?
They ship in a jar of 100 pieces, and 100 count is the order minimum, so it is a one-jar buy at a time. Total jar weight is 1.09 lbs. Handy for a service van or a shop drawer rather than a bulk box on a production line.
7) Are these nuts dimensionally standard so they'll match the washers and sockets I already stock?
Yes. These hex nuts are made to American Standard dimensions, so a standard 5/16 flat washer and a 1/2 inch socket drop right on. Across flats measures 0.489 to 0.500 in.
8) Is this a full thread nut or a jam nut?
It is a full thread 5/16-24 hex nut, not a thin jam nut, with a height of 0.258 to 0.273 inches. If you are locking two nuts against each other on a stud, this is the primary nut and you would add a thinner jam nut above it.
