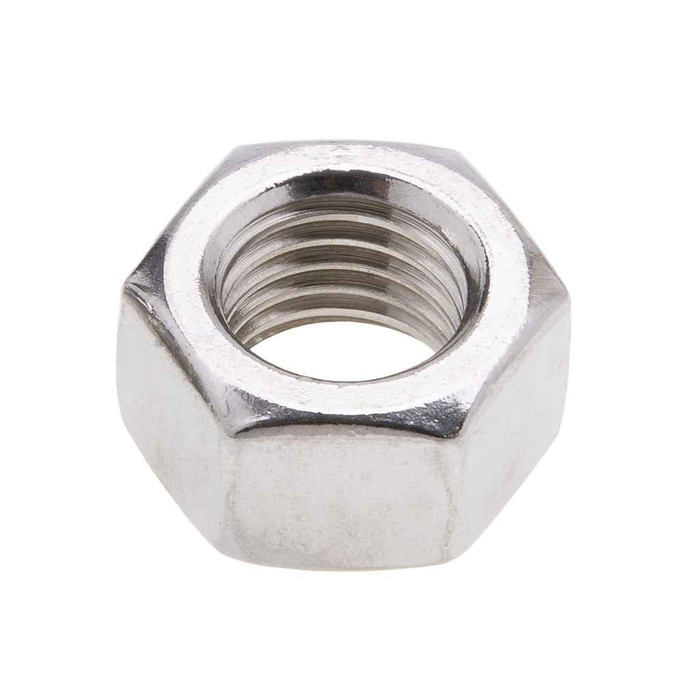

Nuts 6-32 Hx Nut SS (Jar 100)
Features
- Designed for use with stainless steel bolts and screws with a specified minimum tensile strength equal to or less than the specified proof stress of the mating nut. Both type of stainless are corrosion resistant with 316 stainless having greater such resistance as well as superior strength at raised temperatures.
- Six-sided internally threaded fastener whose thickness is 0.875 D is the nominal nut size and 1.5 D is their width across the flats, made from austenitic alloys.
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Division:
- Electrical H1
- Fastener Head Width:
- 0.302 - 0.312 in.
- Fastener Height:
- 0.102 - 0.114
- Fastener Width:
- 0.344 - 0.361
- Hardness:
- Rockwell B95-C32
- Language Code:
- EN
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Nut_Domestic_Gr_2_Gr_5_Gr_8_Gal_18-8_SS_316_SS.pdf
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- CT
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 2.15 in
- Product Length:
- 3 in
- Product Weight:
- 0.26 lbs
- Product Width:
- 3 in
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 32
- Thread Standard:
- ANSI/ASME B18.2.2
- Department:
- Electrical
- Product Subgroup:
- Nuts
- Product Type:
- Hexagonal Nut
- Type2:
- Hexagonal Nut
- Series:
- JSN
- Product Details:
- Hexagonal Nut
- Product Material:
- 316 Stainless Steel
Metallics JSN103316SS – Frequently Asked Questions
1) Is this a 316 stainless nut or 18-8, and does it matter outdoors or near salt water?
The JSN103316SS is 316 stainless steel, not 18-8. Both grades resist corrosion, but 316 holds up better in aggressive environments and keeps more strength at elevated temperatures. For coastal, wash-down, pool chemical or rooftop work, 316 is the one to specify.
2) How many 6-32 stainless hex nuts come in a jar, and can I buy fewer?
They ship as a jar of 100, and 100 count is the order minimum, so a jar is the smallest buy. The jar weighs 0.26 lbs. Metallics does make other sizes and quantities available by request.
3) What bolts or screws should I pair these stainless hex nuts with?
Pair them with stainless steel bolts or screws whose specified minimum tensile strength is equal to or less than the proof stress of the nut. Matching stainless to stainless also avoids the galvanic mismatch you get putting a stainless nut on a plain or galvanized fastener in a wet location.
4) Are these hex nuts Buy American and ARRA compliant for a government or institutional job?
Metallics lists the JSN103316SS as both Buy American compliant and ARRA compliant. Country of origin is China. Facility and government procurement buyers working to those clauses should use the compliance flags as the manufacturer states them.
5) Is the JSN103316SS a standard-pattern hex nut or a thin jam nut?
Standard pattern. Thickness is 0.875 times the nominal nut size and width across the flats is 1.5 times nominal, which is the regular hex nut proportion under ANSI/ASME B18.2.2, not a jam nut. If you need a thinner nut to lock against another, that's a different part.
6) How hard are these stainless nuts, and will they gall on stainless screws?
Hardness runs Rockwell B95 to C32. The nut body is an austenitic stainless alloy, which is why torque needs to go on steadily rather than fast and dry: stainless on stainless can gall if it is run down with an impact driver. Thread it by hand or at low speed and seat it with a 5/16 driver.
